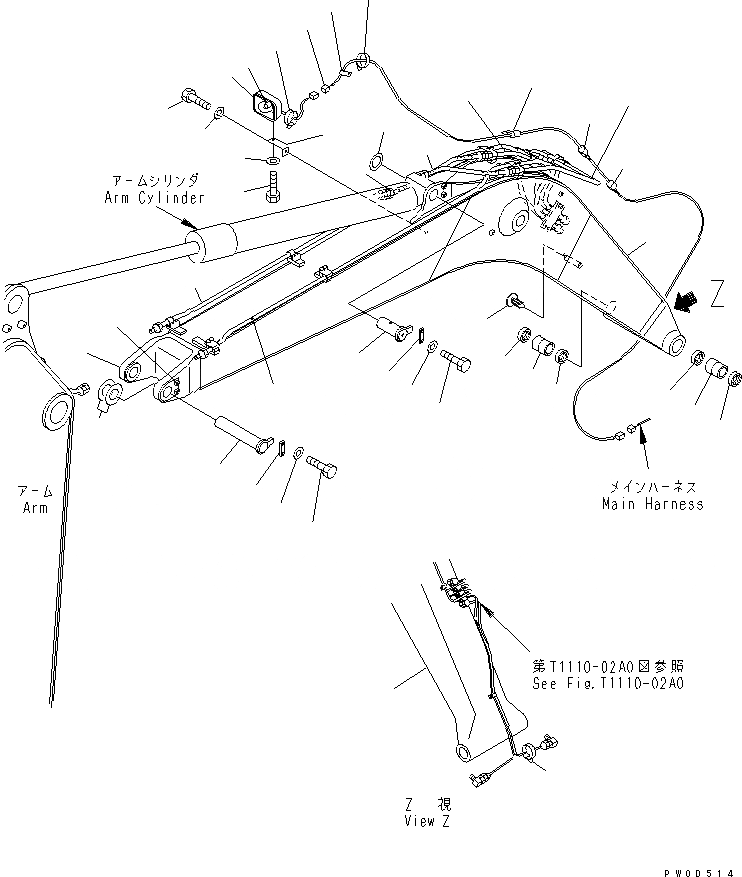

Запчасти Komatsu PC138USLC-2 СТРЕЛА (СТРЕЛА¤РАБОЧ. ОСВЕЩЕНИЕ И ПАЛЕЦ) (YELНИЗ.) РАБОЧЕЕ ОБОРУДОВАНИЕ

|$1

22B-70-00110SA

BOOM ASS'Y

1

BOOM

|$4

22B-70-00220

BRACKET ASS'Y

2A

BRACKET

2B

203-46-41130

SEAT

2

203-70-66110

BUSHING

3

07145-00070

SEAL,DUST

4

20T-54-74510

CAP

5

07145-00070

SEAL,DUST

6

22B-06-11690

WORK LAMP ASS'Y

7

421-06-23330

BULB, 70W

8

203-06-56410

BRACKET

9

01010-81225

BOLT

10

01643-31232

WASHER

11

22B-06-11342

WIRING HARNESS

12

04434-51012

CLIP

13

08034-20834

BAND

14

08034-30521

BAND

15

01010-81020

BOLT

16

01643-31032

WASHER

17

22B-70-15220SA

PIN

18

21W-70-11310SA

PLATE (YELLOW)

19

01010-81230

BOLT

20

01643-31232

WASHER

21

20U-70-31340

SPACER, 1.0MM

21

20U-70-31330

SPACER, 0.5MM

22

203-70-42121SA

PIN

23

21W-70-11310SA

PLATE (YELLOW)

24

01010-81230

BOLT

25

01643-31232

WASHER

26

21Y-70-14830

SPACER, 1.0MM

27

22B-62-15141

TUBE

28

22B-62-15131

TUBE

29

07096-00507

HOSE

30

203-62-61750

HOSE

31

22B-62-15121

TUBE

32

21Y-70-15460SA

TUBE
