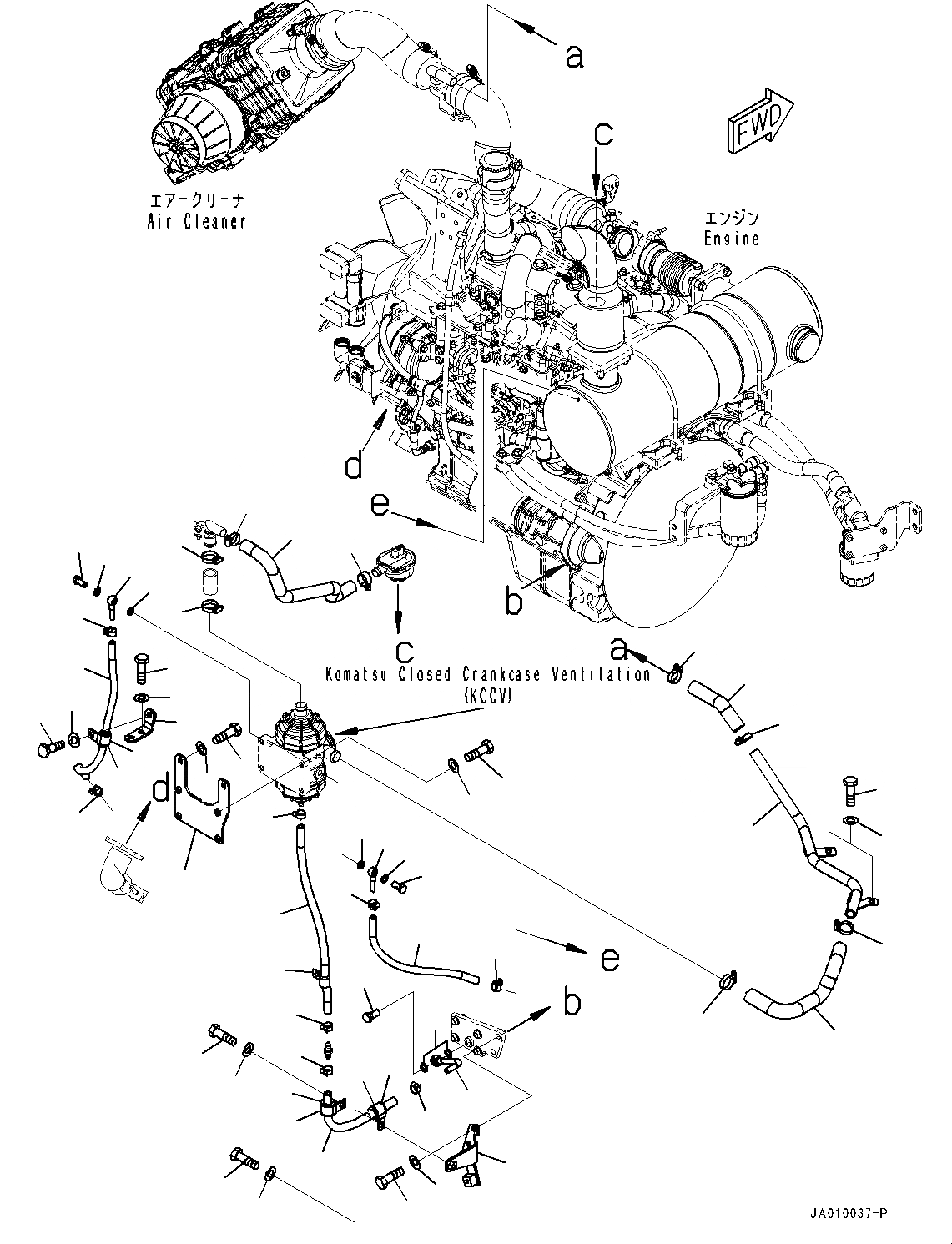

Запчасти Komatsu PC138USLC-10 ВОЗДУХООЧИСТИТЕЛЬ КОМПОНЕНТЫ, KOMATSU ЗАКРЫТ.D CRANKКОРПУС ВЕНТИЛЯТОРILATION (KCCV) ТРУБЫ (№-) ВОЗДУХООЧИСТИТЕЛЬ КОМПОНЕНТЫ

1

22B-01-31711

Bracket

2

01010-80835

Bolt

3

01643-30823

Washer

4

01010-81025

Bolt

5

01643-31032

Washer

6

22B-01-31260

Clamp

7

22B-01-31721

Hose

8

07281-00289

Clamp

9

22B-01-31260

Clamp

10

22B-01-31731

Hose

11

22B-01-31260

Clamp

12

22B-01-31741

Tube

13

01010-81020

Bolt

14

01643-31032

Washer

15

22B-01-31751

Hose

16

22B-01-31260

Clamp

17

22B-01-31761

Hose

18

11Y-09-11140

Clip

19

04434-51610

Clip

20

22B-01-31790

Hose

21

11Y-09-11140

Clip

22

04434-52310

Clip

23

2A5-01-11580

Cushion

24

01010-81020

Bolt

25

01643-31032

Washer

26

22B-01-31781

Bracket

27

01010-81030

Bolt

28

01643-31032

Washer

29

22B-01-31771

Tube

30

07206-31014

Bolt, Joint

31

07005-01412

Seal, Washer

32

22B-01-31410

Hose

33

07281-00167

Clamp

34

6215-65-7830

Joint

35

07206-30812

Bolt, Joint

36

07005-01212

Seal, Washer

37

22B-01-31420

Hose

38

07281-00167

Clamp

39

04434-51910

Clip

40

07095-40213

Cushion

41

01010-81025

Bolt

42

01643-31032

Washer

43

22B-01-31430

Bracket

44

01010-81020

Bolt

45

01643-31032

Washer
