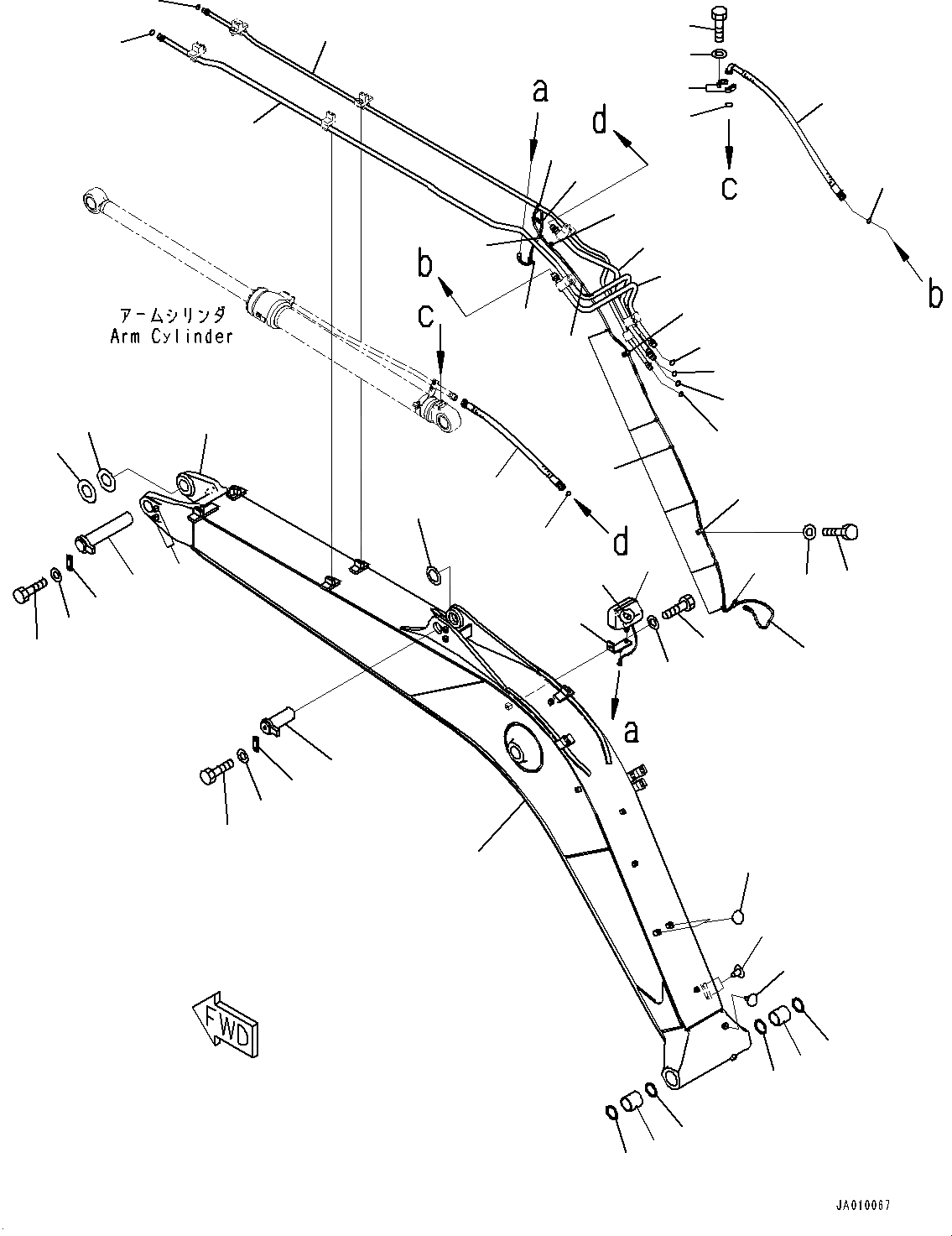

Запчасти Komatsu PC138USLC-10 СТРЕЛА, СТРЕЛА И ЛАМПА РАБОЧ. ОСВЕЩЕНИЯ (№-) СТРЕЛА, MM , С -ДОПОЛН. АКТУАТОР ТРУБЫ

|$0

22B-70-00451

Boom Assembly

1

Boom

1

22B-70-00220

Bracket Assembly

2

Bracket

3

203-46-41130

Seat

4

22B-70-23610

Bushing

5

22B-70-12230

Seal, Dust

6

20T-54-74510

Cap

7

21X-54-32350

Cap

8

22B-70-12230

Seal, Dust

9

20Y-06-43230

Working Lamp Assembly

10

421-06-23330

Bulb, 70watt

11

22B-70-21970

Bracket

12

01010-81225

Bolt

13

01643-31232

Washer

14

22B-06-21320

Wiring Harness

15

04434-51012

Clip

16

08034-30521

Band

17

01010-81020

Bolt

18

01643-31032

Washer

19

22B-70-22550

Pin

20

22B-70-22570

Plate

21

01010-81235

Bolt

22

01643-31232

Washer

23

20U-70-31340

Spacer, T=1.0mm

24

20U-70-31330

Spacer, T=0.5mm

25

203-70-42121

Pin

26

205-70-66580

Plate

27

01010-81230

Bolt

28

01643-31232

Washer

29

21Y-70-14830

Spacer, T=1.0mm

30

22B-70-31840

Tube

31

02896-11018

O-ring

32

22B-70-31830

Tube

33

02896-11018

O-ring

34

203-62-17190

Hose

35

22B-62-31510

Hose

36

07000-13025

O-ring

37

07371-30640

Flange, Split

38

07372-21035

Bolt

39

01643-51032

Washer

40

22B-70-31820

Tube

41

02896-11015

O-ring

42

22B-70-31810

Tube

43

02896-11018

O-ring
