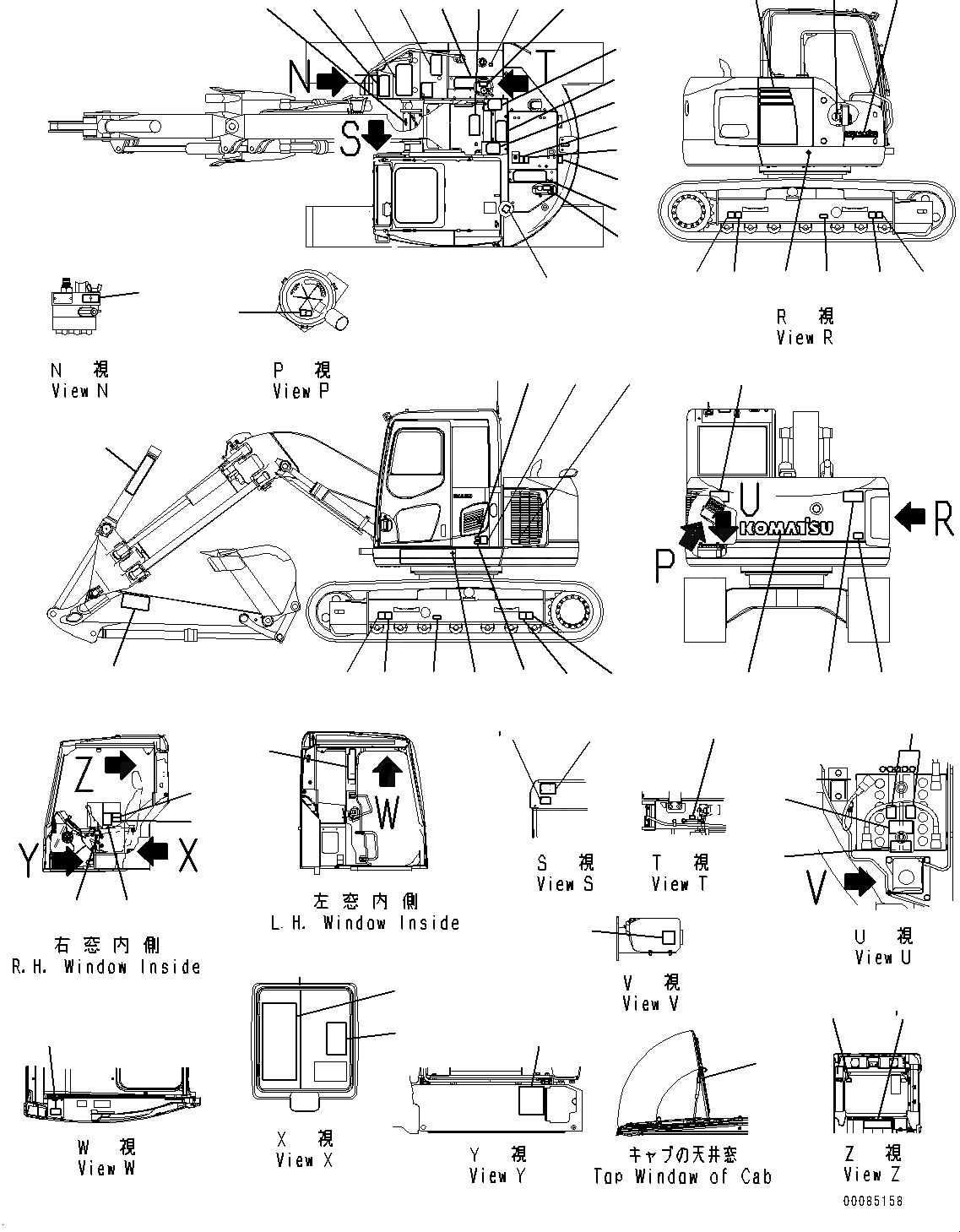

Запчасти Komatsu PC138US-8 МАРКИРОВКА (№-) МАРКИРОВКА, АНГЛ., С KUK OFFSET СТРЕЛА

1

22B-00-21860

Plate, Warning

1

Plate, Offset Control

1

Plate, Safety Warning Of Moving Machine

1

Plate, Safety Lock The Safety Lock Lever

1

Sheet, Operating Pattern

2

22B-00-21220

Plate, Warning, Warning

2

Plate, Safety Hazardous Voltage Warning

2

Plate, Safety Lock The Safety Lock Lever

2

Plate, Safety Read Operation Manual

3

09803-A0481

Plate, Warning, Window Lock

4

09963-A1640

Tag, Danger, Do Not Operate, Do Not Operate

5

206-00-K1010

Plate, Emergency Pump Drive and Swing Parking Brake Cancel, Switch

6

22B-00-21640

Plate, Fuse

7

20Y-00-K2380

Plate, Recommended Lubricant

8

22U-00-11910

Plate, Safety, No Safety No Passenger

9

22U-00-11920

Plate, Caution, Safety Falling Objects

10

22B-00-21280

Plate, Lock For Front Lower Window

11

22B-00-21890

Oil Chart, Lubricating Standard Chart

12

09659-A057B

Plate, Warning, Explosion Hazard, Safety Gas Spring

13

09133-A2321

Plate, Danger, Keep Off Swing Area

14

09134-A1681

Plate, Danger, Keep Off Working Area

15

09653-A0481

Plate, Warning, High Temperature

16

09653-A0481

Plate, Warning, High Temperature

17

09669-0000E

Plate, Symbol, Fuel Filler

18

04418-13060

Screw

19

09601-00001

Plate, Name (Limited Supply)

20

09659-A057B

Plate, Warning, Explosion Hazard, Safety Accumulator Warning

21

203-00-31120

Plate, Instruction, Instruction Hydraulic Oil Gauge

22

21U-98-31160

Plate, Mark, Location Of Center Of Gravity, Center Of Gravity

23

09960-00801

Mark, Lift Point

24

09960-00802

Mark, Tie Down Point

25

21Y-00-31190

Plate, Hook Position, Illustration Of Slinging

26

20E-00-K1120

Plate,Air Cleaner Element Mainte.

27

09667-A0481

Plate, Caution, Rotating Object

28

09805-C0481

Plate, Caution, Do not Get On

29

09805-A0481

Plate, Caution, Do not Approach

30

09808-A0881

Plate, Warning, Battery Cables

31

20U-98-22651

Decal, Danger, Battery, Explosion Or Burning

32

09664-60000

Plate, Danger, Battery

33

09657-A0881

Plate, Warning, Track Adjustment

34

22B-00-11340

Decal, WasherTank

35

14X-98-35181

Plate, Reflector

36

20E-00-K1690

Plate, Anti-Freeze

37

20E-00-K1710

Plate, Quality Certified Mark

38

09696-40100

Plate, Noise Level, for EU, EU Dynamic Noise

39

09696-50072

Plate, Noise Level, for EU, Operator's Noise

40

11Y-98-31130

Plate, Symbol, Ecot3

41

09642-13000

Plate, Service Instruction, Engine Coolant AF-NAC, Instruction Coolant

42

09697-00001

Plate, Battery Disconnect Switch

43

22B-54-22460

Antiskid Sheet, Antiskid

44

22B-54-22470

Antiskid Sheet, Antiskid

45

22B-54-22480

Antiskid Sheet, Antiskid

46

22B-54-22490

Sheet, Antiskid

47

22B-54-24740

Antiskid Sheet, Antiskid

48

22B-00-21160

Mark, Model Logo

49

09690-P0500

Plate, Komatsu Logo

50

09690-M0063

Plate, Komatsu Logo

51

09690-P0450

Plate, Komatsu Logo

52

09690-P1120

Plate, Komatsu Logo
