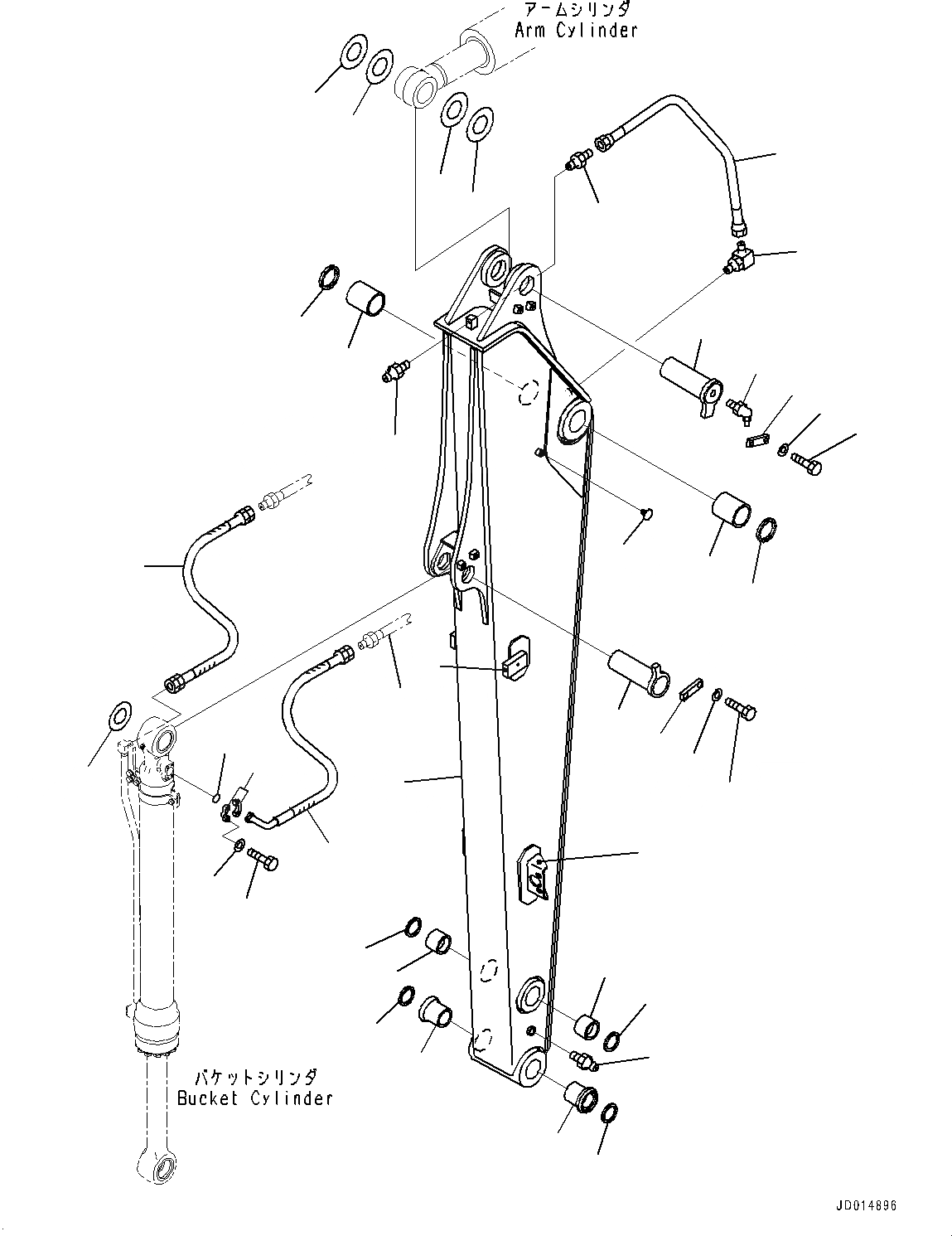

Запчасти Komatsu PC138US-8 РУКОЯТЬ, РУКОЯТЬ И ЦИЛИНДР КОВША ТРУБЫ (№-) РУКОЯТЬ, MM, С -ДОПОЛН. АКТУАТОР ТРУБЫ

|$0

22B-70-00272

Arm Assembly

1

Arm

2

202-973-6321

Bracket,Welded

3

202-973-6331

Bracket,Welded

4

203-70-72210

Bushing

5

203-70-42182

Bushing

6

22B-70-23670

Bushing

7

07020-00000

Fitting, Grease

8

20T-54-74510

Cap

9

22B-70-12230

Seal, Dust

10

21W-70-41440

Seal, Dust

11

203-70-42121

Pin

12

205-70-66580

Plate

13

01010-81230

Bolt

14

01643-31232

Washer

15

21Y-70-14790

Spacer, T=1.0mm

16

21Y-70-14820

Spacer, T=2.0mm

17

07020-00675

Fitting, Grease

18

202-70-52121

Pin

19

21Y-70-14710

Spacer, T=1.0mm

20

205-70-66580

Plate

21

01010-81230

Bolt

22

01643-31232

Washer

23

22B-62-24140

Hose

24

02756-20413

Hose, Face Seal Type

25

07371-30500

Flange, Split

26

01643-50823

Washer

27

01010-80830

Bolt

28

07000-13022

O-ring

29

22B-70-15210

Tube

30

20Y-70-11540

Connector

31

07020-00000

Fitting, Grease

32

20Y-70-11590

Elbow

33

22B-70-21810

Tube

|$34

22B-70-21810

Tube

|$35

22B-70-21810

Tube

|$36

22B-70-21810

Tube

|$37

22B-70-21810

Tube

|$38

22B-70-21810

Tube
