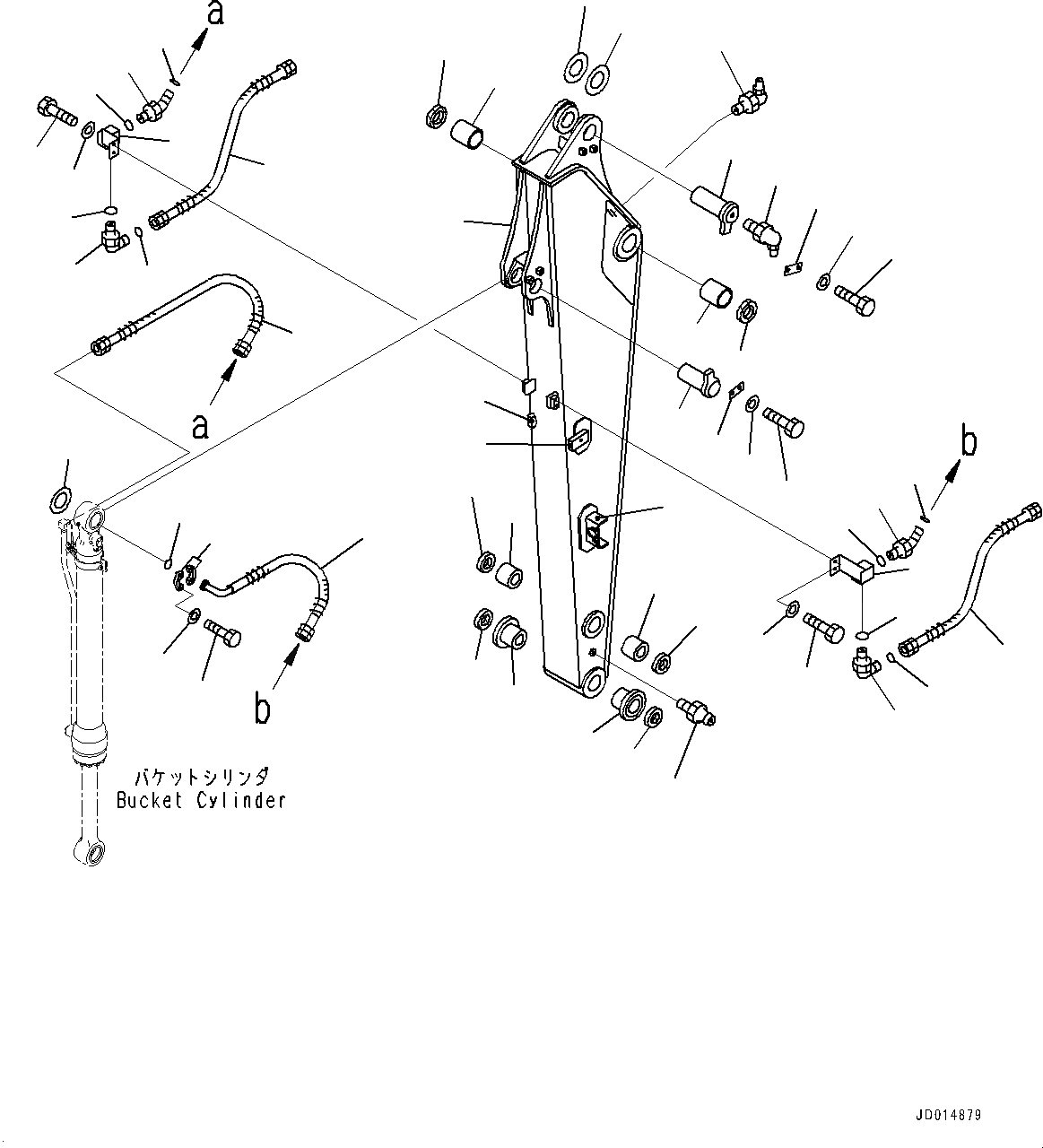

Запчасти Komatsu PC138US-8 РУКОЯТЬ, РУКОЯТЬ И ЦИЛИНДР КОВША ТРУБЫ (№-) РУКОЯТЬ, MM, С -ДОПОЛН. АКТУАТОР ТРУБЫ, ДЛЯ СТРАН ЕС

|$0

22B-944-0042

Arm Assembly

|$1

22B-944-0041

Arm Assembly

1

Arm

1

Arm

2

202-973-6321

Bracket,Welded

3

202-973-6331

Bracket,Welded

4

22B-973-2130

Bracket,Welded

5

203-70-72210

Bushing

6

203-70-42182

Bushing

7

22B-70-23670

Bushing

8

07020-00900

Fitting, Grease

9

07020-00000

Fitting, Grease

10

22B-70-12230

Seal, Dust

11

21W-70-41440

Seal, Dust

12

203-70-42121

Pin

13

205-70-66580

Plate

14

01010-81230

Bolt

15

01643-31232

Washer

16

21Y-70-14790

Spacer, T=1.0mm

17

21Y-70-14820

Spacer, T=2.0mm

18

07020-00675

Fitting, Grease

19

202-70-52121

Pin

20

21Y-70-14710

Spacer, T=1.0mm

21

205-70-66580

Plate

22

01010-81230

Bolt

23

01643-31232

Washer

24

02756-20513

Hose, Face Seal Type

25

02756-20413

Hose, Face Seal Type

26

203-943-5620

Elbow,L.H.

27

203-943-5130

Elbow,R.H.

28

01010-81020

Bolt

29

01643-31032

Washer

30

02782-10422

Elbow

31

02783-10422

Elbow

32

02896-11012

O-ring

33

02783-10522

Elbow

34

02782-10522

Elbow

35

02896-11015

O-ring

36

07002-12034

O-ring

37

07002-12434

O-ring

38

02756-20407

Hose, Face Seal Type

39

22B-62-24440

Hose

40

07371-30500

Flange, Split

41

01010-80830

Bolt

42

01643-50823

Washer

43

07000-13022

O-ring
