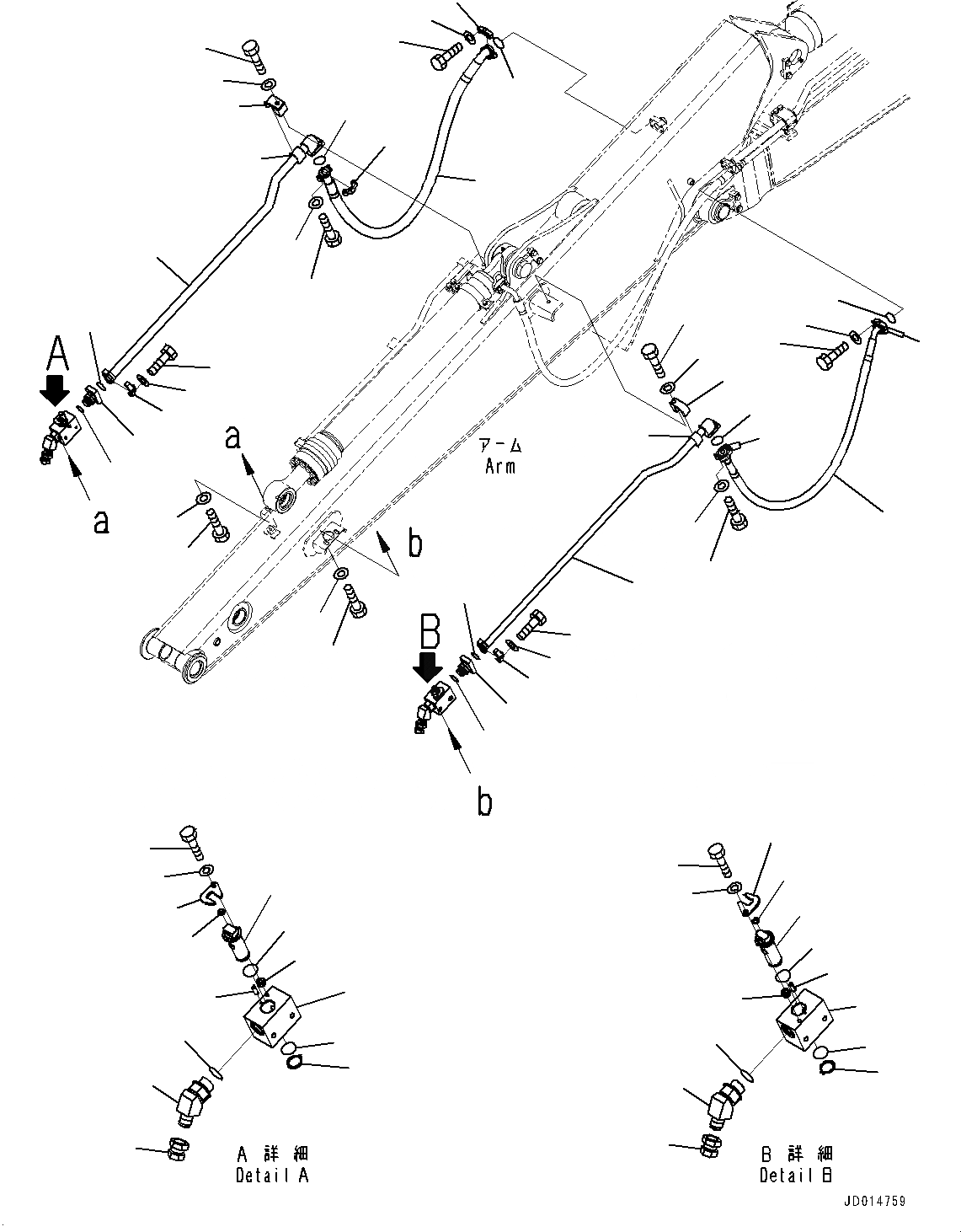

Запчасти Komatsu PC138US-8 РУКОЯТЬ, ДОПОЛН. ГИДРОЛИНИЯ (№-) РУКОЯТЬ, MM, С -ДОПОЛН. АКТУАТОР ТРУБЫ, ДЛЯ СТРАН ЕС

1

22B-70-23710

Tube,L.H.

2

22B-62-28860

Tube,R.H.

3

07097-20615

Hose, Flange Type

4

07371-30640

Flange, Split

5

07372-21035

Bolt

6

01643-51032

Washer

7

07000-13025

O-ring

8

22B-62-19410

Clamp

9

203-62-43380

Cushion

10

01010-81275

Bolt

11

01643-31232

Washer

12

07371-30640

Flange, Split

13

07372-21035

Bolt

14

01643-51032

Washer

15

07000-13025

O-ring

16

201-973-6810

Nipple

17

07002-13334

O-ring

17

203-973-5803

Valve Assembly

18

07000-13031

O-ring

19

04025-00412

Pin, Spring

20

04064-03015

Ring, Snap, for Shaft Side

21

Body

22

Shaft

23

07000-13025

O-ring

24

203-973-6610

Plate

25

01010-80825

Bolt

26

01643-30823

Washer

27

21T-72-14930

Boss

28

01010-81025

Bolt

29

01643-31032

Washer

30

07002-13334

O-ring

31

22B-973-2150

Elbow

32

22B-973-2120

Plug

33

203-00-56640

Plate, Arrow Mark

34

07097-21015

Hose, Flange Type

35

07371-31049

Flange, Split

36

07372-21035

Bolt

37

01643-51032

Washer

38

07000-13032

O-ring

39

22B-62-28870

Clamp

40

22B-62-28880

Cushion

41

01010-81280

Bolt

42

01643-31232

Washer

43

22B-62-28840

Joint

43

22B-62-28850

Valve Assembly

44

07000-13031

O-ring

45

04025-00412

Pin, Spring

46

04064-03015

Ring, Snap, for Shaft Side

47

Body

48

Shaft

49

07000-13025

O-ring

50

203-973-6610

Plate

51

01010-80825

Bolt

52

01643-30823

Washer

53

21T-72-14930

Boss
