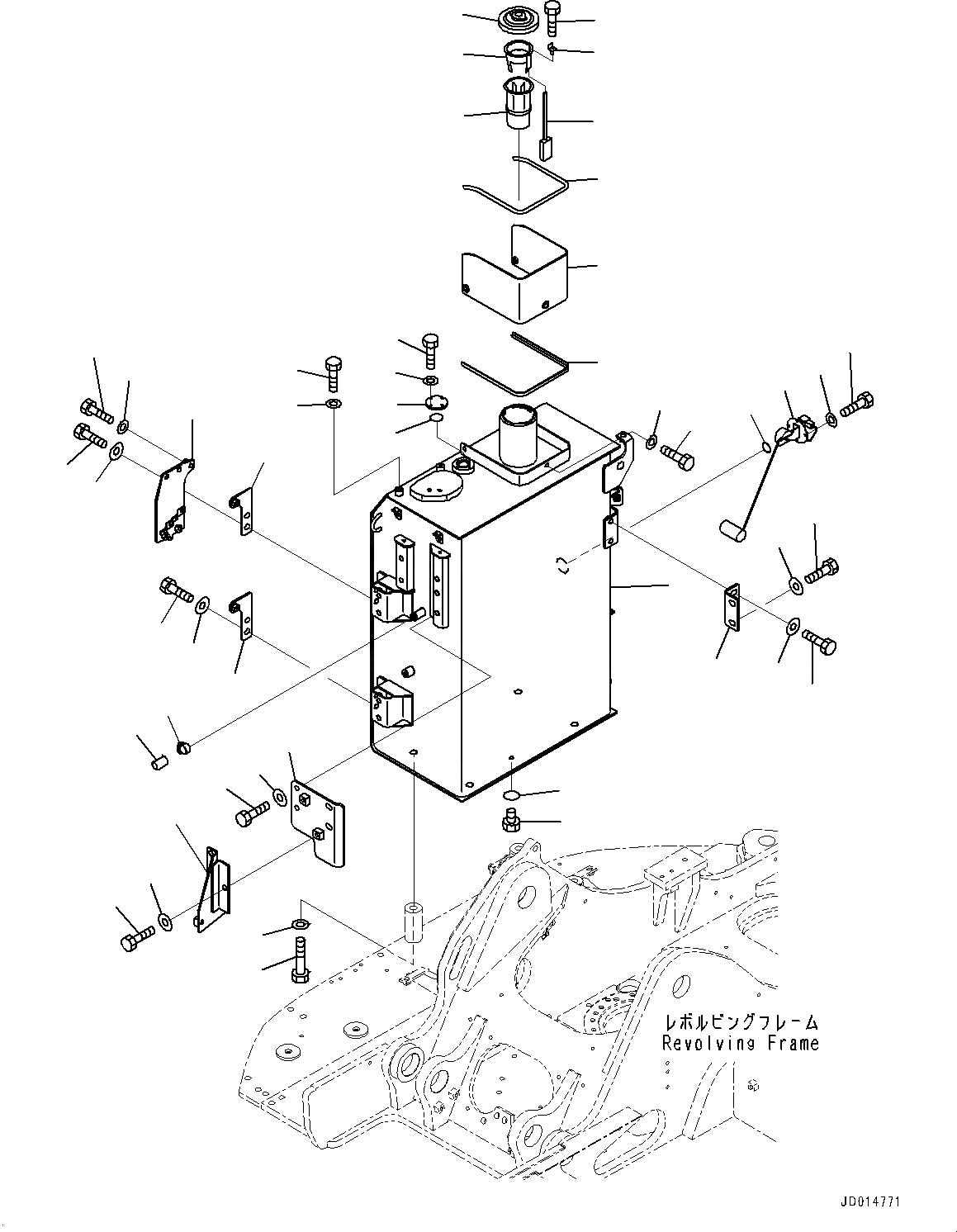

Запчасти Komatsu PC138US-8 ТОПЛИВН. БАК. (№-) ТОПЛИВН. БАК., ДЛЯ СТРАН ЕС ARRANGEMENT СТУПЕНИ

1

22B-04-21710

Tank

|$1

22U-04-21241

Strainer Assembly

|$2

22U-04-21200

Float Assembly

2

DUMMY-M2L12

Screw

3

22U-04-21210

Guide

4

20Y-04-21580

Cap

5

22U-04-21220

Float

6

07056-18425

Strainer

7

20Y-04-11161

Cap

8

07040-11007

Plug

9

07002-11023

O-ring

10

22B-04-21131

Plate

11

01010-81230

Bolt

12

175-54-34170

Washer

13

22B-04-21490

Cap

14

07289-00035

Clamp

15

22B-04-21650

Cover

16

01010-81025

Bolt

17

01643-31032

Washer

18

22B-04-21660

Sheet

19

22B-04-21671

Seal

20

7861-92-5810

Sensor, Fuel Level

21

07000-13050

O-ring

22

01010-80610

Bolt

23

01643-30623

Washer

24

22B-04-21621

Plate

25

07000-13032

O-ring

26

01010-80616

Bolt

27

01643-30623

Washer

28

01010-81016

Bolt

29

01643-31032

Washer

30

01011-81645

Bolt

31

01643-31645

Washer

32

22B-04-11130

Plate

33

22B-04-21480

Plate

34

01010-81225

Bolt

35

01010-81230

Bolt

36

124-54-26540

Washer

37

22B-04-21470

Bracket

38

01010-81225

Bolt

39

01643-31232

Washer

40

22B-04-21690

Bracket

41

01010-81230

Bolt

42

01643-31232

Washer
