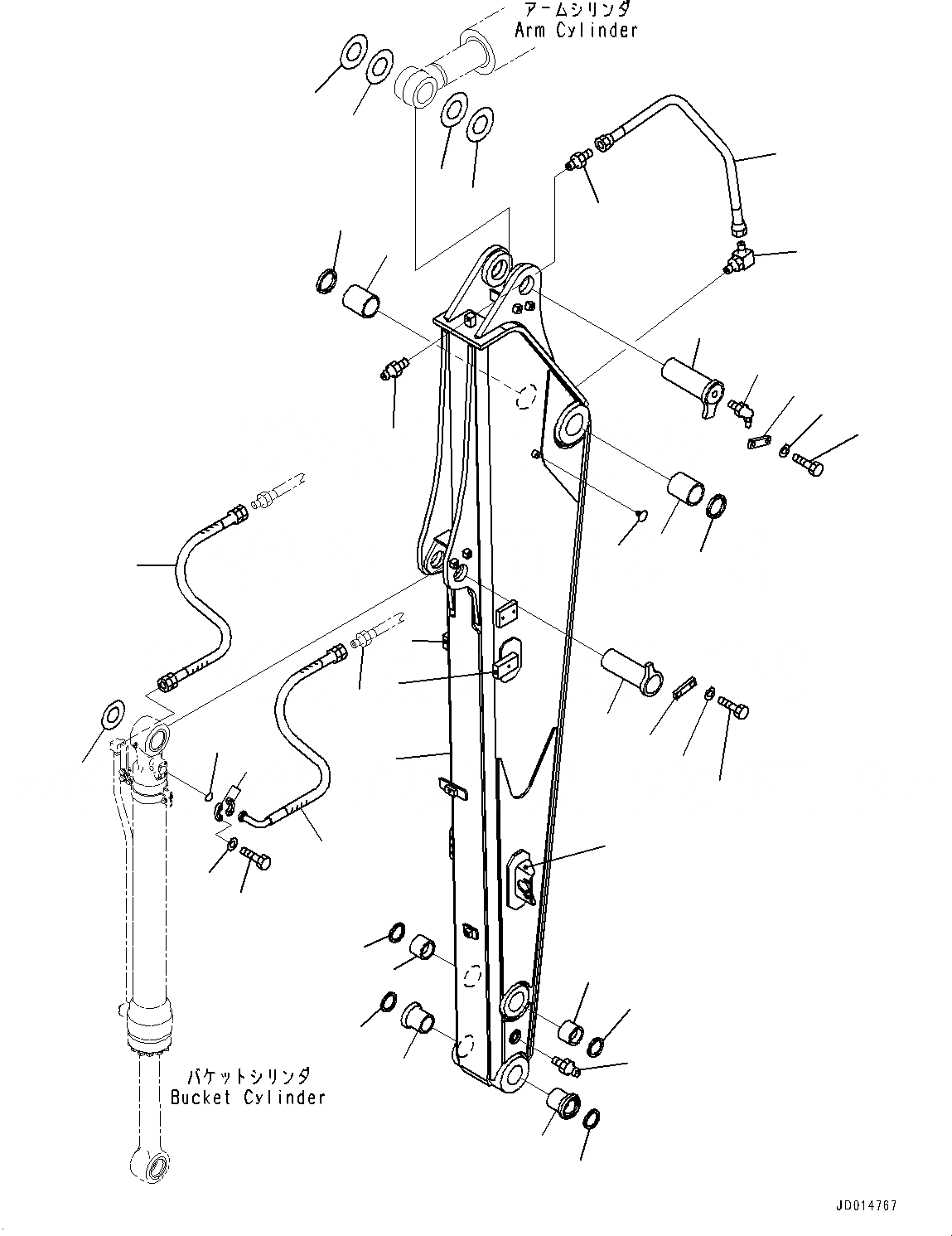

Запчасти Komatsu PC138US-8 РУКОЯТЬ, РУКОЯТЬ И ЦИЛИНДР КОВША ТРУБЫ (№-) РУКОЯТЬ, MM С -ДОПОЛН. АКТУАТОР ТРУБЫ, УСИЛ.ENED ТИП, ЕС ARRANGEMENT

|$0

22B-70-00301

Arm Assembly

1

Arm

2

202-973-6321

Bracket,Welded

3

202-973-6331

Bracket,Welded

4

22B-973-2130

Bracket,Welded

5

203-70-72210

Bushing

6

203-70-42182

Bushing

7

22B-70-23670

Bushing

8

07020-00000

Fitting, Grease

9

20T-54-74510

Cap

10

22B-70-12230

Seal, Dust

11

21W-70-41440

Seal, Dust

12

203-70-42121

Pin

13

205-70-66580

Plate

14

01010-81230

Bolt

15

01643-31232

Washer

16

21Y-70-14790

Spacer, T=1.0mm

17

21Y-70-14820

Spacer, T=2.0mm

18

07020-00675

Fitting, Grease

19

202-70-52121

Pin

20

21Y-70-14710

Spacer, T=1.0mm

21

205-70-66580

Plate

22

01010-81230

Bolt

23

01643-31232

Washer

24

22B-62-24140

Hose

25

02756-20413

Hose, Face Seal Type

26

07371-30500

Flange, Split

27

01643-50823

Washer

28

01010-80830

Bolt

29

07000-13022

O-ring

30

22B-70-15210

Tube

31

20Y-70-11540

Connector

32

07020-00000

Fitting, Grease

33

20Y-70-11590

Elbow

34

22B-70-21810

Tube

|$35

22B-70-21810

Tube
