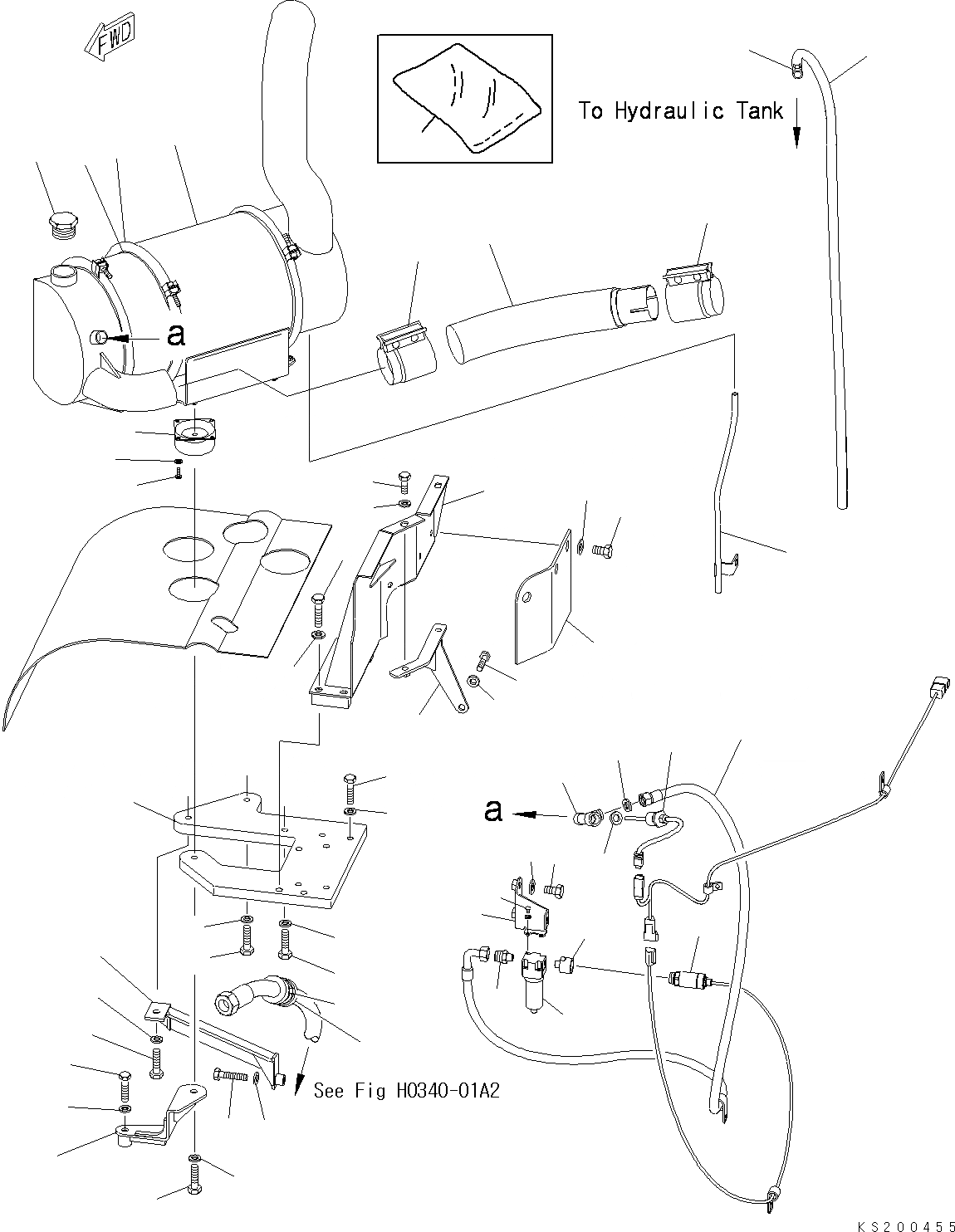

Запчасти Komatsu PC138US-8 DIESEL ЧАСТЬICULATE ФИЛЬТР. И КРЕПЛЕНИЕ B КОМПОНЕНТЫ ДВИГАТЕЛЯ

1

203-01-K1590

DIESEL PARTICULATE FILTER ASSY

2

203-01-K1480

GASKET

3

203-01-K1490

RING CLAMP

4

203-01-K1511

TUBE

5

20Y-01-K2060

MOUNT

6

01245-00616

SCREW

7

01643-70623

WASHER

8

203-01-K1570

CLAMP

9

20Y-01-K2050

PLUG

10

20Y-01-K2130

TEE

11

20Y-01-K2250

SEALING RINGS

12

20Y-01-K2161

HOSE

13

20Y-01-K2122

PRESSURE SENSOR

14

20Y-01-K2111

TEMPERATURE SENSOR

15

20Y-01-K2260

FILTER BAG

16

203-01-K1622

BRACKET

17

203-01-K1670

SHEET

18

01010-81020

BOLT

19

01643-31032

WASHER

20

203-01-K1533

PLATE

21

01010-81225

BOLT

22

01643-31032

WASHER

23

203-01-K1780

CLAMP

24

22B-01-K1050

TUBE

25

203-01-K1551

BRACKET

26

01010-81050

BOLT

27

01643-31032

WASHER

28

203-01-K1581

BRACKET

29

01010-81060

BOLT

30

01643-31032

WASHER

31

203-01-K1720

TUBE

32

203-01-K1760

BRACKET

33

01010-81030

BOLT

34

01643-31032

WASHER

35

01010-81045

BOLT

36

01643-31032

WASHER

37

01010-81040

BOLT

38

01643-31032

WASHER

39

01010-81045

BOLT

40

01643-31032

WASHER

41

01010-81050

BOLT

42

01643-31032

WASHER

43

07095-00526

CUSHION

44

08034-20519

BAND

45

07285-00200

CLIP

46

207-01-K1650

WATER SEPERATOR

47

207-01-K1080

FITTING

48

207-01-K1090

FITTING

49

01023-10406

SCREW

50

20Y-01-K2291

BRACKET

51

01010-81225

BOLT

52

01643-31032

WASHER
