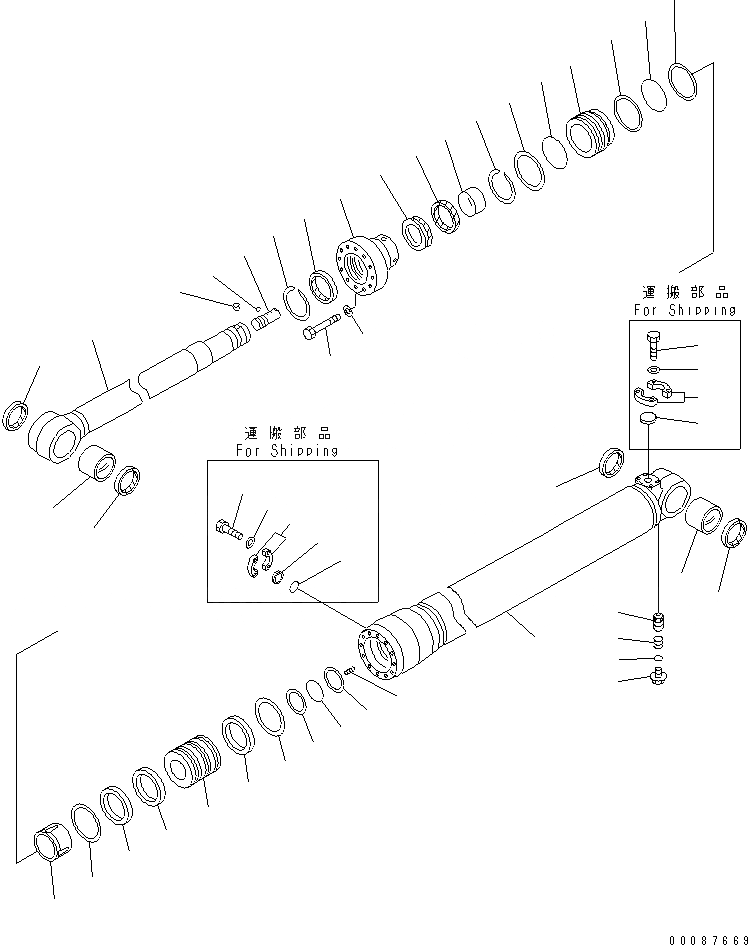

Запчасти Komatsu PC138US-8 ЦИЛИНДР РУКОЯТИ(ВНУТР. ЧАСТИ) (РУКОЯТЬ CRANE СПЕЦ-Я.) (№8-) Y ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

G1

707-01-0M291

CYLINDER GROUP, (FINAL COATING)

|1

707-01-0AF31

CYLINDER ASSEMBLY, (FINAL COATING)

|1

707-01-0L681

CYLINDER ASSEMBLY, ARM

1

707-13-11210

CYLINDER, ARM

2

707-58-75840

ROD

3

22B-70-23620

BUSHING

4

07145-00070

SEAL, DUST (KIT)

5

22B-70-23620

BUSHING

6

07145-00070

SEAL, DUST (KIT)

7

707-71-32460

HEAD

8

07000-15100

O-RING (KIT)

9

707-71-70810

PLUNGER

10

707-35-31010

RING, BACK-UP (KIT)

11

707-71-80290

PLUNGER

12

04260-00635

BALL

13

707-71-91270

CAP

14

707-27-11650

HEAD, CYLINDER

15

144-63-94170

SEAL, DUST (KIT)

16

07179-13089

RING, SNAP

17

707-51-75030

PACKING, ROD (KIT)

18

707-51-75650

RING, BUFFER (KIT)

19

07000-15100

O-RING (KIT)

20

707-52-90500

BUSHING

21

707-75-75110

RING, SNAP

22

01010-81670

BOLT

23

01643-51645

WASHER

24

707-35-31010

RING, BACK-UP (KIT)

25

721-36-11020

PISTON

26

707-44-11150

RING, PISTON (KIT)

27

707-39-11150

RING, WEAR (KIT)

28

707-44-11911

RING

29

01310-01216

SCREW

30

07000-15070

O-RING (KIT)

31

707-35-30700

RING, BACK-UP (KIT)

32

707-83-13010

VALVE

33

07750-01628

SPRING

34

07002-12034

O-RING (KIT)

35

707-87-14070

PLUG

36

07378-10500

HEAD

37

07000-13022

O-RING

38

07371-30500

FLANGE, SPLIT

39

01010-80830

BOLT

40

01643-30823

WASHER

41

07372-21035

BOLT

42

01643-51032

WASHER

43

707-88-33030

CAP

44

07371-30640

FLANGE, SPLIT

K

707-99-38820

SERVICE KIT, ARM CYLINDER
