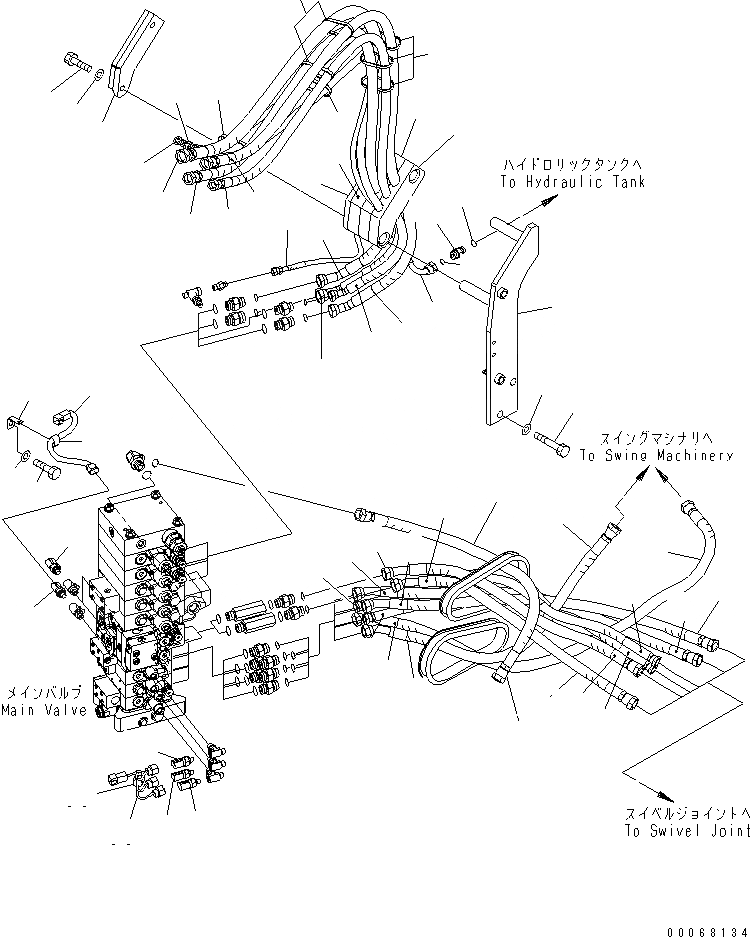

Запчасти Komatsu PC138US-8 ГИДРОЛИНИЯ РУКОЯТИ И КОВША(/) (ДЛЯ -НАВЕСН. ОБОРУД И ОТВАЛ С РУКОЯТЬ FALL DOWN PREВЕНТИЛЯТОРION КЛАПАН)(ДЛЯ ЕС)(№-) ГИДРАВЛИКА

1

22B-62-23492

HOSE, 1900MM

1

21U-62-34740

BAND, ORANGE

2

22B-62-23512

HOSE, 1990MM

2

21U-62-34730

BAND, GREEN

3

22B-62-23522

HOSE, 1740MM

3

21U-62-34760

BAND, RED

4

22B-62-23532

HOSE, 1830MM

4

21U-62-34750

BAND, BLUE

5

22B-54-22411

BRACKET

6

01010-81655

BOLT

7

01643-31645

WASHER

8

08034-20834

BAND

9

22B-62-28650

CUSHION

10

22B-62-28660

CUSHION

11

22B-62-28960

CUSHION

12

22B-62-22260

CUSHION

13

01010-81235

BOLT

14

01643-31232

WASHER

15

22B-62-21321

PLATE

16

22B-62-23772

HOSE, 1950MM

17

22B-62-23782

HOSE, 2120MM

18

02781-00420

UNION

19

07002-11823

O-RING

20

02896-11012

O-RING

21

22B-62-23971

HOSE, 870MM

21

21U-62-34720

BAND, BLACK

22

22B-62-23361

HOSE, 1310MM

22

21U-62-34780

BAND, BROWN

23

22B-62-23351

HOSE, 860MM

23

21U-62-34770

BAND, WHITE

24

22B-62-23331

HOSE, 950MM

24

21U-62-34740

BAND, ORANGE

24

21U-62-34710

BAND, YELLOW

25

22B-62-23331

HOSE, 950MM

25

21U-62-34780

BAND, BROWN

25

21U-62-34710

BAND, YELLOW

26

22B-62-23411

HOSE, 790MM

26

21U-62-34720

BAND, BLACK

26

21U-62-34750

BAND, BLUE

27

22B-62-23341

HOSE, 810MM

27

21U-62-34730

BAND, GREEN

27

21U-62-34750

BAND, BLUE

28

22B-62-22940

HOSE, 950MM

28

21U-62-34750

BAND, BLUE

28

21U-62-34710

BAND, YELLOW

29

22B-62-22940

HOSE, 950MM

29

21U-62-34760

BAND, RED

29

21U-62-34720

BAND, BLACK

30

22B-06-21490

WIRING HARNESS

31

22B-06-21560

WIRING HARNESS

32

7861-93-1840

SENSOR

33

08211-00720

CLIP

34

08057-14012

CLIP

35

01010-81025

BOLT

36

01643-31032

WASHER
