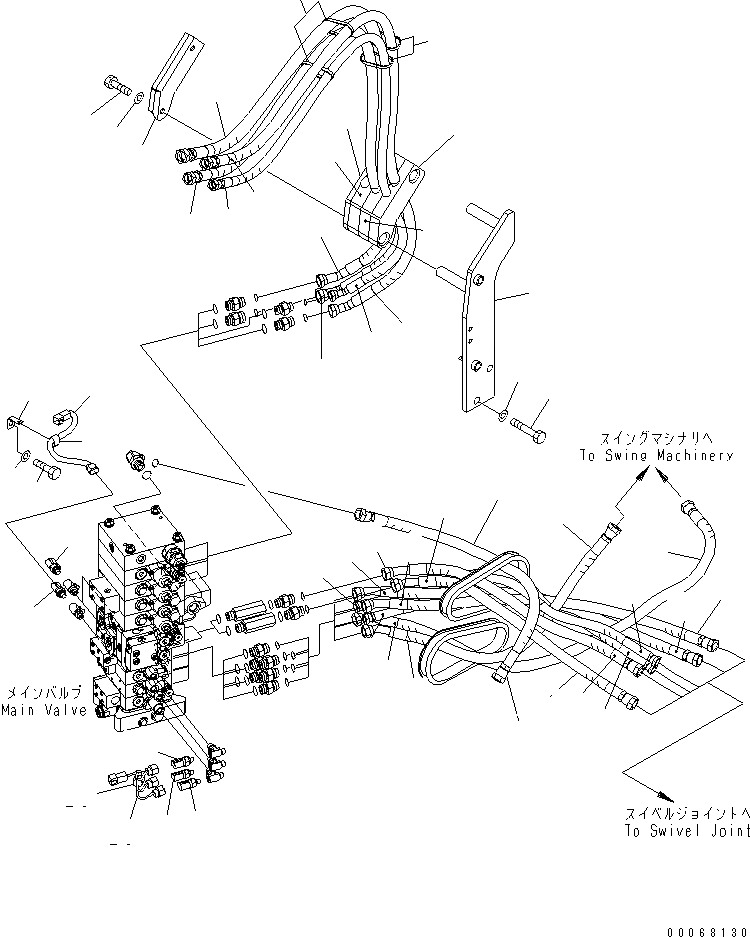

Запчасти Komatsu PC138US-8 ГИДРОЛИНИЯ РУКОЯТИ И КОВША(/) (ДЛЯ ОТВАЛ) (ДЛЯ ЕС)(№-) ГИДРАВЛИКА

1

22B-62-23492

HOSE, 1900MM

1

21U-62-34740

BAND, ORANGE

2

22B-62-23512

HOSE, 1990MM

2

21U-62-34730

BAND, GREEN

3

22B-62-23522

HOSE, 1740MM

3

21U-62-34760

BAND, RED

4

22B-62-23532

HOSE, 1830MM

4

21U-62-34750

BAND, BLUE

5

22B-54-22411

BRACKET

6

01010-81655

BOLT

7

01643-31645

WASHER

8

08034-20834

BAND

9

22B-62-28650

CUSHION

10

22B-62-28660

CUSHION

11

22B-62-28670

CUSHION

12

22B-62-22290

CUSHION

13

01010-81235

BOLT

14

01643-31232

WASHER

15

22B-62-21321

PLATE

16

22B-62-23971

HOSE, 870MM

16

21U-62-34720

BAND, BLACK

17

22B-62-23361

HOSE, 1310MM

17

21U-62-34780

BAND, BROWN

18

22B-62-23351

HOSE, 860MM

18

21U-62-34770

BAND, WHITE

19

22B-62-23331

HOSE, 950MM

19

21U-62-34740

BAND, ORANGE

19

21U-62-34710

BAND, YELLOW

20

22B-62-23331

HOSE, 950MM

20

21U-62-34780

BAND, BROWN

20

21U-62-34710

BAND, YELLOW

21

22B-62-23411

HOSE, 790MM

21

21U-62-34720

BAND, BLACK

21

21U-62-34750

BAND, BLUE

22

22B-62-23341

HOSE, 810MM

22

21U-62-34730

BAND, GREEN

22

21U-62-34750

BAND, BLUE

23

22B-62-22940

HOSE, 950MM

23

21U-62-34750

BAND, BLUE

23

21U-62-34710

BAND, YELLOW

24

22B-62-22940

HOSE, 950MM

24

21U-62-34760

BAND, RED

24

21U-62-34720

BAND, BLACK

25

22B-06-21490

WIRING HARNESS

26

22B-06-21560

WIRING HARNESS

27

7861-93-1840

SENSOR

28

08211-00720

CLIP

29

08057-14012

CLIP

30

01010-81025

BOLT

31

01643-31032

WASHER
