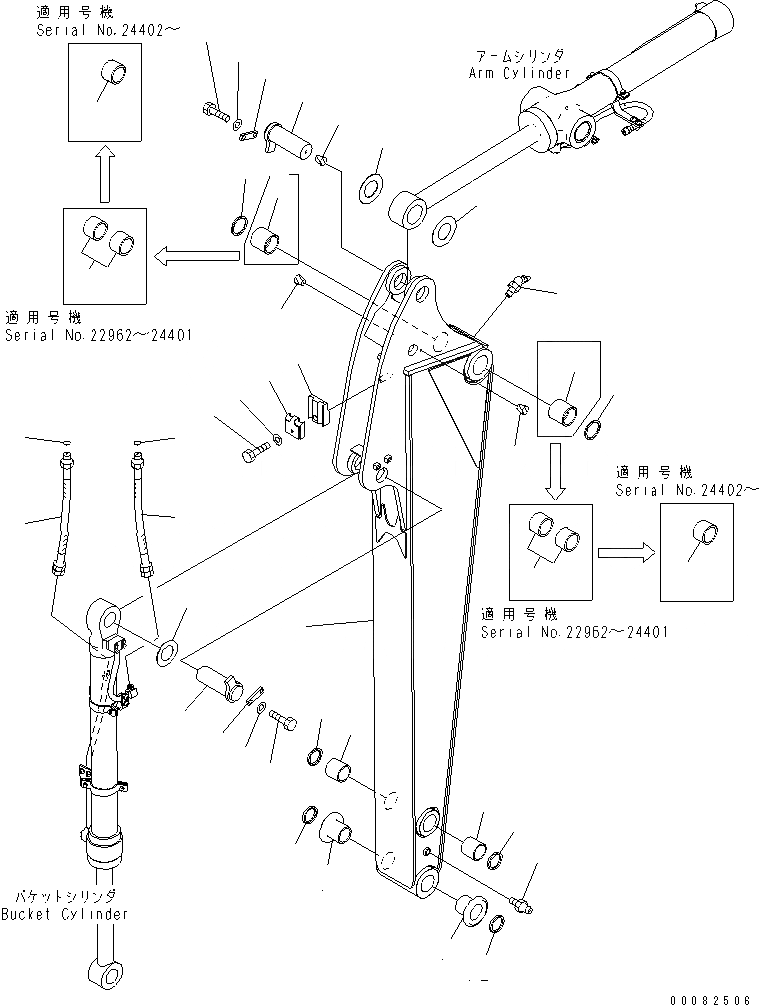

Запчасти Komatsu PC138US-8 УДЛИНН. РУКОЯТЬ (KUK OFFSET СТРЕЛА СПЕЦ-Я.)(№-) РАБОЧЕЕ ОБОРУДОВАНИЕ

|$3

22B-943-0072

ARM ASS'Y

|$4

22B-943-0071

ARM ASS'Y

|$5

22B-943-0070

ARM ASS'Y

1

ARM

2

203-70-72210

BUSHING

2

22B-70-23630

BUSHING

2

203-70-56130

BUSHING

3

22B-70-23670

BUSHING

3

203-70-56150

BUSHING

4

203-70-42182

BUSHING

5

07020-00675

FITTING,GREASE

6

07020-00000

FITTING,GREASE

7

21Y-943-3120

HOSE, 330MM

8

02896-11012

O-RING

9

21Y-943-3130

HOSE, 330MM

10

02896-11015

O-RING

11

22B-70-12230

SEAL

11

07145-00070

SEAL

12

21W-70-41440

SEAL

13

21W-70-11190

PIN

14

205-70-66580

PLATE

15

01010-81230

BOLT

16

01643-31232

WASHER

17

21Y-70-14790

SPACER, 1.0MM

18

21Y-70-14820

SPACER, 2.0MM

19

07049-01215

PLUG

20

21Y-70-14180

PIN

21

21Y-70-14710

SPACER, 1.0MM

22

205-70-66580

PLATE

23

01010-81230

BOLT

24

01643-31232

WASHER

25

07049-01012

PLUG

26

21Y-70-14490

CUSHION

27

21Y-70-14480

PLATE

28

01010-81020

BOLT

29

01643-31032

WASHER
