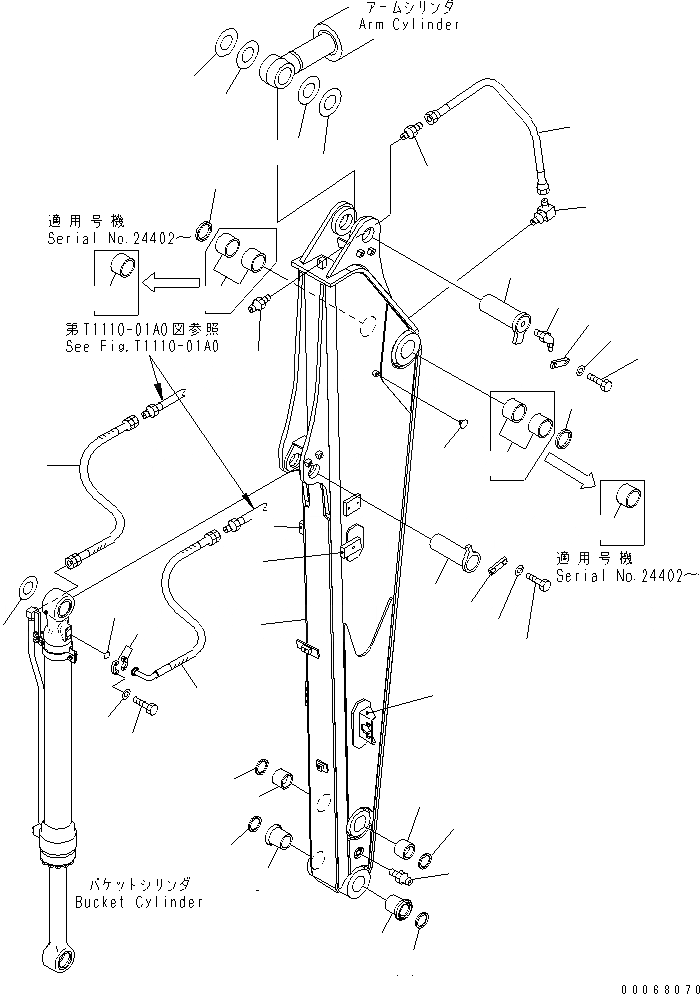

Запчасти Komatsu PC138US-8 РУКОЯТЬ (УСИЛЕНН.) (ДЛЯ НАВЕСН. ОБОРУД.) (ДЛЯ ЕС)(№-) РАБОЧЕЕ ОБОРУДОВАНИЕ

|$3

22B-70-00301

ARM ASS'Y

|$4

22B-70-00300

ARM ASS'Y

1

ARM

1

ARM

2

202-973-6321

BRACKET (WELDED)

3

202-973-6331

BRACKET (WELDED)

4

22B-973-2130

BRACKET (WELDED)

5

203-70-72210

BUSHING

5

22B-70-23630

BUSHING

6

203-70-42182

BUSHING

7

22B-70-23670

BUSHING

8

07020-00000

FITTING,GREASE

9

20T-54-74510

CAP

10

22B-70-12230

SEAL,DUST

11

21W-70-41440

SEAL,DUST

12

203-70-42121

PIN

13

205-70-66580

PLATE

13

21W-70-11310

PLATE

14

01010-81230

BOLT

15

01643-31232

WASHER

16

21Y-70-14790

SPACER, 1.0MM

17

21Y-70-14820

SPACER, 2.0MM

18

07020-00675

FITTING,GREASE

19

202-70-52121

PIN

20

21Y-70-14710

SPACER, 1.0MM

21

205-70-66580

PLATE

21

21W-70-11310

PLATE

22

01010-81230

BOLT

23

01643-31232

WASHER

24

22B-62-24140

HOSE, 1300MM

25

02756-20413

HOSE

26

07371-30500

FLANGE,SPLIT

27

01643-50823

WASHER

28

01010-80830

BOLT

29

07000-13022

O-RING

30

22B-70-15210

TUBE

31

20Y-70-11540

CONNECTOR

32

07020-00000

FITTING,GREASE

33

20Y-70-11590

ELBOW
