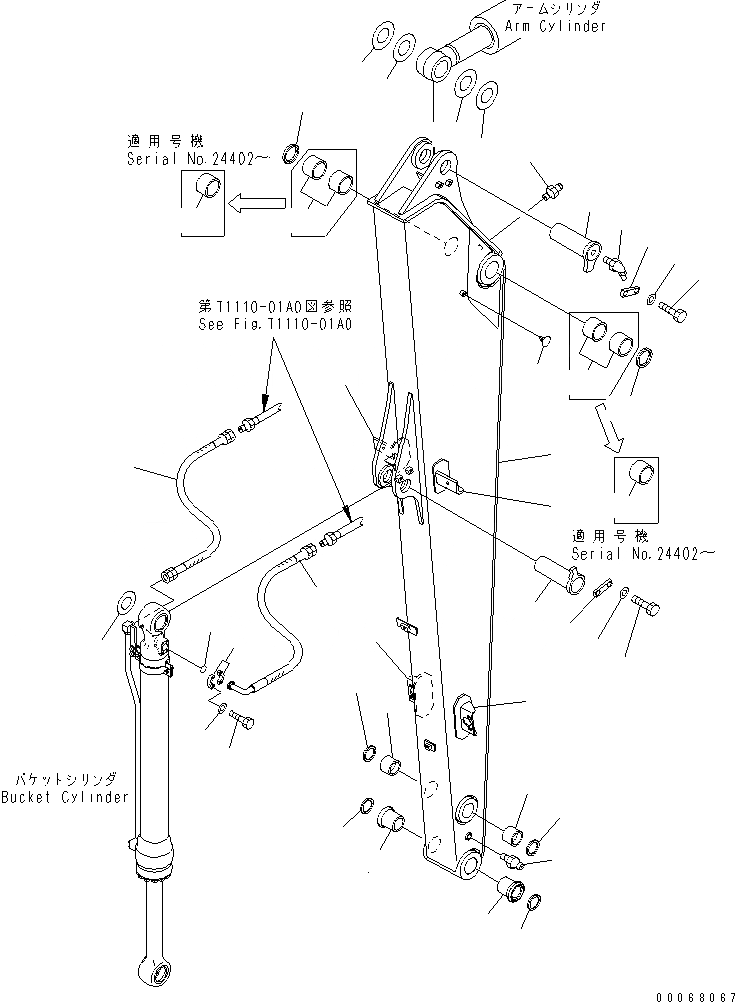

Запчасти Komatsu PC138US-8 УДЛИНН. РУКОЯТЬ (ДЛЯ НАВЕСН. ОБОРУД.) (ДЛЯ ЕС)(№-) РАБОЧЕЕ ОБОРУДОВАНИЕ

|$3

22B-943-0051

ARM ASS'Y

|$4

22B-943-0050

ARM ASS'Y

1

ARM

1

ARM

2

202-973-6321

BRACKET (WELDED)

3

22B-943-1220

BRACKET,L.H. (WELDED)

4

22B-943-2230

BRACKET,R.H. (WELDED)

5

20T-54-74510

CAP

6

203-70-72210

BUSHING

6

22B-70-23630

BUSHING

7

203-70-42182

BUSHING

8

22B-70-23670

BUSHING

9

07020-00900

FITTING,GREASE

10

07020-00000

FITTING,GREASE

11

22B-70-12230

SEAL,DUST

12

21W-70-41440

SEAL,DUST

13

203-70-42121

PIN

14

205-70-66580

PLATE

14

21W-70-11310

PLATE

15

01010-81230

BOLT

16

01643-31232

WASHER

17

21Y-70-14790

SPACER, 1.0MM

18

21Y-70-14820

SPACER, 2.0MM

19

07020-00675

FITTING,GREASE

20

202-70-52121

PIN

21

21Y-70-14710

SPACER, 1.0MM

22

205-70-66580

PLATE

22

21W-70-11310

PLATE

23

01010-81230

BOLT

24

01643-31232

WASHER

25

22B-62-21910

HOSE, 1750MM

26

22B-62-21920

HOSE, 1800MM

27

07371-30500

FLANGE,SPLIT

28

01010-80830

BOLT

29

01643-50823

WASHER

30

07000-13022

O-RING
