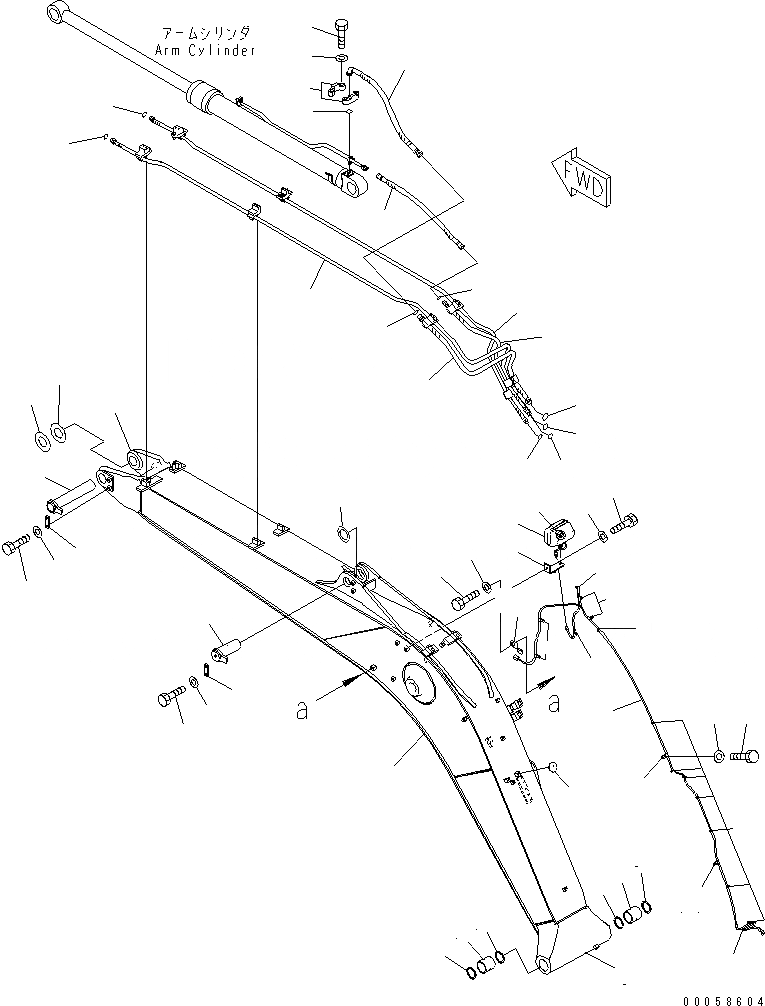

Запчасти Komatsu PC138US-8 СТРЕЛА (СТРЕЛА¤ РАБОЧ. ОСВЕЩЕНИЕ И ПАЛЕЦ) (ДЛЯ ЕС)(№-) РАБОЧЕЕ ОБОРУДОВАНИЕ

|$5

22B-70-00371

BOOM ASS'Y

|$6

22B-70-00370

BOOM ASS'Y

1

BOOM

1

BOOM

1

BOOM

|$13

22B-70-00220

BRACKET ASS'Y

2

BRACKET (WELDED)

3

203-46-41130

SEAT (WELDED)

4

22B-70-23610

BUSHING

5

07145-00070

SEAL

5

22B-70-12230

SEAL

6

21X-54-32350

CAP

7

07145-00070

SEAL

7

22B-70-12230

SEAL

8

22B-06-11690

WORK LAMP ASS'Y

9

421-06-23330

BULB, 70W

10

22B-70-21970

BRACKET

11

01010-81225

BOLT

12

01643-31232

WASHER

13

22B-06-28251

WIRING HARNESS

14

04434-51012

CLIP

15

08034-30521

BAND

16

01010-81020

BOLT

17

01643-31032

WASHER

18

08193-21012

CLIP

19

01010-81020

BOLT

20

01643-31032

WASHER

21

22B-70-22550

PIN

21

22B-70-15220

PIN

22

22B-70-22570

PLATE

22

205-70-66580

PLATE

22

21W-70-11310

PLATE

23

01010-81235

BOLT

23

01010-81230

BOLT

24

01643-31232

WASHER

25

20U-70-31340

SPACER, 1.0MM

26

20U-70-31330

SPACER, 0.5MM

27

203-70-42121

PIN

28

205-70-66580

PLATE

28

21W-70-11310

PLATE

29

01010-81230

BOLT

30

01643-31232

WASHER

31

21Y-70-14830

SPACER, 1.0MM

32

22B-70-21840

TUBE

33

02896-11018

O-RING

34

22B-70-21830

TUBE

35

02896-11015

O-RING

36

22B-62-21520

HOSE, 780MM

37

22B-62-21510

HOSE, 870MM

38

07000-13025

O-RING

39

07371-30640

FLANGE,SPLIT

40

07372-21035

BOLT

41

01643-51032

WASHER

42

22B-70-21820

TUBE

43

02896-11012

O-RING

44

22B-70-21810

TUBE

45

02896-11015

O-RING
