Запчасти Komatsu PC138US-8 ОСНОВН. КОНСТРУКЦИЯ (P.P.C. ТРУБЫ И КРЕПЛЕНИЕ)(№-) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

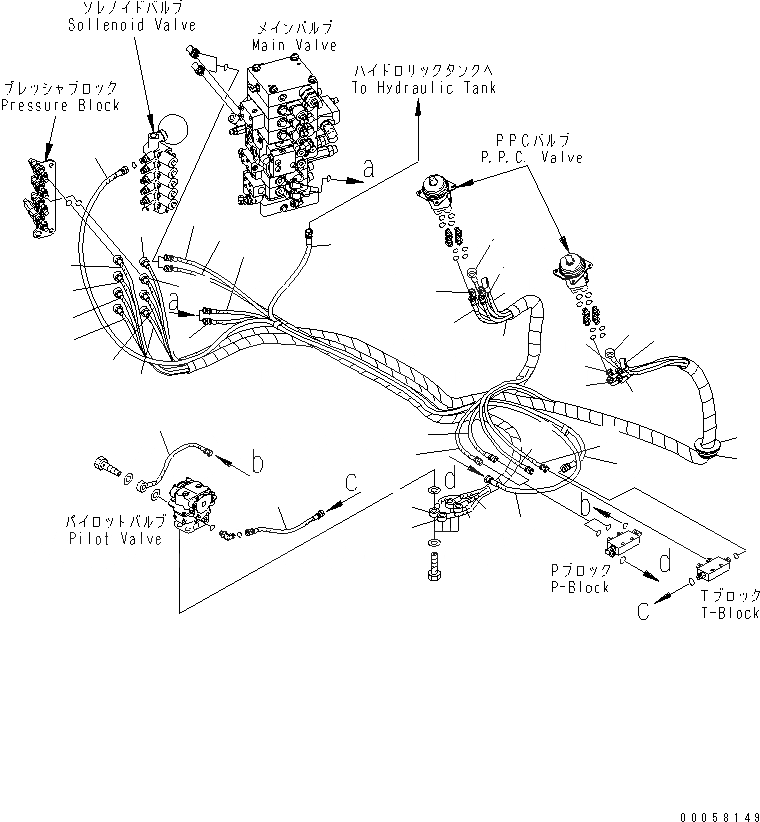

Схема запчастей Komatsu PC138US-8 - ОСНОВН. КОНСТРУКЦИЯ (P.P.C. ТРУБЫ И КРЕПЛЕНИЕ)(№-) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ
1
1
2
2
3
3
4
4
5
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
22

Артикул

Название

Примечание

Количество

|$52

22B-62-25301

HOSE ASS'Y

1

22B-62-25331

HOSE, 2120MM

1

21U-62-34730

BAND, GREEN

1

21U-62-34710

BAND, YELLOW

2

22B-62-25341

HOSE, 2000MM

2

21U-62-34720

BAND, BLACK

2

21U-62-34710

BAND, YELLOW

3

22B-62-25351

HOSE, 2130MM

3

21U-62-34740

BAND, ORANGE

3

21U-62-34710

BAND, YELLOW

4

22B-62-25361

HOSE, 2010MM

4

21U-62-34780

BAND, BROWN

4

21U-62-34710

BAND, YELLOW

5

22B-62-25311

HOSE, 390MM

6

22B-62-25320

HOSE, 300MM

|$67

22B-62-25201

HOSE ASS'Y

7

22B-62-25211

HOSE, 2060MM

7

21U-62-34710

BAND, YELLOW

7

21U-62-34760

BAND, RED

8

22B-62-25221

HOSE, 2110MM

8

21U-62-34750

BAND, BLUE

8

21U-62-34770

BAND, WHITE

9

22B-62-25231

HOSE, 3250MM

9

21U-62-34730

BAND, GREEN

10

22B-62-25241

HOSE, 3370MM

10

21U-62-34740

BAND, ORANGE

11

22B-62-25250

HOSE, 3310MM

11

21U-62-34770

BAND, WHITE

12

22B-62-25261

HOSE, 3180MM

12

21U-62-34780

BAND, BROWN

|$82

22B-62-25101

HOSE ASS'Y

13

22B-62-25111

HOSE, 1480MM

13

21U-62-34760

BAND, RED

13

21U-62-34730

BAND, GREEN

14

22B-62-25121

HOSE, 1530MM

14

21U-62-34750

BAND, BLUE

14

21U-62-34770

BAND, WHITE

15

22B-62-25131

HOSE, 2610MM

15

21U-62-34710

BAND, YELLOW

16

22B-62-25150

HOSE, 2650MM

16

21U-62-34750

BAND, BLUE

17

22B-62-25170

HOSE, 2600MM

17

21U-62-34760

BAND, RED

18

22B-62-25161

HOSE, 2510MM

18

21U-62-34750

BAND, BLUE

|$97

22B-62-25401

HOSE ASS'Y

19

22B-62-25411

HOSE, 3330MM

19

21U-62-34760

BAND, RED

19

21U-62-34730

BAND, GREEN

20

22B-62-25421

HOSE, 1990MM

20

21U-62-34750

BAND, BLUE

20

21U-62-34770

BAND, WHITE

21

08034-20536

BAND

22

20Y-54-65121

GROMMET

Выбрано товаров: 54
