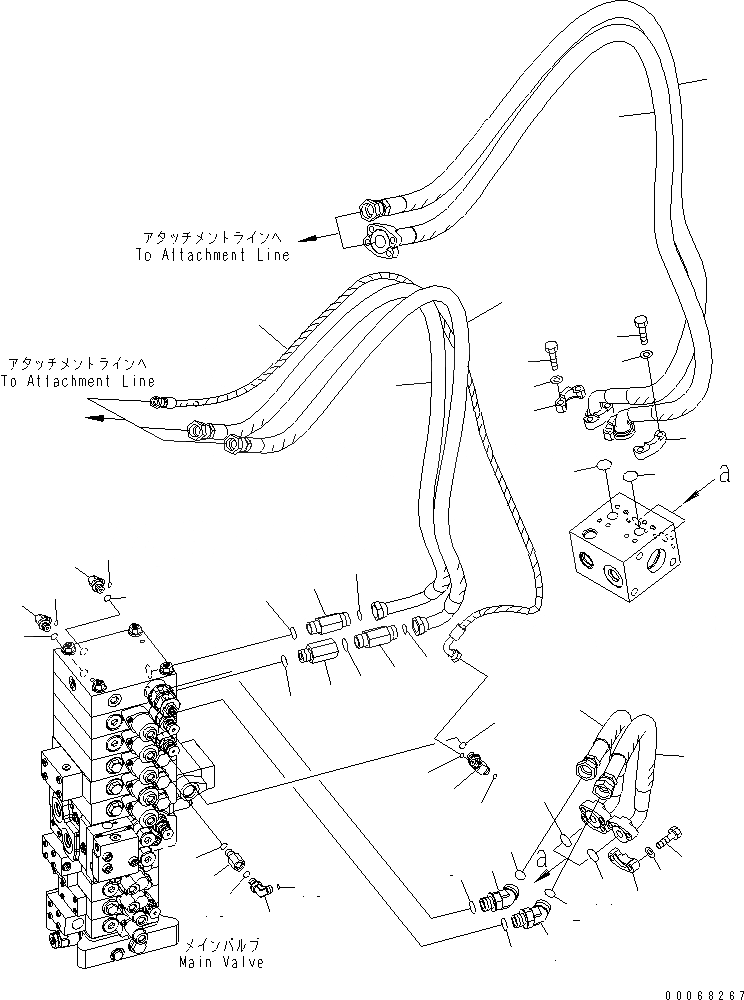

Запчасти Komatsu PC138US-8 НАВЕСНОЕ ОБОРУД-Е (ДЛЯ ABLE - AVAIL ДЛЯ РЕГУЛИР. -ЧАСТИS СТРЕЛА)(№-) ГИДРАВЛИКА

1

02783-10628

ELBOW

2

02896-11018

O-RING

3

07002-12434

O-RING

4

22B-62-23561

HOSE, 540MM

4

21U-62-34780

BAND, BROWN

5

22B-62-23571

HOSE, 580MM

5

21U-62-34770

BAND, WHITE

6

22B-62-28450

HOSE, 2020MM

6

21U-62-34750

BAND, BLUE

7

22B-62-28460

HOSE, 2080MM

7

21U-62-34760

BAND, RED

8

07371-30640

FLANGE,SPLIT

9

07372-21035

BOLT

10

01643-51032

WASHER

11

07000-13025

O-RING

12

203-62-58880

ADAPTER

13

07002-11423

O-RING

14

02782-10210

ELBOW

15

02896-11008

O-RING

16

07002-11423

O-RING

17

07371-31049

FLANGE,SPLIT

18

07372-21035

BOLT

19

01643-51032

WASHER

20

07000-13032

O-RING

21

201-62-71820

JOINT

22

21W-62-42481

NIPPLE

23

02896-11015

O-RING

24

07002-12434

O-RING

25

22B-62-28470

HOSE, 1450MM

26

22B-62-28480

HOSE, 1470MM

26

21U-62-34760

BAND, RED

27

02782-10210

ELBOW

28

11Y-62-12250

TEE

29

02896-11008

O-RING

30

07002-11423

O-RING

31

22B-62-29140

HOSE, 1790MM

31

21U-62-34710

BAND, YELLOW
