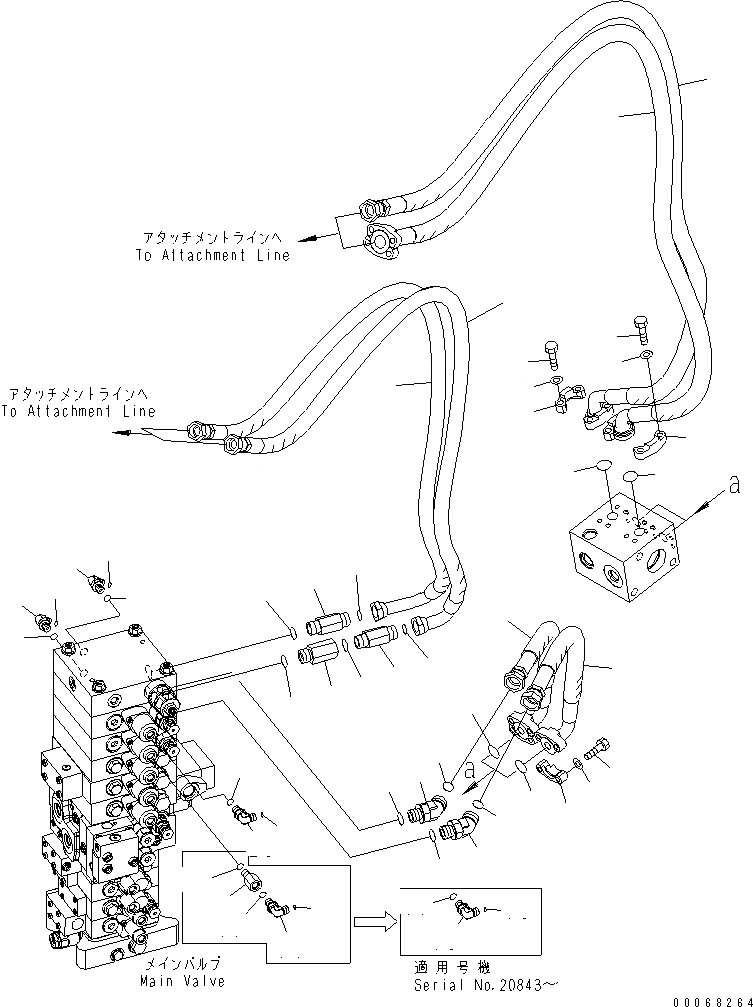

Запчасти Komatsu PC138US-8 НАВЕСНОЕ ОБОРУД-Е (ДЛЯ -НАВЕСН. ОБОРУД)(№-) ГИДРАВЛИКА

1

02783-10628

ELBOW

2

02896-11018

O-RING

3

07002-12434

O-RING

4

22B-62-23561

HOSE, 540MM

4

21U-62-34780

BAND, BROWN

5

22B-62-23571

HOSE, 580MM

5

21U-62-34770

BAND, WHITE

6

22B-62-23542

HOSE, 2240MM

6

21U-62-34750

BAND, BLUE

7

22B-62-28561

HOSE, 2110MM

7

21U-62-34760

BAND, RED

8

07371-30640

FLANGE,SPLIT

9

07372-21035

BOLT

10

01643-51032

WASHER

11

07000-13025

O-RING

12

203-62-58880

ADAPTER

13

07002-11423

O-RING

14

02782-10210

ELBOW

14

02782-10210

ELBOW

15

02782-10212

ELBOW

16

02896-11008

O-RING

17

07002-11423

O-RING

18

07371-31049

FLANGE,SPLIT

19

07372-21035

BOLT

20

01643-51032

WASHER

21

07000-13032

O-RING

22

201-62-71820

JOINT

23

21W-62-42481

NIPPLE

24

02896-11015

O-RING

25

07002-12434

O-RING

26

22B-62-21710

HOSE, 1650MM

26

21U-62-34760

BAND, RED

27

22B-62-21720

HOSE, 1600MM

28

02782-10210

ELBOW

29

02896-11008

O-RING

30

07002-11423

O-RING
