Запчасти Komatsu PC138US-8 ГИДРОЛИНИЯ РУКОЯТИ И КОВША(/) (ДЛЯ -НАВЕСН. ОБОРУД¤ ОТВАЛ И ДВОЙН. OFFSET СТРЕЛА СПЕЦ-Я. СТУПЕНИ)(№7-) ГИДРАВЛИКА

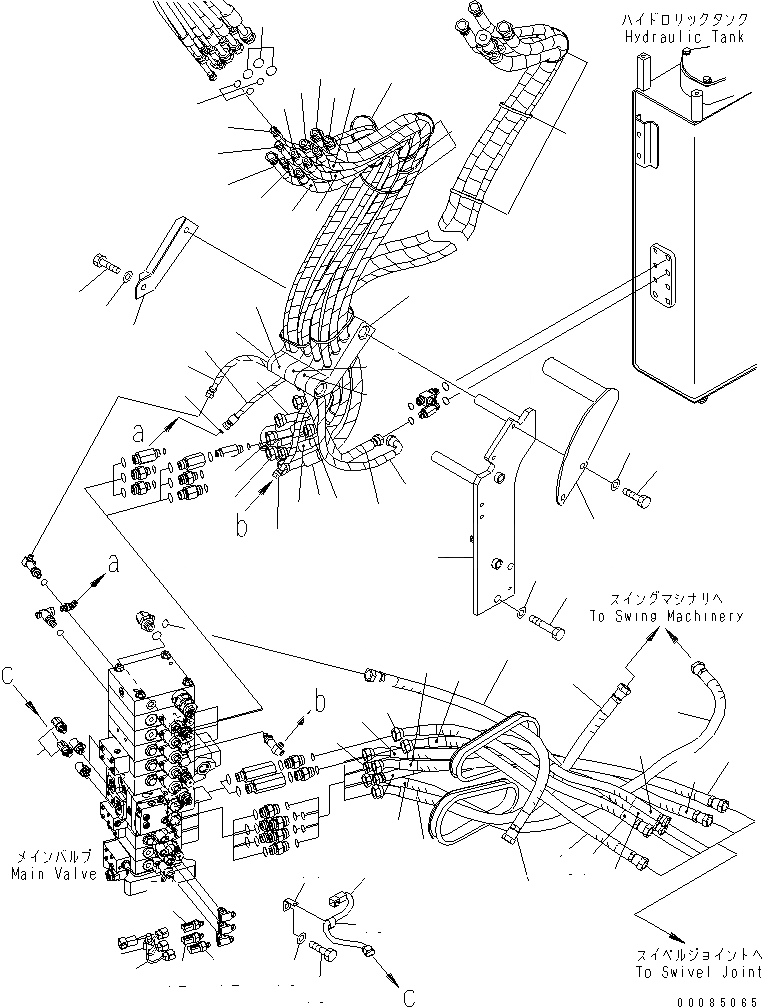

Схема запчастей Komatsu PC138US-8 - ГИДРОЛИНИЯ РУКОЯТИ И КОВША(/) (ДЛЯ -НАВЕСН. ОБОРУД¤ ОТВАЛ И ДВОЙН. OFFSET СТРЕЛА СПЕЦ-Я. СТУПЕНИ)(№7-) ГИДРАВЛИКА
1
1
2
2
3
3
4
4
5
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
24
25
25
26
26
27
27
28
28
29
30
30
31
31
32
32
33
33
34
34
35
35
36
36
37
37
38
38
39
39
40
41
42
42
42
42
43
43
44
45
46

Артикул

Название

Примечание

Количество

1

21Y-62-31411

HOSE, 1920MM

1

21U-62-34740

BAND, ORANGE

2

21Y-62-31411

HOSE, 1920MM

2

21U-62-34730

BAND, GREEN

3

21Y-62-31431

HOSE, 1840MM

3

21U-62-34760

BAND, RED

4

22B-62-29580

HOSE,GREEN-PINK

4

21U-62-34730

BAND, GREEN

5

22B-62-29580

HOSE,WHITE-PINK

5

21U-62-34770

BAND, WHITE

6

22B-62-29610

HOSE

6

21U-62-34750

BAND, BLUE

7

02896-11015

O-RING

8

02896-11012

O-RING

9

22B-62-29752

BRACKET

9

22B-62-29751

BRACKET

10

01010-81655

BOLT

11

01643-31645

WASHER

12

08034-20834

BAND

|$26

22B-62-29830

CUSHION ASS'Y

13

22B-62-29460

CUSHION

14

22B-62-29470

CUSHION

15

22B-62-29480

CUSHION

16

22B-62-29840

CUSHION

17

22B-62-29850

CUSHION

18

01010-81235

BOLT

19

01643-31232

WASHER

20

22B-946-6470

BRACKET

21

22B-62-29761

BRACKET

22

01010-81230

BOLT

23

01643-31232

WASHER

24

22B-62-29570

HOSE, 2050MM

24

21U-62-34730

BAND, GREEN

25

22B-62-29560

HOSE, 2050MM

25

21U-62-34750

BAND, BLUE

26

22B-62-29670

HOSE, 1940MM,WHITE-PINK

26

21U-62-34770

BAND, WHITE

27

22B-62-29660

HOSE, 1920MM,GREEN-PINK

27

21U-62-34730

BAND, GREEN

28

22B-62-29650

HOSE, 2060MM

29

02896-11012

O-RING

30

08034-20834

BAND

31

22B-62-23971

HOSE, 870MM

31

21U-62-34720

BAND, BLACK

32

22B-62-23361

HOSE, 1310MM

32

21U-62-34780

BAND, BROWN

33

22B-62-23351

HOSE, 860MM

33

21U-62-34770

BAND, WHITE

34

22B-62-23331

HOSE, 950MM

34

21U-62-34740

BAND, ORANGE

34

21U-62-34710

BAND, YELLOW

35

22B-62-23331

HOSE, 950MM

35

21U-62-34780

BAND, BROWN

35

21U-62-34710

BAND, YELLOW

36

22B-62-23411

HOSE, 790MM

36

21U-62-34720

BAND, BLACK

36

21U-62-34750

BAND, BLUE

37

22B-62-23341

HOSE, 810MM

37

21U-62-34730

BAND, GREEN

37

21U-62-34750

BAND, BLUE

38

22B-62-22940

HOSE, 950MM

38

21U-62-34750

BAND, BLUE

38

21U-62-34710

BAND, YELLOW

39

22B-62-22940

HOSE, 950MM

39

21U-62-34760

BAND, RED

39

21U-62-34720

BAND, BLACK

40

22B-06-21490

WIRING HARNESS

41

22B-06-21560

WIRING HARNESS

42

7861-93-1840

SENSOR

43

08211-00720

CLIP

44

08057-14012

CLIP

45

01010-81025

BOLT

46

01643-31032

WASHER

Выбрано товаров: 73
