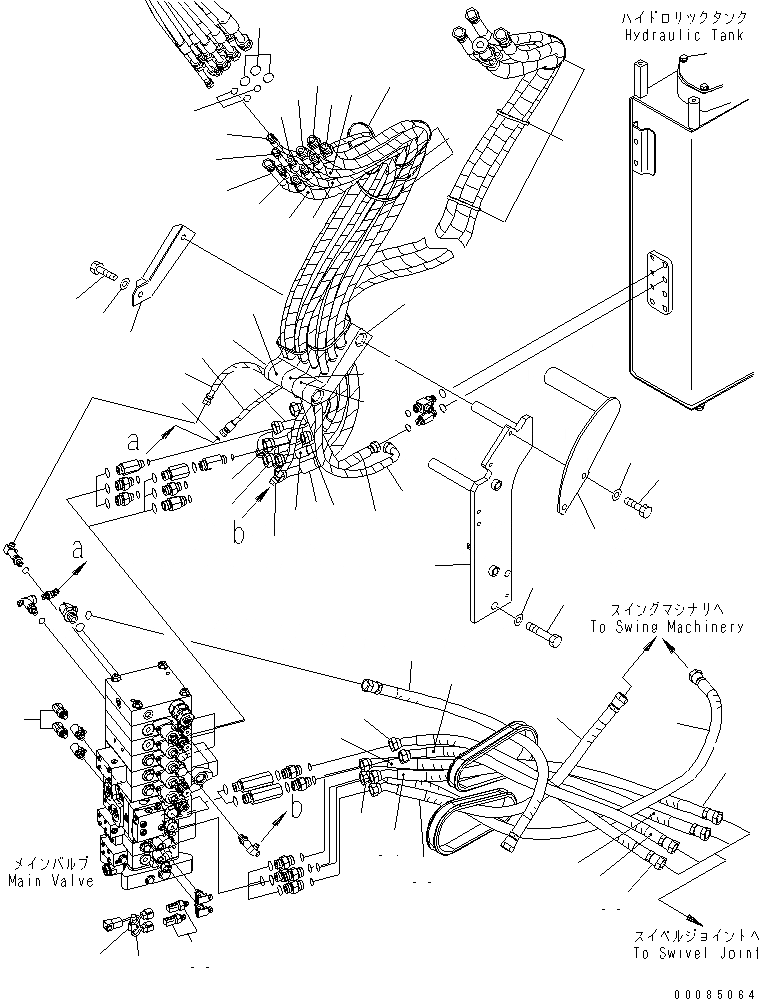

Запчасти Komatsu PC138US-8 ГИДРОЛИНИЯ РУКОЯТИ И КОВША(/) (ДЛЯ -НАВЕСН. ОБОРУД И KUK OFFSET СТРЕЛА SEPC. СТУПЕНИ)(№7-) ГИДРАВЛИКА

1

21Y-62-31411

HOSE, 1920MM

1

21U-62-34740

BAND, ORANGE

2

21Y-62-31411

HOSE, 1920MM

2

21U-62-34730

BAND, GREEN

3

21Y-62-31431

HOSE, 1840MM

3

21U-62-34760

BAND, RED

4

22B-62-29580

HOSE,GREEN-PINK

4

21U-62-34730

BAND, GREEN

5

22B-62-29580

HOSE,WHITE-PINK

5

21U-62-34770

BAND, WHITE

6

22B-62-29610

HOSE

6

21U-62-34750

BAND, BLUE

7

02896-11015

O-RING

8

02896-11012

O-RING

9

22B-62-29752

BRACKET

9

22B-62-29751

BRACKET

10

01010-81655

BOLT

11

01643-31645

WASHER

12

08034-20834

BAND

|$26

22B-62-29830

CUSHION ASS'Y

13

22B-62-29460

CUSHION

14

22B-62-29470

CUSHION

15

22B-62-29480

CUSHION

16

22B-62-29840

CUSHION

17

22B-62-29850

CUSHION

18

01010-81235

BOLT

19

01643-31232

WASHER

20

22B-946-6470

BRACKET

21

22B-62-29761

BRACKET

22

01010-81230

BOLT

23

01643-31232

WASHER

24

22B-62-29570

HOSE, 2050MM

24

21U-62-34730

BAND, GREEN

25

22B-62-29560

HOSE, 2050MM

25

21U-62-34750

BAND, BLUE

26

22B-62-29670

HOSE, 1940MM,WHITE-PINK

26

21U-62-34770

BAND, WHITE

27

22B-62-29660

HOSE, 1920MM,GREEN-PINK

27

21U-62-34730

BAND, GREEN

28

22B-62-29650

HOSE, 2060MM

29

02896-11012

O-RING

30

08034-20834

BAND

31

22B-62-23971

HOSE, 870MM

31

21U-62-34720

BAND, BLACK

32

22B-62-23321

HOSE, 820MM

32

21U-62-34720

BAND, BLACK

32

21U-62-34710

BAND, YELLOW

33

22B-62-23291

HOSE, 850MM

33

21U-62-34730

BAND, GREEN

33

21U-62-34710

BAND, YELLOW

34

22B-62-23331

HOSE, 950MM

34

21U-62-34780

BAND, BROWN

34

21U-62-34710

BAND, YELLOW

35

22B-62-23331

HOSE, 950MM

35

21U-62-34740

BAND, ORANGE

35

21U-62-34710

BAND, YELLOW

36

22B-62-23351

HOSE, 860MM

36

21U-62-34770

BAND, WHITE

37

22B-62-23361

HOSE, 1310MM

37

21U-62-34780

BAND, BROWN

38

22B-06-21540

WIRING HARNESS

39

7861-93-1840

SENSOR

40

08211-00720

CLIP
