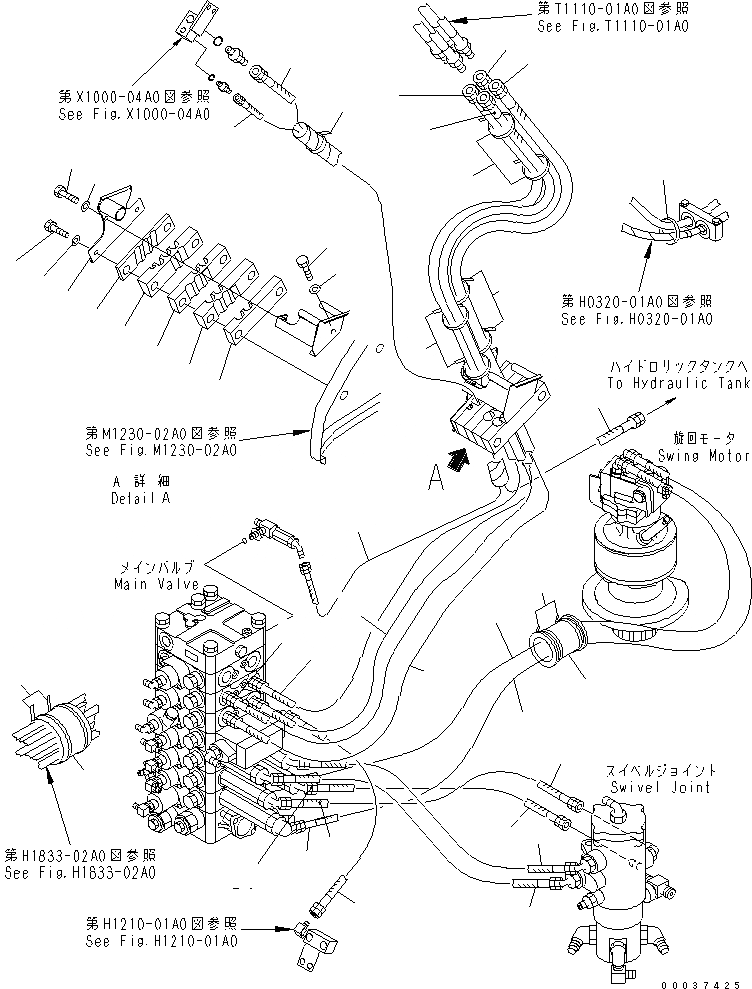

Запчасти Komatsu PC138US-2E ГИДРОЛИНИЯ РУКОЯТИ И КОВША(/) (ДЛЯ -НАВЕСН. ОБОРУД) (С FALL DOWN PREВЕНТИЛЯТОРION КЛАПАН) ГИДРАВЛИКА

1

22B-62-19310

HOSE, 2475MM

1

21U-62-34740

BAND, ORANGE

2

22B-62-19320

HOSE, 2450MM

2

21U-62-34730

BAND, GREEN

3

22B-62-19330

HOSE, 2335MM

3

21U-62-34760

BAND, RED

4

22B-62-19340

HOSE, 2240MM

4

21U-62-34750

BAND, BLUE

5

08034-20834

BAND

6

22B-62-14221

CUSHION

7

22B-62-14231

CUSHION

8

22B-62-14242

CUSHION

9

22B-62-11840

CUSHION

10

22B-62-11830

CUSHION

11

22B-62-11850

BRACKET

12

01010-81235

BOLT

13

01643-31232

WASHER

14

22B-62-14590

BRACKET

15

01010-81220

BOLT

16

01643-31232

WASHER

17

01010-81020

BOLT

18

01643-31032

WASHER

19

22B-62-11320

PLATE

20

08034-20536

BAND

21

02762-00434

HOSE

22

02762-00225

HOSE

23

08034-20834

BAND

24

22B-62-17610

HOSE

24

21U-62-34720

BAND, BLACK

24

21U-62-34710

BAND, YELLOW

25

22B-62-17610

HOSE

25

21U-62-34740

BAND, ORANGE

25

21U-62-34710

BAND, YELLOW

26

22B-62-17620

HOSE

26

21U-62-34730

BAND, GREEN

26

21U-62-34710

BAND, YELLOW

27

22B-62-17631

HOSE

27

22B-62-17630

HOSE

27

21U-62-34780

BAND, BROWN

27

21U-62-34710

BAND, YELLOW

28

22B-62-17651

HOSE

28

22B-62-17650

HOSE

28

21U-62-34780

BAND, BROWN

29

22B-62-17661

HOSE

29

22B-62-17660

HOSE

29

21U-62-34770

BAND, WHITE

30

22B-62-17670

HOSE

30

21U-62-34720

BAND, BLACK

31

08034-20834

BAND

32

07095-01245

CUSHION

33

08034-20823

BAND
