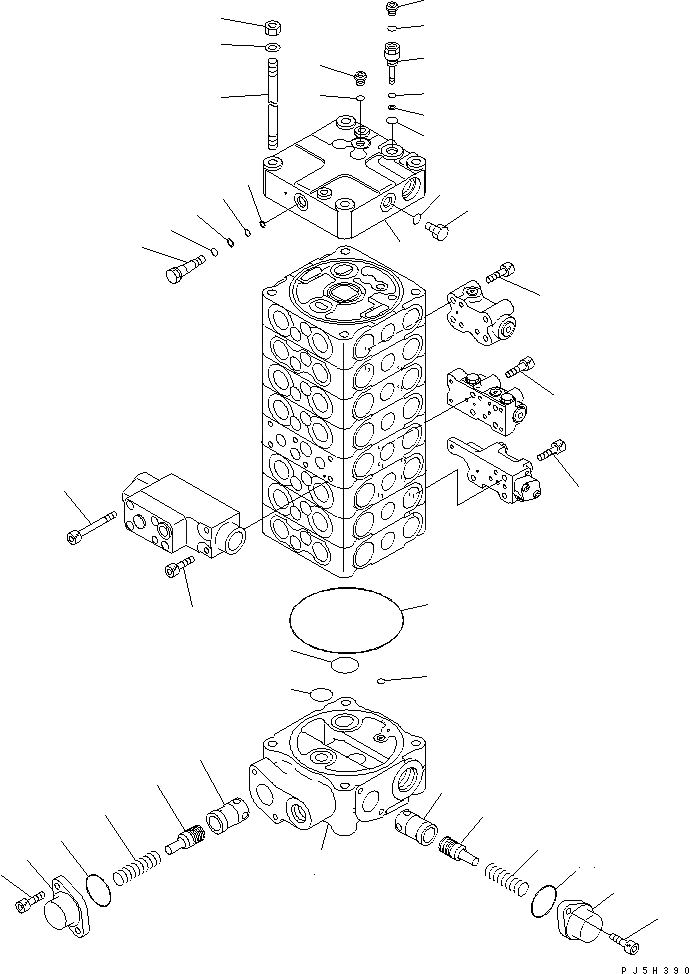

Запчасти Komatsu PC138US-2E ОСНОВН. КЛАПАН (8-КЛАПАН) (/) (ДЛЯ -АКТУАТОР НАВЕСН. ОБОРУД) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|$2

723-58-13901

VALVE ASS'Y

|$3

723-58-13900

VALVE ASS'Y

|$$3

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1664-21A0 TO Y1664-35A0.

|$5

BLOCK GROUP

1

BLOCK

2

144-14-54610

O-RING

3

723-56-31730

O-RING

4

702-75-11520

O-RING

5

07000-11008

O-RING

6

SLEEVE

7

PISTON

8

PISTON

9

723-36-15240

SPRING

10

723-36-15250

CASE

11

07000-13042

O-RING

12

01252-60820

BOLT

|$18

COVER GROUP

13

COVER

14

723-50-11311

PLUG

15

07000-11004

O-RING

16

07001-01004

RING

17

07002-11423

O-RING

18

723-26-15190

PLUG

19

07000-11007

O-RING

20

07001-01007

RING,BACK-UP

21

07000-11009

O-RING

22

07001-01009

RING,BACK-UP

23

708-8E-16160

PLUG

24

07002-11023

O-RING

25

07040-11409

PLUG

26

07002-11423

O-RING

27

723-50-11180

STUD

28

01643-31232

WASHER

29

01580-11210

NUT

30

01252-60850

BOLT

31

708-25-19160

BOLT

32

01252-60865

BOLT
