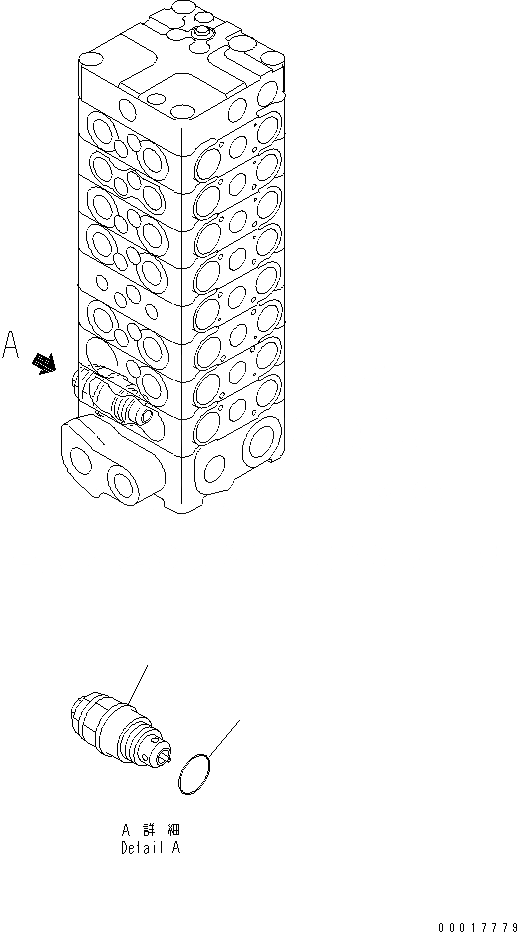

Запчасти Komatsu PC138US-2 ХОД MTOR (МОТОР В СБОРЕ) (GMVL ТИП) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|$2

22B-60-11351

MOTOR ASS'Y

|$3

22B-60-11350

MOTOR ASS'Y

|$5

TZ463B200000-A

MOTOR

|$6

TZ460B2205-00

CYL & PISTON KIT

|$7

TZ460B2105-00

PISTON KIT

|$8

PISTON ASS'Y

1

PISTON

2

SHOE

3

BLOCK,CYLINDER

4

PLATE,RETAINER

5

BOWL,THRUST

6

WASHER

7

WASHER

8

SPRING

9

RING,SNAP

10

PIN

|$19

TZ220B2070-01

PISTON ASS'Y

11

PISTON

12

SHOE

13

TZ460B2002-02

SHAFT

14

TZ460B200303-A

PLATE,SWASH

15

TZ460B2009-01

PLATE,TIMING

16

TZ481B2012-00

PISTON

17

TZ481B2013-00

SPRING

18

TZ460B2015-00

DISC

19

TZ100A2016-00

PLATE

20

TZTCN-34-54-11

SEAL,OIL (KIT)

21

TZ481B2035-00

O-RING (KIT)

22

TZ481B2039-00

O-RING (KIT)

23

TZNJ207R1SH6C3

BEARING

24

TZNJ204RC3

BEARING

25

TZ460B2076-01

PLATE

26

TZ200B2074-00

PLATE

26

TZ100A2051-00

PLUG

27

TZ263B2077-01

PIN

28

TZ200B2085-00

SPRING

|$39

TZ467B400000-D

CONTROL VALVE

|$40

TZ467B410000-D

FLANGE ASS'Y

|$41

TZ467B410100-D

FLANGE KIT

29

FLANGE

30

SPOOL

31

ORIFICE

|$45

TZ483B411000-A

SPOOL KIT

32

SPOOL

33

STOPPER,OIL

34

TZ100A2021-00

PLUG

35

TZ100A2051-00

PLUG

36

TZ140F205200-C

STOPPER

37

TZ100A2053-01

PLUG

38

TZ100A2054-01

VALVE

39

TZ100A2055-00

SPRING

40

TZ100A2057-01

SPRING

41

07000-13032

O-RING (KIT)

42

07000-12020

O-RING (KIT)

43

07000-12018

O-RING (KIT)

44

TZGDL1-16-S

PLUG

45

TZGM1-8-S

PLUG

46

TZ610B2021-00

PLUG

47

TZ272B2089-00

SPRING

48

04260-00952

BALL

49

01252-30865

BOLT

50

07002-12034

O-RING (KIT)

51

TZSW-M8

WASHER

52

TZS0607

ORIFICE

53

TZ679B2079-00

FILTER

54

07000-12010

O-RING (KIT)

55

TZ512B2021-00

PLUG

56

04260-00793

BALL

57

07000-12011

O-RING (KIT)

58

TZ850A0006-00

PLATE, NAME

59

TZJB1354-5-12

PIN

60

01252-31440

BOLT

K

TZ467B9000-00

SERVICE KIT
