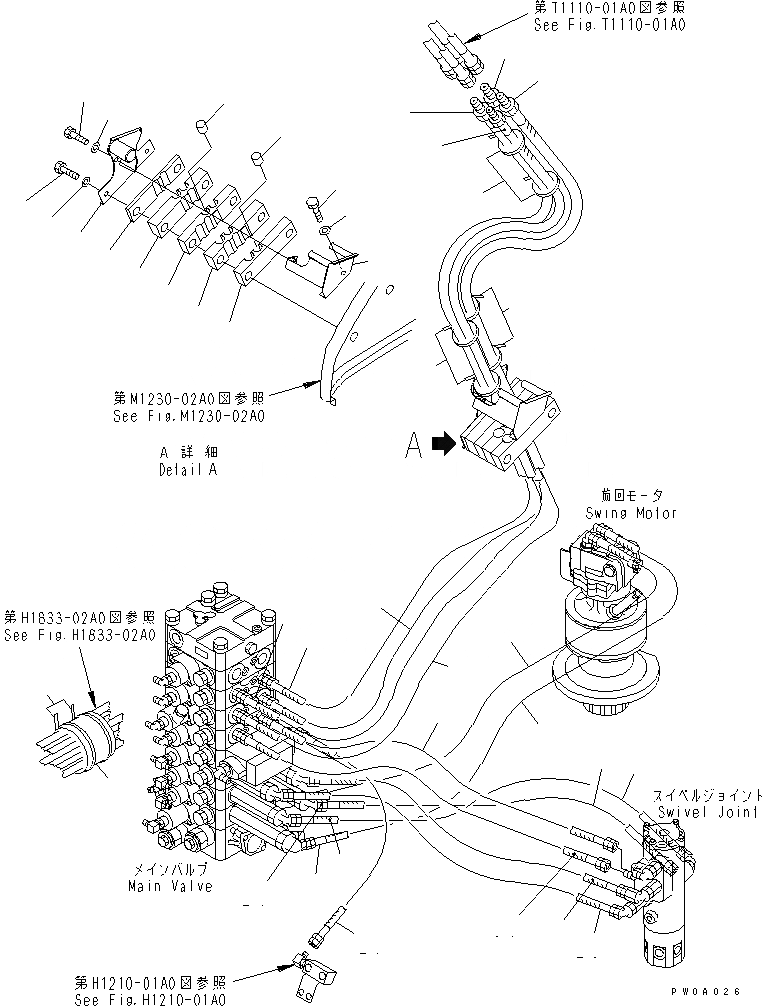

Запчасти Komatsu PC138US-2 ГИДРОЛИНИЯ РУКОЯТИ И КОВША(/) (ДЛЯ НАВЕСН. ОБОРУД И ОТВАЛ) (БЕЗ КЛАПАН СЕЛЕКТОРА)(№-) ГИДРАВЛИКА

1

22B-62-12511

HOSE¤ 2345MM,ORANGE

2

22B-62-12521

HOSE¤ 2315MM,GREEN

3

22B-62-12531

HOSE¤ 2750MM,RED

4

22B-62-12541

HOSE¤ 2225MM,BLUE

5

08034-20834

BAND

|6

22B-62-14630

CUSHION

6

CUSHION

7

22B-62-14650

PLUG

|8

22B-62-14640

CUSHION

8

CUSHION

9

22B-62-14650

PLUG

10

22B-62-14241

CUSHION

11

22B-62-14251

CUSHION

12

22B-62-14261

CUSHION

13

22B-62-14580

BRACKET

14

01010-81235

BOLT

15

01643-31232

WASHER

16

22B-62-14590

BRACKET

17

01010-81220

BOLT

18

01643-31232

WASHER

19

01010-81020

BOLT

20

01643-31032

WASHER

21

22B-62-11320

PLATE

22

08034-20536

BAND

23

22B-62-12231

HOSE¤ 970MM

|23

22B-62-12230

HOSE¤ 950MM,BROWN-YELLOW

24

22B-62-12241

HOSE¤ 950MM

|24

22B-62-12240

HOSE¤ 930MM,ORANGE-YELLOW

25

22B-62-12251

HOSE¤ 1450MM

|25

22B-62-12250

HOSE¤ 1200MM,BROWN

26

22B-62-12261

HOSE¤ 1450MM

|26

22B-62-12260

HOSE¤ 1300MM,WHITE

27

22B-62-12270

HOSE¤ 800MM,BLACK

28

22B-62-12610

HOSE¤ 880MM,BLACK-YELLOW

29

22B-62-12620

HOSE¤ 850MM,GREEN-YELLOW

30

22B-62-12630

HOSE¤ 970MM,RED-BLACK

31

22B-62-12640

HOSE¤ 920MM,BLUE-BLACK
