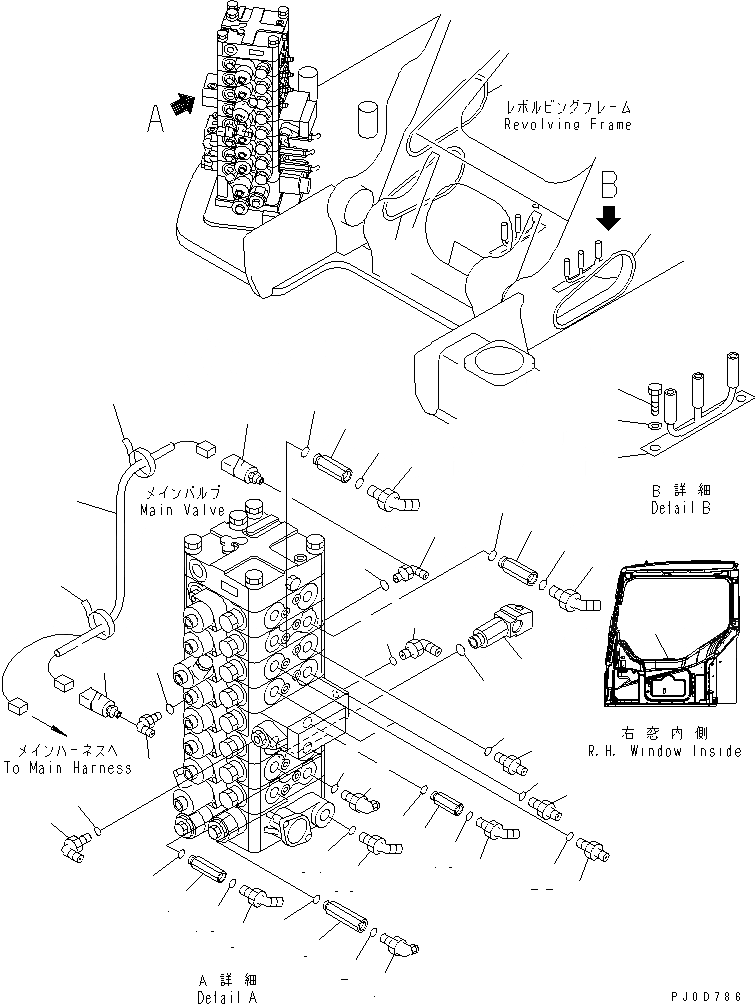

Запчасти Komatsu PC138US-2 РУКОЯТЬ¤ КОВШ И OFFSET ЛИНИЯ (/) (ДЛЯ НАВЕСН. ОБОРУД И ОТВАЛ)(№-) ГИДРАВЛИКА

1

203-62-32641

ELBOW

2

07002-12434

O-RING

3

21J-62-12230

JOINT

4

07002-12434

O-RING

5

22B-62-12150

JOINT

6

07002-12434

O-RING

7

203-62-63770

JOINT

8

07002-12434

O-RING

9

07236-10522

ELBOW

10

07002-12434

O-RING

11

07235-10628

ELBOW

12

07002-12434

O-RING

13

07235-10425

ELBOW

14

07002-12434

O-RING

15

232-60-14271

NIPPLE

16

07002-12434

O-RING

17

8233-62-3150

ELBOW

18

07002-11423

O-RING

18A

206-06-61130

SWITCH

18B

22B-06-13930

WIRING

18C

134-03-61410

BAND

18D

201-00-61320

PLATE¤ OPERATING,BLADE LEVER OPERATING PATTERN

19

203-62-61820

UNION

20

07002-12434

O-RING

21

07230-20522

UNION

22

07002-12434

O-RING

23

124-49-32341

ELBOW

24

07236-10522

ELBOW

25

203-62-61410

JOINT

26

07002-12434

O-RING

27

21Y-62-11340

GROMMET

28

21Y-62-11510

CLAMP

29

01010-81225

BOLT

30

01643-31232

WASHER

31

22B-62-14142

ELBOW

32

07002-13334

O-RING

33

07236-10628

ELBOW

34

07002-12434

O-RING
