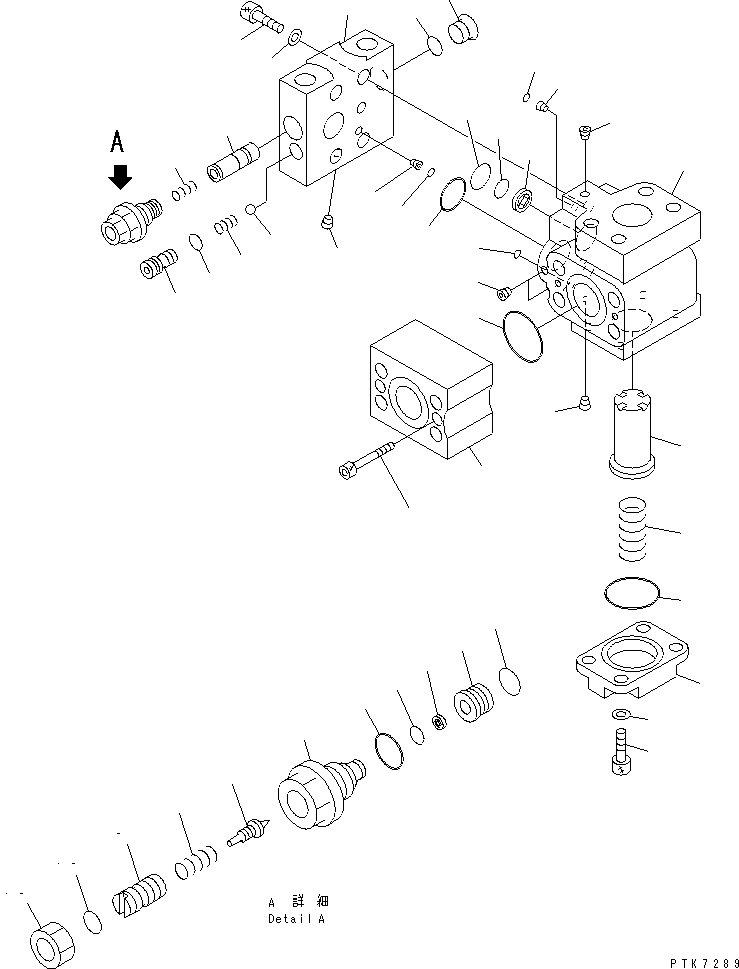

Запчасти Komatsu PC138US-2 ГЛАВН. КЛАПАН ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

702-21-09230

VALVE ASS'Y

1

702-21-55360

BLOCK

2

07000-13032

O-RING

3

01252-60545

BOLT

|4

702-21-09240

PILOT VALVE

|4

702-21-55100

VALVE ASS'Y,RELIEF

4

SLEEVE

5

COLLAR

6

FILTER

7

POPPET

8

SPRING

9

SCREW

10

NUT

11

O-RING

12

702-16-53920

O-RING

13

O-RING

14

07002-11623

O-RING

15

BLOCK

16

702-21-55310

VALVE

17

702-21-55460

SPRING

18

702-21-55420

O-RING

19

702-21-55520

O-RING

20

702-21-55440

O-RING

21

702-21-53120

FILTER

22

07000-11009

O-RING

23

07000-11010

O-RING

24

07000-11006

O-RING

25

702-21-55410

PLATE

26

01252-60820

BOLT

27

01643-50823

WASHER

28

702-21-55530

O-RING

29

BLOCK

30

SPOOL

31

702-21-55640

SPRING

32

702-21-55620

PLUG

33

07002-11423

O-RING

34

702-21-55710

SEAT

35

702-21-55720

SPRING

36

04260-00793

BALL

37

07000-11009

O-RING

38

PLUG

39

702-21-55470

ORIFICE

40

702-21-55670

ORIFICE

41

01252-61040

BOLT

42

01643-51032

WASHER

43

SCREW
