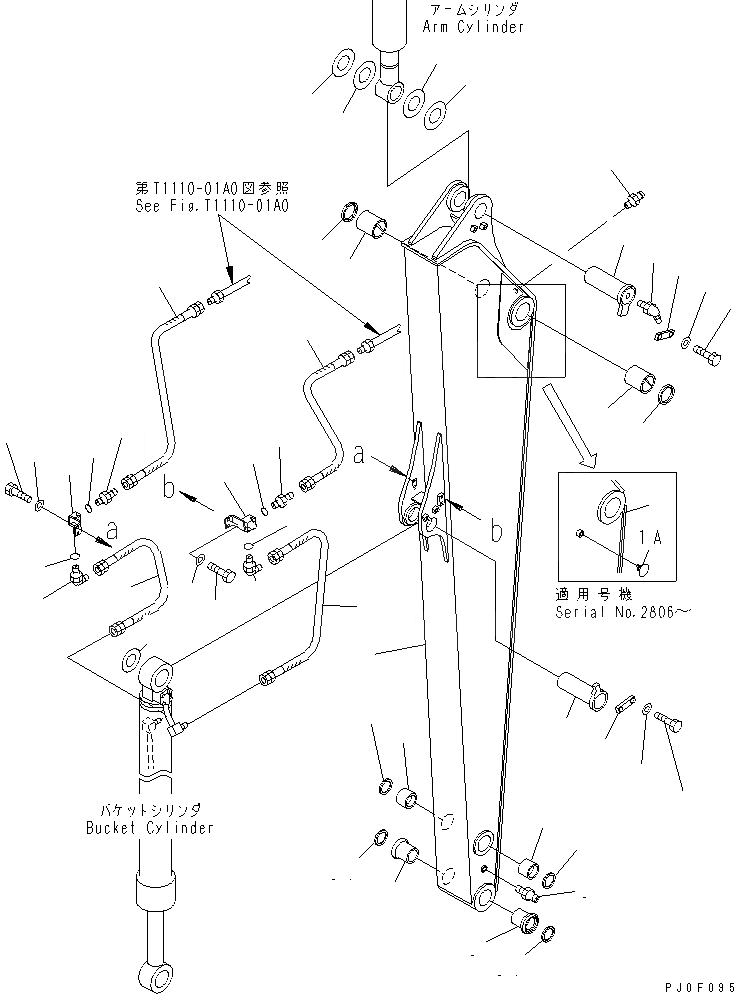

Запчасти Komatsu PC138US-2 УДЛИНН. РУКОЯТЬ (РУКОЯТЬ И ПАЛЕЦ) (YELНИЗ.) РАБОЧЕЕ ОБОРУДОВАНИЕ

|1

22B-943-0012

ARM ASS'Y

|1

22B-943-0011

ARM ASS'Y

1

ARM (YELLOW)

|1

ARM (YELLOW)

2

22B-70-12410

BUSHING

3

203-70-42182

BUSHING

4

203-70-56150

BUSHING

5

07020-00900

FITTING

6

07020-00000

FITTING

7

07096-20508

HOSE

8

07096-20408

HOSE

9

203-943-5620

ELBOW,L.H.

10

203-943-5130

ELBOW,R.H.

11

01010-81020

BOLT

12

01643-31032

WASHER

13

07235-10422

ELBOW

14

07230-20422

UNION

15

07230-20522

UNION

16

07235-10522

ELBOW

17

07002-12034

O-RING

18

07002-12434

O-RING

19

07096-20414

HOSE

20

07096-20514

HOSE

21

203-70-42121SA

PIN

22

21W-70-11310SA

PLATE

23

01010-81230

BOLT

24

01643-31232

WASHER

25

21Y-70-14790

SPACER¤ 1.0MM

26

21Y-70-14820

SPACER¤ 2.0MM

27

07020-00675

FITTING

28

202-70-52121SA

PIN (YELLOW)

29

21Y-70-14710

SPACER¤ 1.0MM

30

21W-70-11310SA

PLATE

31

01010-81230

BOLT

32

01643-31232

WASHER

33

07145-00070

SEAL

34

203-70-33210

SEAL
