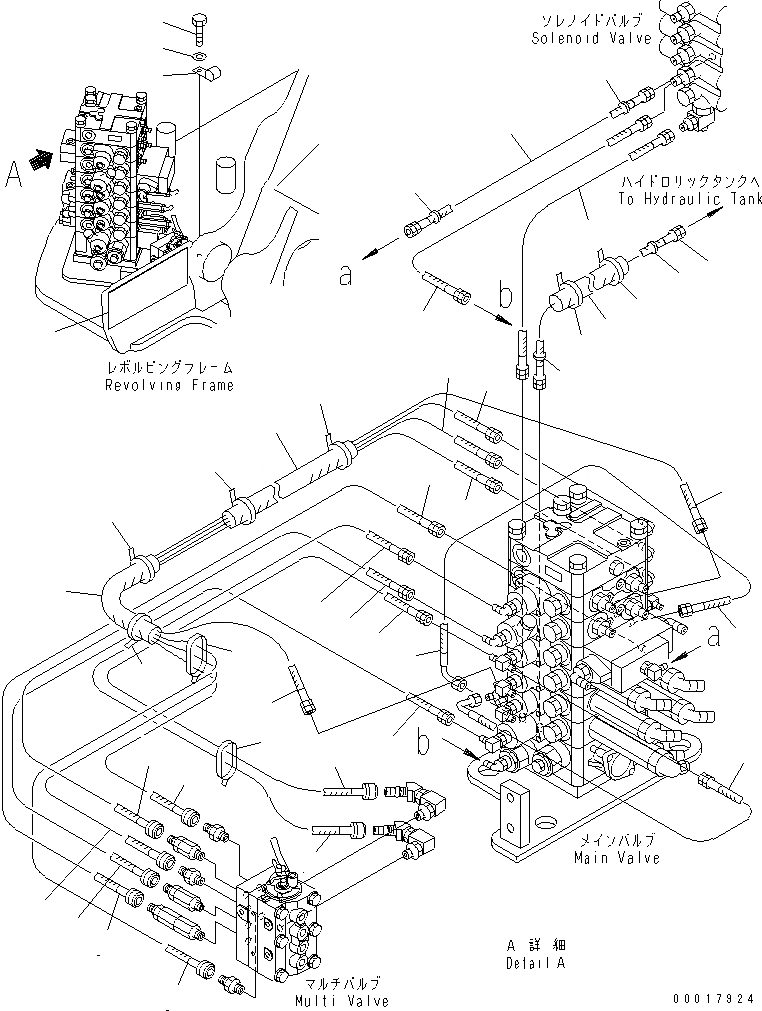

Запчасти Komatsu PC138US-2-AT РАСПРЕДЕЛИТ. КЛАПАН (MULTI PATTERN) (ОСНОВН. КЛАПАН ШЛАНГИ И КРЕПЛЕНИЕ ШЛАНГОВ) ГИДРАВЛИКА

1

207-62-72530

HOSE¤ 355MM

|1

21U-62-34760

BAND¤ RED

2

207-62-72530

HOSE¤ 355MM

|2

21U-62-34710

BAND¤ YELLOW

3

22B-62-18160

HOSE

|3

21U-62-34740

BAND¤ ORANGE

4

22B-62-18160

HOSE

|4

21U-62-34770

BAND¤ WHITE

5

22B-62-18170

HOSE

|5

21U-62-34750

BAND¤ BLUE

6

22B-62-18170

HOSE

|6

21U-62-34730

BAND¤ GREEN

7

22B-62-18170

HOSE

|7

21U-62-34720

BAND¤ BLACK

8

20Y-62-42140

HOSE¤ 750MM

|8

21U-62-34780

BAND¤ BROWN

9

22B-62-18150

HOSE

|9

21U-62-34750

BAND¤ BLUE

|9

21U-62-34770

BAND¤ WHITE

10

203-62-57930

MARK¤ 3

11

02760-003A4

HOSE

|11

21U-62-34750

BAND¤ BLUE

|11

21U-62-34770

BAND¤ WHITE

12

203-62-57920

MARK¤ 2

13

02760-003A5

HOSE

|13

21U-62-34760

BAND¤ RED

|13

21U-62-34730

BAND¤ GREEN

14

02760-002A7

HOSE¤ 750MM

|14

21U-62-34730

BAND¤ GREEN

|14

21U-62-34730

BAND¤ GREEN

15

02760-002A6

HOSE

16

02761-00205

HOSE

17

02761-00203

HOSE

18

22B-62-11320

PLATE

19

08034-20536

BAND

20

207-62-33690

CLIP

21

01010-81225

BOLT

22

01643-31232

WASHER

23

22B-62-11320

PLATE

24

08034-20536

BAND
