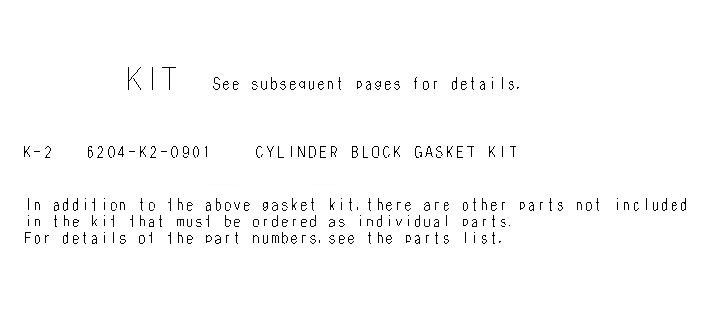

Запчасти Komatsu PC130F-7 КОМПЛЕКТ ПРОКЛАДОК БЛОКА ЦИЛИНДРОВ A

2

6204-K2-0901

GASKET KIT,CYLINDER BLOCK

|$2

07000-02065

O-RING

|$3

07000-02135

O-RING

|$4

07000-03040

O-RING

|$5

07000-03050

O-RING

|$6

07005-00812

GASKET

|$7

07005-01012

GASKET

|$8

07005-01412

GASKET

|$9

07005-02216

GASKET

|$10

6114-31-3330

WASHER

|$11

6208-21-1330

SEAL, REAR

|$12

6208-21-1310

SEAL, REAR

|$13

6141-21-1332

SEAL, REAR

|$14

6204-21-3510

SEAL, FRONT

|$15

6204-51-6122

O-RING

|$16

6206-21-3840

GASKET

|$17

THE FOLLOWING PARTS ARE NOT USED FOR THIS MODEL

2

01653-21212

WASHER

|$19

07000-02018

O-RING

|$20

07000-02020

O-RING

|$21

07000-02085

O-RING

|$22

O-RING

|$23

07000-02135

O-RING

|$24

07005-01812

GASKET

|$25

07005-03016

GASKET

|$26

08034-00414

BAND

|$27

08034-00519

BAND

|$28

6144-21-2500

SHIM ASS'Y

|$29

6204-21-3410

PACKING

|$30

6204-21-3451

GROMMET

|$31

6204-21-3460

GROMMET

|$32

6204-21-5280

GASKET

|$33

6204-21-6811

GASKET

|$34

6204-61-5181

GASKET

|$35

6204-61-5191

GASKET

|$36

6204-63-1130

GASKET

|$37

6206-61-1131

GASKET

|$38

6206-61-1730

GASKET

|$39

THE FOLLOWING PARTS ARE THE PARTS

|$40

NOT INCLUDED IN THE GASKET KIT.

2

6204-21-6820

GASKET

|$42

07005-01612

GASKET

|$43

07000-72070

O-RING

|$44

07000-73025

O-RING

|$45

6206-61-1731

GASKET
