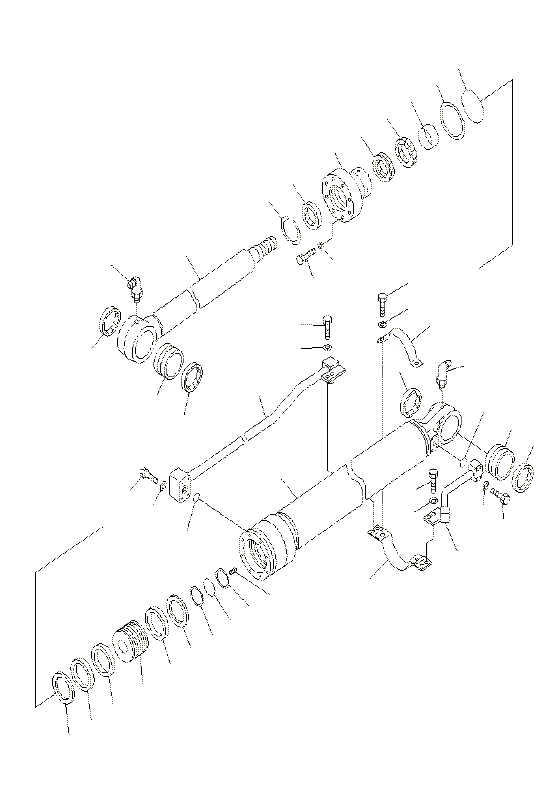

Запчасти Komatsu PC130F-7 ЦИЛИНДР КОВША (УДЛИНН. REACH)(ВНУТР. ЧАСТИ)(№J9-J9) Y

|$1

707-01-XF040

CYLINDER GROUP

|$2

=================

|$3

707-01-0F040

CYLINDER ASS'Y,BUCKET

1

707-13-95080

CYLINDER,BUCKET

2

707-76-65210

BUSHING

3

07145-00065

SEAL,DUST (KIT)

4

07020-00675

FITTING,GREASE

5

707-27-95921

HEAD,CYLINDER

6

707-52-90420

BUSHING

7

707-51-65030

PACKING,ROD (KIT)

8

707-51-65640

RING,BUFFER (KIT)

9

07000-15085

O-RING (KIT)

10

707-35-90970

RING,BACK-UP (KIT)

11

144-63-92170

SEAL,DUST (KIT)

12

07179-12079

RING,SNAP

13

01010-81465

BOLT

14

705-17-04980

WASHER

15

203-63-75121

ROD

16

707-76-65220

BUSHING

17

707-77-65110

SEAL,DUST (KIT)

18

07020-00675

FITTING,GREASE

19

707-36-95040

PISTON

20

707-44-95180

RING,PISTON (KIT)

21

707-39-95030

RING,WEAR (KIT)

22

707-44-95911

RING

23

01310-01016

SCREW

24

707-34-55020

O-RING (KIT)

25

707-35-90610

RING,BACK-UP (KIT)

26

707-86-47490

TUBE

27

202-63-74580

TUBE

28

07000-13025

O-RING (KIT)

29

01010-80850

BOLT

30

01643-30823

WASHER

31

707-88-21730

BAND

32

707-88-25120

BRACKET

33

07372-21035

BOLT

34

01643-51032

WASHER

35

01010-81025

BOLT

36

01643-31032

WASHER

|$40

==================

|$41

707-99-25870

SERVICE KIT
