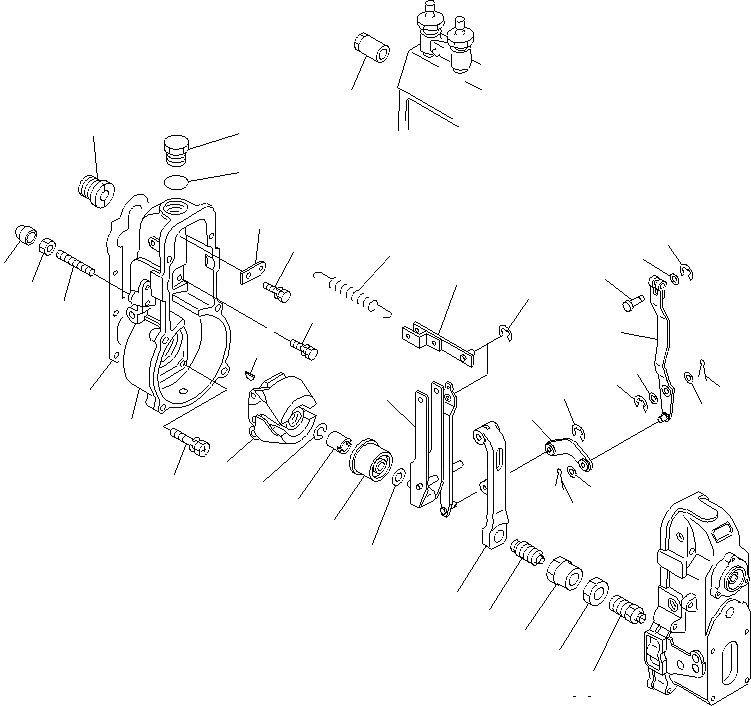

Запчасти Komatsu PC130F-7 ТОПЛ. НАСОС (РЕГУЛЯТОР) (/) (ВНУТР. ЧАСТИ) A

|$1

620-87-11210

INJECTION PUMP

|$2

THIS ASSEMBLY CONSISTS OF ALL PARTS

|$3

SHOWN IN FIGS.A4010-B0W8 TO A4010-F0W8.

|$4

DK105401-1441

GOVERNOR ASS'Y

|$5

THIS ASSEMBLY CONSISTS OF ALL PARTS

|$6

SHOWN IN FIGS.A4010-D0W8 AND A4010-E0W8.

1

DK154000-6300

HOUSING

2

DK029632-5070

O-RING

3

DK154007-2900

PLUG

4

DK154007-0200

ADAPTER

5

DK020018-1840

BOLT

6

DK154375-9020

PLATE

7

DK029010-6810

BOLT

7

DK020106-1840

BOLT

8

DK154013-5000

SCREW

9

DK154011-4900

NUT,LOCK

10

DK154050-6120

LIMITER

11

DK154101-0520

FLYWEIGHT ASS'Y

12

DK025803-1610

KEY, 16MM,WOODRUFF

13

DK029321-2020

WASHER,SPRING

14

DK029231-2030

NUT

15

DK154123-0120

SLEEVE

16

DK029311-0010

SHIM, 0.20MM

|$24

DK029311-0180

SHIM, 0.30MM

|$25

DK029311-0190

SHIM, 0.40MM

|$26

DK139410-0000

SHIM, 0.50MM

|$27

DK029311-0210

SHIM, 1.00MM

|$28

DK139410-0100

SHIM, 1.50MM

|$29

DK139410-3000

SHIM, 2.00MM

|$30

DK139410-3100

SHIM, 3.00MM

|$31

DK139410-3200

SHIM, 4.00MM

17

DK154154-4000

SPRING

18

DK154217-2920

GUIDE LEVER ASS'Y

19

DK029310-5170

SHIM

20

DK025520-1210

PIN,SPLIT

21

DK154230-3920

LINK

22

DK154236-4100

LEVER,TENSION

23

DK154390-0000

GASKET

24

DK154401-3620

LEVER

25

DK154401-1320

LINK

26

DK016010-0540

RING,SNAP

27

DK154222-6200

PIN

28

DK029300-4010

WASHER

29

DK016010-0440

RING,SNAP

30

DK154185-7120

CAPSULE
