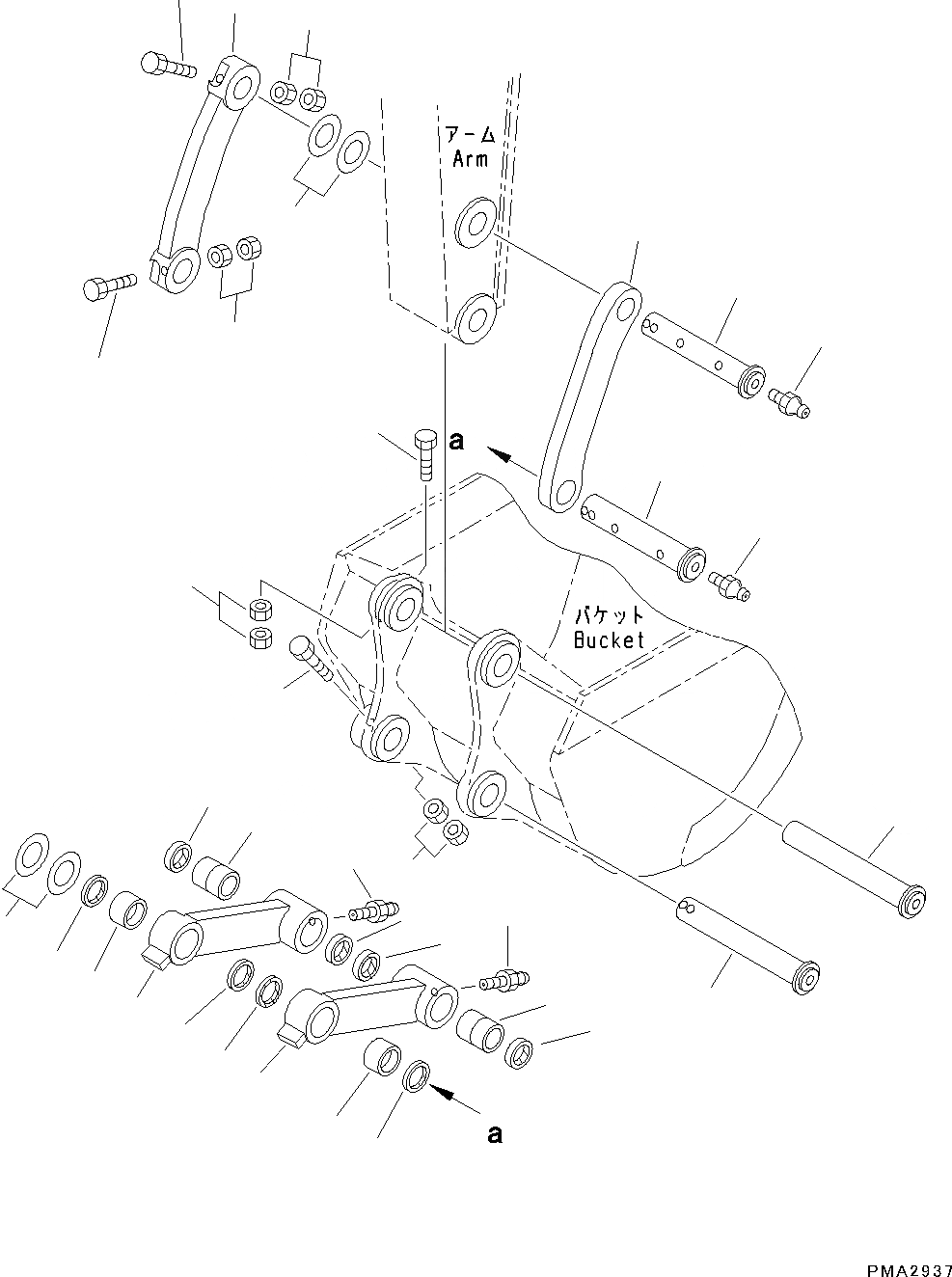

Запчасти Komatsu PC130-8 СОЕДИНЕНИЕ КОВШАAGE, УСИЛ. T РАБОЧЕЕ ОБОРУДОВАНИЕ

|1

203-70-01830

Link Assembly,LHS

1

Link,LHS

2

22B-70-23660

Bushing

3

22B-70-23680

Bushing

4

22B-70-12170

Seal, Dust

5

21W-70-41440

Seal, Dust

|6

203-70-01840

Link Assembly,RHS

6

Link,RHS

7

22B-70-23660

Bushing

8

22B-70-23680

Bushing

9

22B-70-12170

Seal, Dust

10

21W-70-41440

Seal, Dust

11

07020-00000

Fitting, Grease

12

203-70-54110

Link,LHS

13

203-70-54120

Link,RHS

14

202-70-64151

Pin

15

07020-00000

Fitting, Grease

16

21Y-70-14770

Spacer, T=1.0mm

|16

21Y-70-14770

Spacer, T=1.0mm

|16

21Y-70-14780

Spacer, T=2.0mm

|16

21Y-70-14780

Spacer, T=2.0mm

17

01011-81620

Bolt

18

01580-11613

Nut

19

202-70-64163

Pin

20

07020-00000

Fitting, Grease

21

21Y-70-14710

Spacer, T=1.0mm

|21

21Y-70-14850

Spacer, T=2.0mm

22

01011-81620

Bolt

23

01580-11613

Nut

24

203-70-44380

Pin

25

01011-81640

Bolt

26

01580-11613

Nut

27

203-70-44380

Pin

28

01011-81670

Bolt

29

01580-11613

Nut
