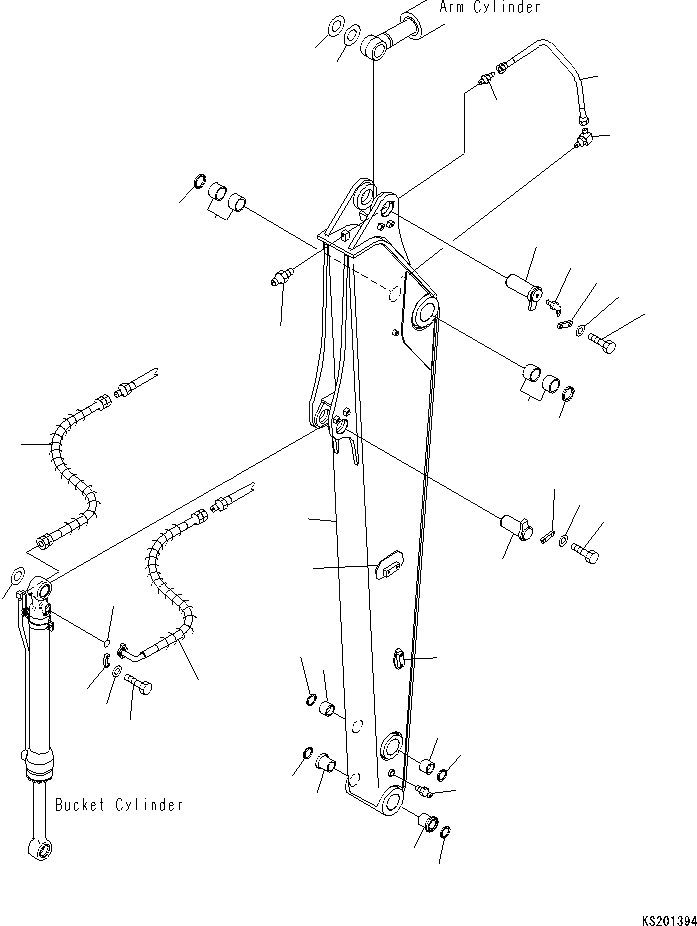

Запчасти Komatsu PC130-8 РУКОЯТЬ, РУКОЯТЬ (.M) T РАБОЧЕЕ ОБОРУДОВАНИЕ

|$1

22B-70-K1110

Arm Assembly

1

Arm

2

20G-973-K130

Bracket, Welded

3

20E-70-11220

Bracket, Welded

4

22B-70-23630

Bushing

5

203-70-42182

Bushing

6

22B-70-23670

Bushing

7

07020-00000

Fitting, Grease

8

22B-62-24140

Hose

9

02756-20413

Hose, Face Seal Type

10

07371-30500

Flange, Split

11

01010-80830

Bolt

12

01643-50823

Washer

13

07000-13022

O-Ring

14

203-70-42121

Pin

15

205-70-66580

Plate

16

01010-81230

Bolt

17

01643-31232

Washer

18

07020-00675

Fitting, Grease

19

21Y-70-14830

Spacer, T=1.0mm

20

21Y-70-14840

Spacer, T=2.0mm

21

202-70-52121

Pin

22

21Y-70-14710

Spacer, T=1.0mm

23

205-70-66580

Plate

24

01010-81230

Bolt

25

01643-31232

Washer

26

07145-00070

Seal, Dust

27

21W-70-41440

Seal, Dust

28

22B-70-15210

Tube

29

20Y-70-11540

Connector

30

07020-00000

Fitting, Grease

31

20Y-70-11590

Elbow
