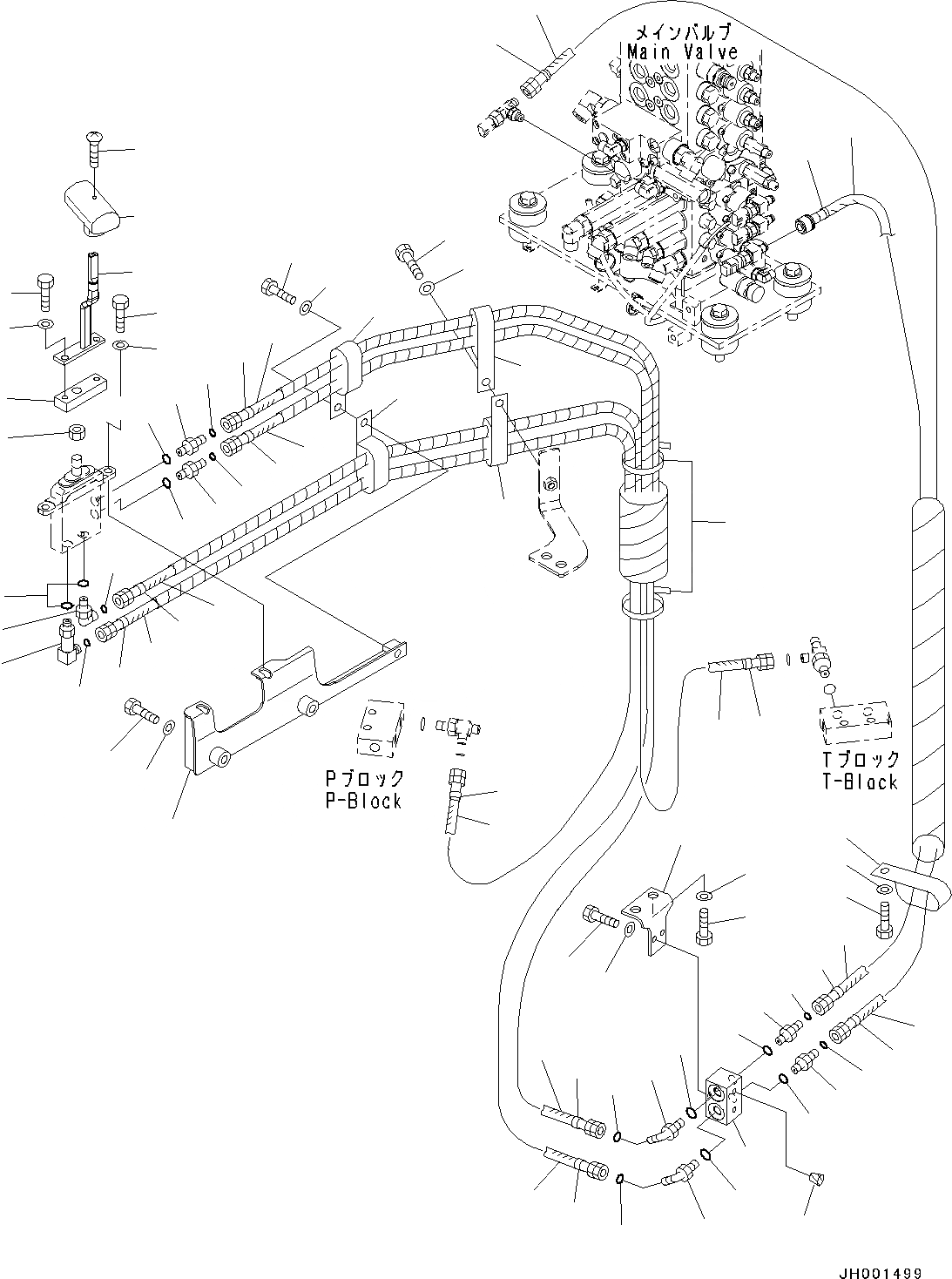

Запчасти Komatsu PC130-8 КАБИНА, -АКТУАТОР, ОТВАЛ СПЕЦ-ЯIFICATION K OPERATORґS ОБСТАНОВКА И СИСТЕМА УПРАВЛЕНИЯ

1

01010-D1025

Bolt

2

01643-71032

Washer

3

20Y-43-42110

Bracket

4

01010-81040

Bolt

5

01643-31032

Washer

6

21W-62-43980

Elbow

7

02896-11008

O-Ring

8

11Y-62-12140

Nipple

9

02896-11008

O-Ring

10

21W-62-43990

Elbow

11

02896-11008

O-Ring

12

11Y-62-12140

Nipple

13

02896-11008

O-Ring

14

07000-12011

O-Ring

15

02760-00213

Hose, Face Seal Type

16

02760-00215

Hose, Face Seal Type, L=1500mm

17

20Y-62-22790

Band, Red

18

20Y-62-22820

Band, Blue

19

20Y-62-22840

Band, Black

20

20Y-62-22860

Band, Brown

21

04435-51810

Clip

22

01010-81025

Bolt

23

01643-31032

Washer

24

20Y-43-31360

Lever

25

01010-D0825

Bolt

26

01643-70823

Washer

27

201-43-62120

Knob

28

01225-70520

Screw, Philips Head

29

22U-43-21730

Seat

30

01583-11408

Nut

31

08034-20536

Band

32

04435-51210

Clip

33

01010-81016

Bolt

34

01643-31032

Washer

35

20Y-62-43440

Bracket

36

01010-81020

Bolt

37

01643-31032

Washer

38

20Y-62-43430

Block

39

01010-80820

Bolt

40

01643-30823

Washer

41

02781-0021D

Union

42

02896-11008

O-Ring

43

07002-11423

O-Ring

44

203-62-14470

Hose

45

02760-00227

Hose, Face Seal Type

46

20Y-62-22840

Band, Black

47

20Y-62-22860

Band, Brown

48

02782-1021A

Elbow

49

02782-10210

Elbow

50

02896-11008

O-Ring

51

07002-11423

O-Ring

52

07043-70108

Plug
