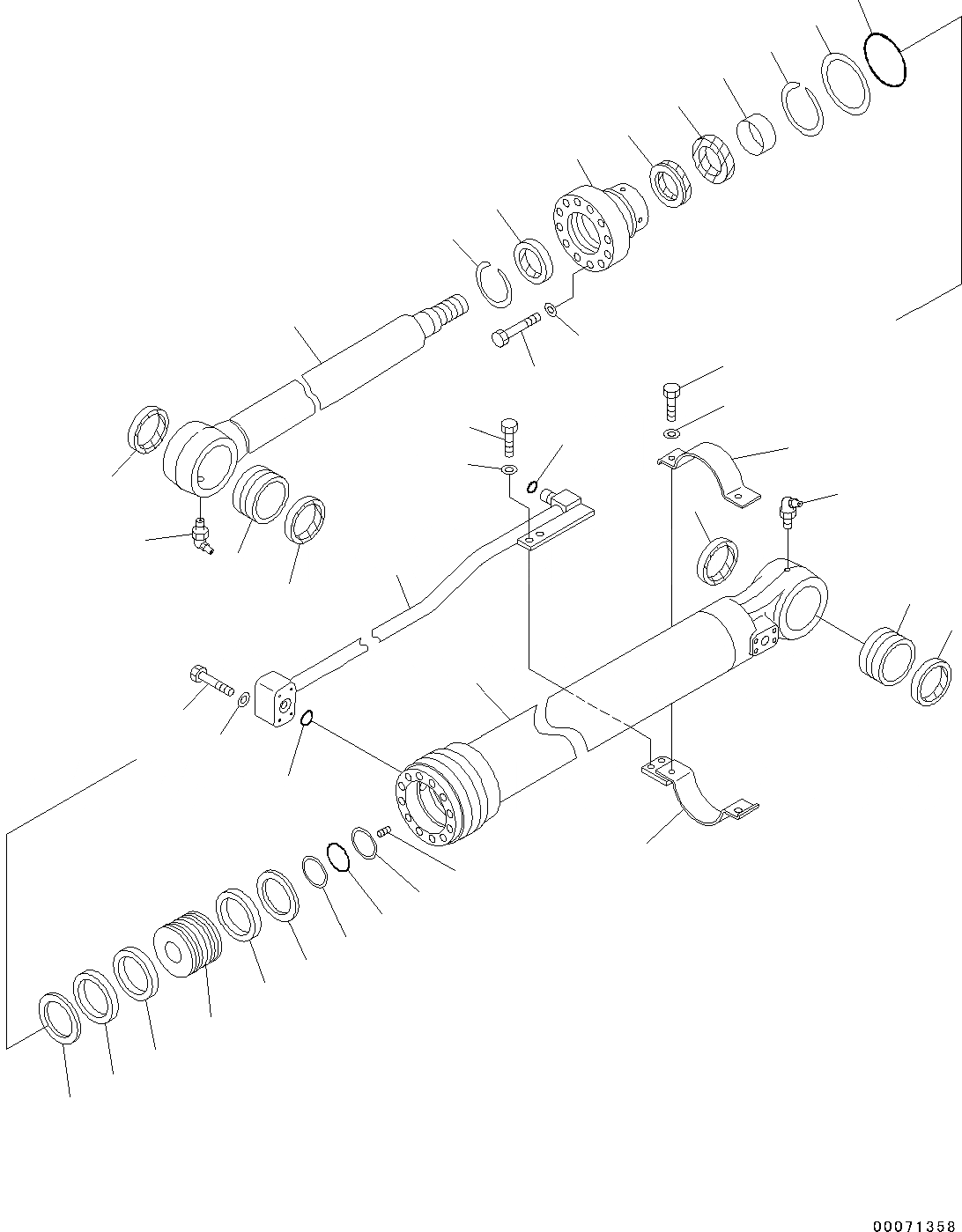

Запчасти Komatsu PC130-8 ЦИЛИНДР КОВША, ЧАС. СИСТ. СМАЗКИ ТИП ЦИЛИНДР КОВША, ЧАС. СИСТ. СМАЗКИ ТИП

|1

707-01-0AK10

Cylinder Assembly

1

707-13-95130

Cylinder

2

707-58-65801

Rod

3

707-76-65210

Bushing

4

07145-00065

Seal, Dust, (Kit : K05)

5

07020-00675

Fitting, Grease

6

707-76-65520

Bushing

7

22B-70-12170

Seal, Dust, (Kit : K05)

8

07020-00675

Fitting, Grease

9

707-27-95650

Head

10

144-63-92170

Seal, Dust, (Kit : K05)

11

07179-12079

Ring, Snap

12

707-51-65030

Packing, Rod, (Kit : K05)

13

707-51-65650

Ring, Buffer, (Kit : K05)

14

07000-15085

O-ring, (Kit : K05)

15

707-52-90421

Bushing

16

707-75-65110

Ring, Snap

17

707-35-90970

Ring, Back-up, (Kit : K05)

18

01010-81465

Bolt

19

705-17-04980

Washer

20

707-36-95040

Piston

21

707-44-95150

Ring, Piston, (Kit : K05)

22

707-39-95030

Ring, Wear, (Kit : K05)

23

707-34-55020

O-ring, (Kit : K05)

24

707-44-95911

Ring

25

01310-01016

Screw

26

707-35-90610

Ring, Back-up, (Kit : K05)

27

707-86-55550

Tube

28

02896-11012

O-ring, (Kit : K05)

29

707-88-50120

Bracket

30

707-88-21730

Band

31

07372-21035

Bolt

32

01643-51032

Washer

33

01010-80850

Bolt

34

01643-30823

Washer

35

01010-81025

Bolt

36

01643-31032

Washer

37

07000-13025

O-ring, (Kit : K05)
