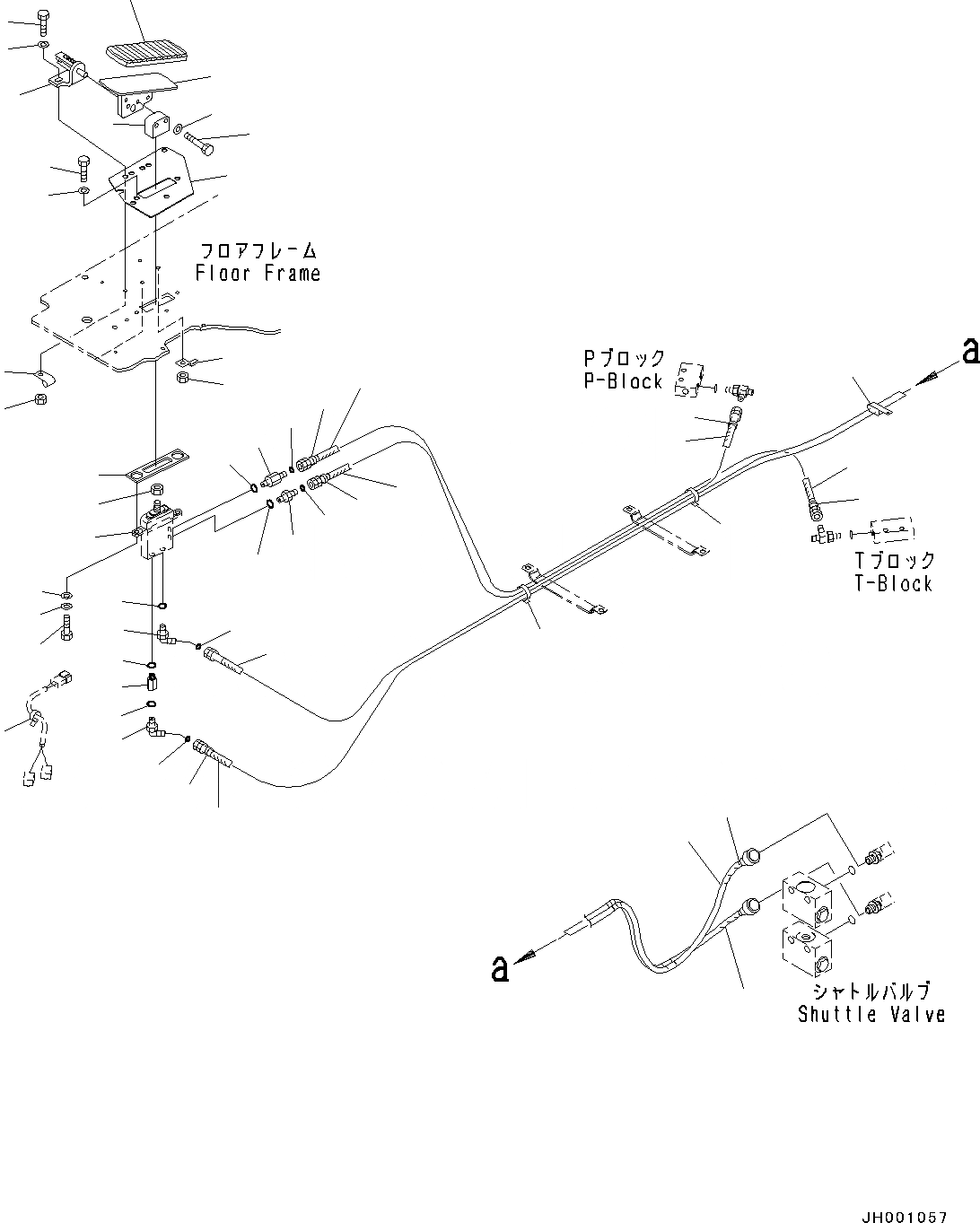

Запчасти Komatsu PC130-8 КАБИНА, -АКТУАТОР(№8-) КАБИНА, -АКТУАТОР

1

22U-54-25660

Seal

2

20Y-43-41760

Seat

3

01010-81025

Bolt

4

01643-31032

Washer

5

01643-31032

Washer

6

20Y-62-25360

Bracket

7

01010-D1035

Bolt

8

01643-71032

Washer

9

20Y-53-14220

Pedal

10

01010-D1045

Bolt

11

01643-71032

Washer

12

22U-54-25541

Plate

13

01010-81025

Bolt

14

01643-31032

Washer

15

207-43-81240

Cap

16

20T-910-8660

Nipple

17

07000-12011

O-ring

18

21W-62-43980

Elbow

19

02896-11008

O-ring

20

07000-12011

O-ring

21

20Y-62-43470

Nipple

22

02896-11008

O-ring

23

11Y-62-12140

Nipple

24

02896-11008

O-ring

25

07000-12011

O-ring

26

203-62-71860

Hose

27

208-62-72480

Hose, L=1080mm

28

208-62-72940

Hose

29

20Y-62-52330

Hose, L=900mm

30

20Y-62-22790

Band, Red

31

20Y-62-22810

Band, Yellow

32

20Y-62-22820

Band, Blue

33

08034-20519

Band

34

04435-51210

Clip

35

01583-11408

Nut

36

08193-21012

Clip

37

01580-01008

Nut

38

08034-20536

Band

39

04434-50610

Clip

40

01580-01008

Nut

41

702-16-04290

Valve, Pilot
