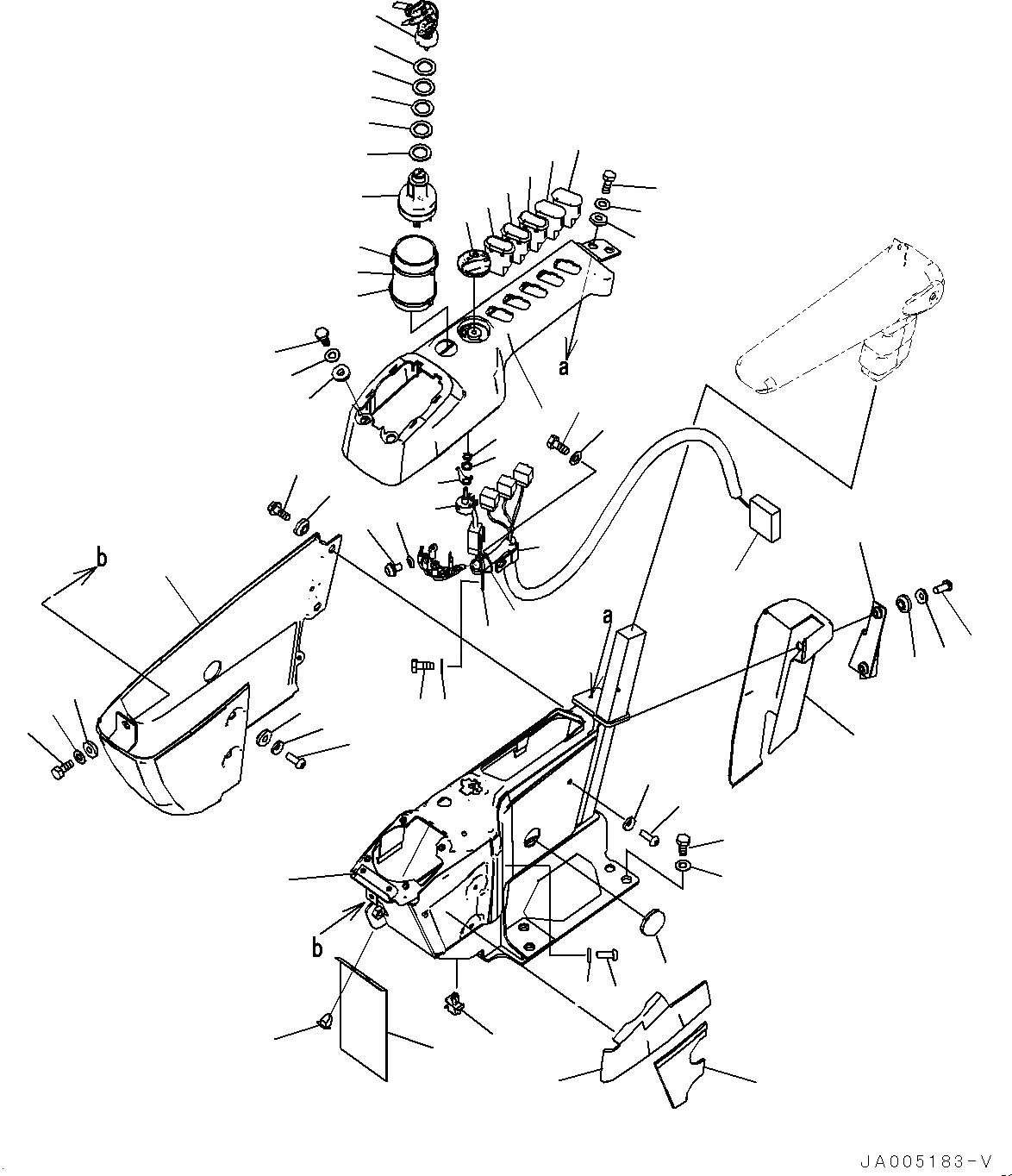

Запчасти Komatsu PC130-8 КАБИНА, ПОЛ, КОНСОЛЬ, ПРАВ. (№8-) КАБИНА, КАБИНА ROPS, ЗАЩИТА ОТ ВАНДАЛИЗМА, С AMBER COLOR WARNING МИГАЛКА, AM-FM РАДИО, ASIA И OCEANIA, VOLT POWER ПОДАЮЩ.

1

20Y-43-41314

Frame

1

20Y-43-41313

Frame

2

01010-D1230

Bolt

3

01643-71232

Washer

4

20Y-43-41631

Sheet

5

22U-43-23251

Sheet

6

22U-43-23290

Clip

7

20Y-43-41324

Cover

7

20Y-43-41323

Cover

8

20Y-43-41661

Sheet

9

01010-80616

Bolt

10

01643-30623

Washer

11

20Y-43-41290

Collar

12

20Y-43-41332

Cover

13

01245-00616

Screw

14

01643-70623

Washer

15

01010-80616

Bolt

16

01643-30623

Washer

17

01435-00612

Bolt

18

20Y-43-41290

Collar

19

20Y-43-41353

Cover

20

20Y-43-42120

Bracket

21

01245-00620

Screw

22

01643-70623

Washer

23

20Y-43-41290

Collar

24

01245-00616

Screw

25

01643-70623

Washer

26

09415-02512

Cap

27

08086-20000

Switch, Starting

28

20Y-43-41740

Plate

29

20Y-43-41750

Washer

30

20Y-43-41790

Washer

31

20Y-43-41671

Sheet

32

08034-20519

Band

33

22U-06-22380

Potentiometer

34

22U-06-22460

Spring

35

20Y-43-41781

Knob

35

20Y-43-41780

Knob

36

20Y-06-42110

Switch, Lock

37

20Y-06-42121

Switch, Lamp

38

20Y-06-42130

Switch, Beacon

39

20Y-06-42190

Cover

40

20Y-06-41130

Wiring Harness

41

08034-20414

Band

42

01023-10508

Screw

43

01601-20513

Washer

44

22U-43-23260

Clip

45

04434-51710

Clip

46

01010-81016

Bolt

47

01643-31032

Washer

48

04434-51410

Clip

49

01010-81016

Bolt

50

01643-31032

Washer
