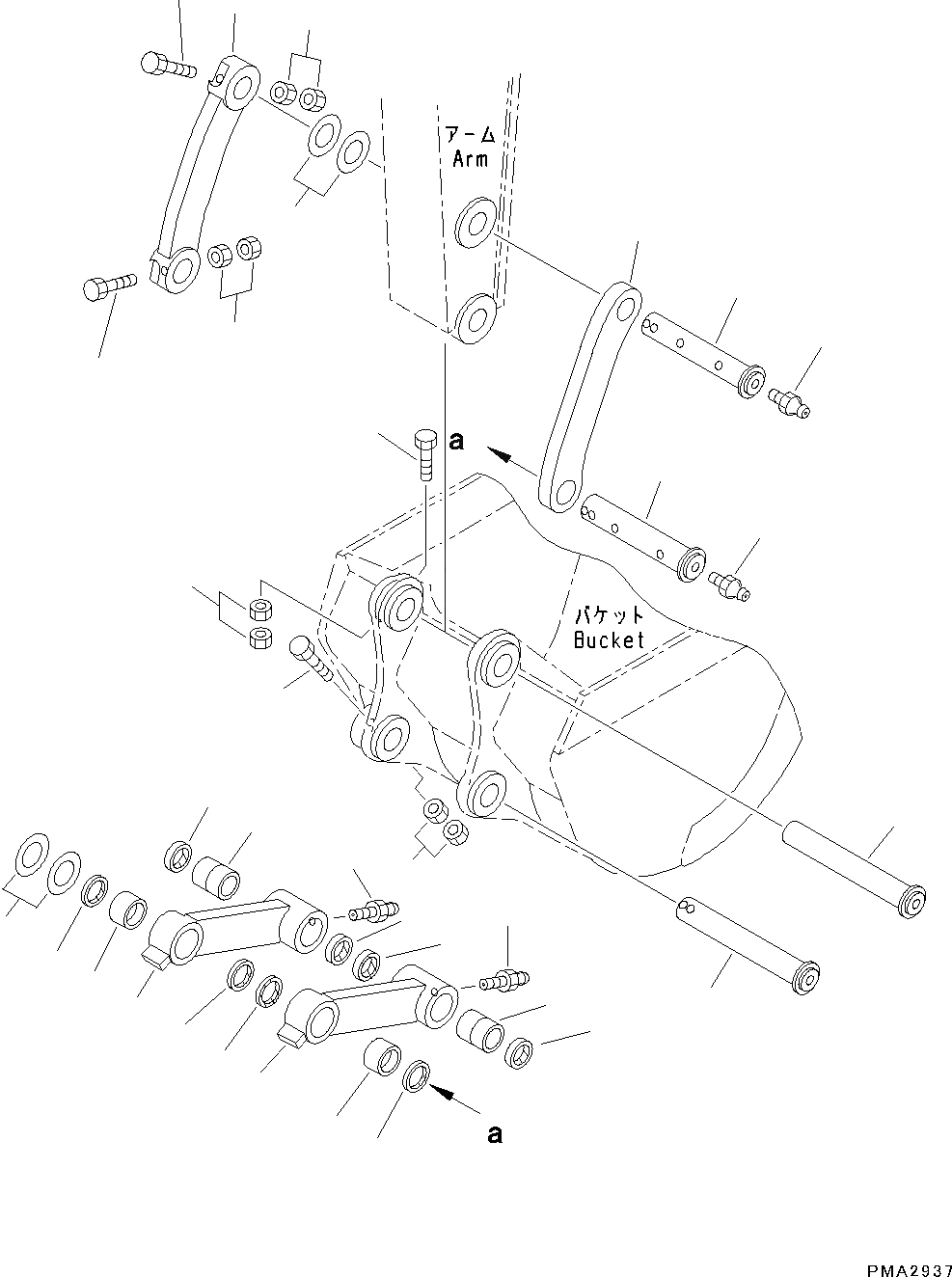

Запчасти Komatsu PC130-8 СОЕДИНЕНИЕ КОВШАAGE (№8-) СОЕДИНЕНИЕ КОВШАAGE, УСИЛ.

|$0

203-70-01830

Link Assembly,L.H.

1

Link

2

22B-70-23660

Bushing

3

22B-70-23680

Bushing

4

22B-70-12170

Seal, Dust

5

21W-70-41440

Seal, Dust

|$6

203-70-01840

Link Assembly,R.H.

6

Link

7

22B-70-23660

Bushing

8

22B-70-23680

Bushing

9

22B-70-12170

Seal, Dust

10

21W-70-41440

Seal, Dust

11

07020-00000

Fitting, Grease

12

203-70-54110

Link,L.H.

13

203-70-54120

Link,R.H.

14

202-70-64151

Pin

15

07020-00000

Fitting, Grease

16

21Y-70-14770

Spacer, T=1.0mm

16

21Y-70-14780

Spacer, T=2.0mm

17

01011-81620

Bolt

18

01580-11613

Nut

19

202-70-64163

Pin

20

07020-00000

Fitting, Grease

21

21Y-70-14710

Spacer, T=1.0mm

21

21Y-70-14850

Spacer, T=0.20mm

22

01011-81620

Bolt

23

01580-11613

Nut

24

203-70-44380

Pin

25

01011-81640

Bolt

26

01580-11613

Nut

27

203-70-44380

Pin

28

01011-81670

Bolt

29

01580-11613

Nut
