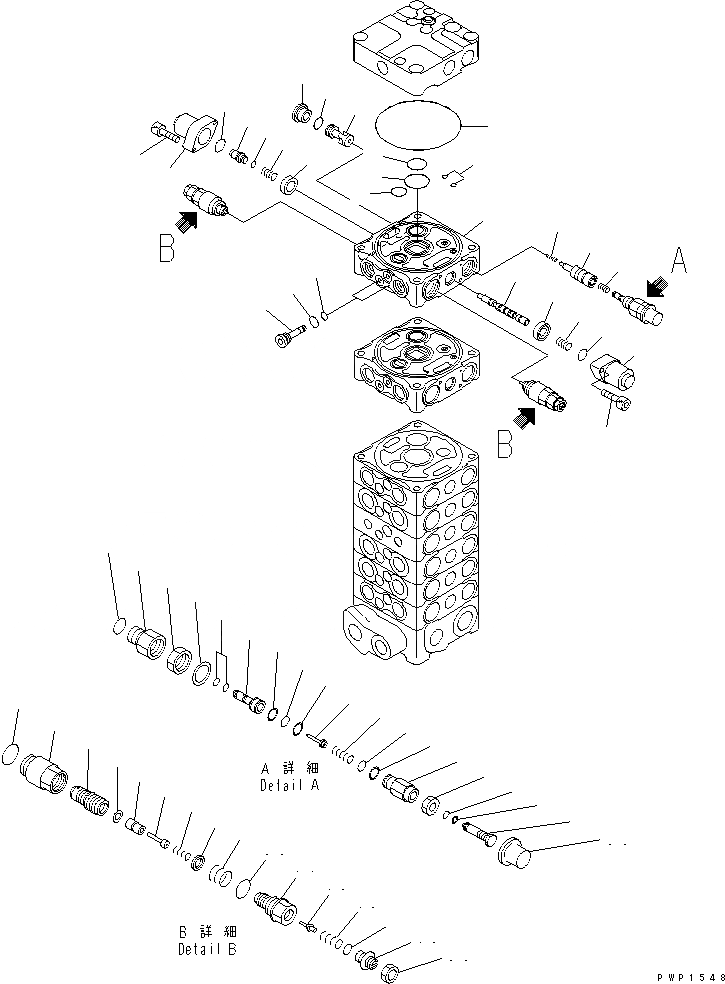

Запчасти Komatsu PC130-6K ОСНОВН. КЛАПАН (/) (8-КЛАПАН) (ДЛЯ 2-СЕКЦИОНН. СТРЕЛЫ) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

723-58-12605

CONTROL VALVE

|1

723-51-01700

VALVE ASS'Y

1

BLOCK,VALVE

2

144-14-54610

O-RING

3

723-56-31720

O-RING

4

723-56-31730

O-RING

5

702-75-11520

O-RING

6

07000-11008

O-RING

7

SPOOL,SERVICE

8

PLUG

9

07002-11223

O-RING

10

723-56-31210

RETAINER

11

723-36-14110

SPRING

12

723-56-31510

CASE

13

702-21-55450

O-RING

14

01252-60630

BOLT

15

VALVE

16

723-56-41710

SPRING

17

723-26-15230

PLUG

18

07002-12434

O-RING

19

VALVE

20

723-56-41750

SPRING

|21

723-50-42103

VALVE ASS'Y

21

SLEEVE

22

07000-13024

O-RING

23

SEAT

24

SEAL

25

POPPET

26

SPRING

27

PLUG

28

O-RING

29

RING,BACK-UP

30

SCREW

31

O-RING

32

RING

33

NUT

34

PLATE

35

NUT

36

CAP

37

723-56-31640

PLUG

38

07002-11623

O-RING

39

07000-11008

O-RING

|40

709-70-74600

VALVE ASS'Y

40

SLEEVE

41

SLEEVE

42

POPPET

43

PISTON

44

PLUG

45

POPPET

46

SCREW

47

SPRING

48

SPRING

49

SPRING

50

SEAL

51

SEAL

52

709-25-11390

O-RING

53

O-RING

54

O-RING

55

NUT
