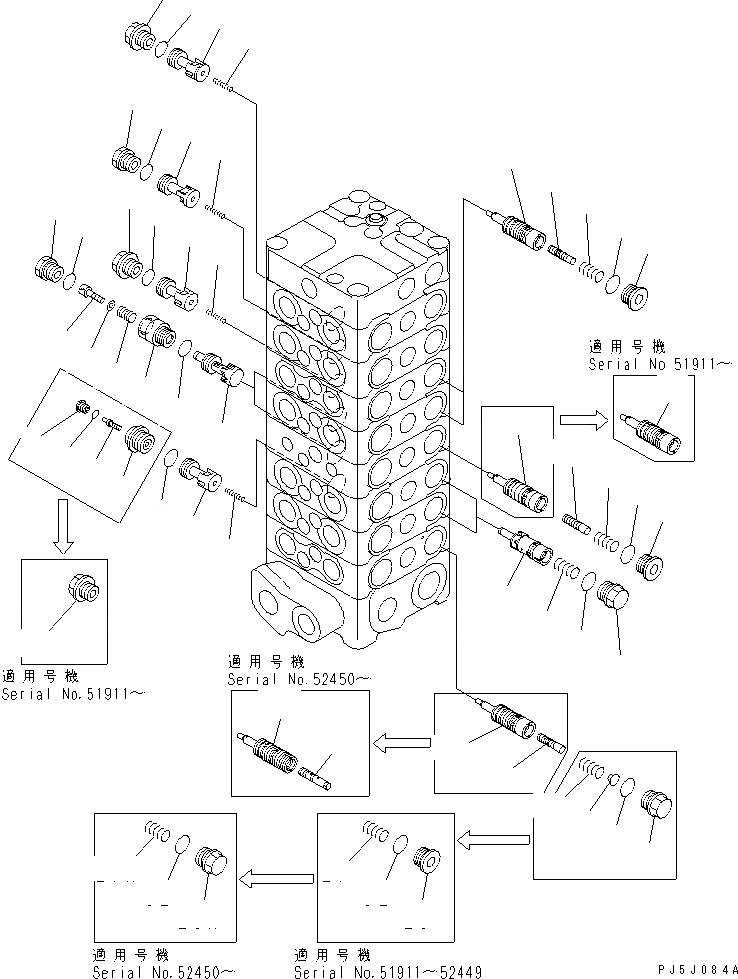

Запчасти Komatsu PC130-6E ОСНОВН. КЛАПАН (8-КЛАПАН) (/)(№-) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ
№
Артикул
Название
Примечание
Количество
|1
723-58-12305
CONTROL VALVE
|1
723-58-12304
CONTROL VALVE
|1
723-58-12303
CONTROL VALVE
|1
723-58-12302
CONTROL VALVE
|1
723-58-12301
CONTROL VALVE
|1
723-58-12300
CONTROL VALVE
|1
723-58-11303
CONTROL VALVE
|1
723-58-11302
CONTROL VALVE
|1
723-58-11301
CONTROL VALVE
|1
723-58-11300
CONTROL VALVE
|1
BODY GROUP
|1
BODY GROUP
|1
BODY GROUP
|1
BODY GROUP
|1
BODY GROUP
|1
BODY GROUP
|1
BODY GROUP
1
VALVE
|1
VALVE
2
VALVE
|2
VALVE
|2
VALVE
3
VALVE
|3
VALVE
4
VALVE
|4
VALVE
|4
VALVE
5
VALVE
6
PISTON
7
723-56-41810
PLUG
8
723-11-18190
PLUG
9
07002-11023
O-RING
10
723-56-41721
SPRING
11
01643-30623
WASHER
12
01252-60610
BOLT
13
723-56-41821
PLUG
14
723-56-41830
PLUG
15
07002-12034
O-RING
16
723-56-41710
SPRING
17
723-56-41840
PLUG
|17
723-56-41840
PLUG
18
07000-13024
O-RING
19
723-26-15230
PLUG
20
07002-12434
O-RING
21
VALVE
|21
VALVE
|21
VALVE
21A
VALVE
22
VALVE
23
VALVE SUB ASS'Y
|23
VALVE SUB ASS'Y
23A
VALVE SUB ASS'Y
24
PISTON
|24
PISTON
25
PISTON
|25
PISTON
26
PISTON
27
723-56-41730
SPRING
|27
723-56-41730
SPRING
|27
723-56-41730
SPRING
27A
723-56-41760
SPRING
28
723-56-41740
SPRING
|28
723-56-41740
SPRING
29
723-26-15230
PLUG
|29
723-26-15230
PLUG
|29
723-26-15230
PLUG
29A
723-56-41880
PLUG
30
723-56-41850
PLUG
|30
723-56-41850
PLUG
31
723-56-41920
RETAINER
32
07002-12434
O-RING
Выбрано товаров: 71
