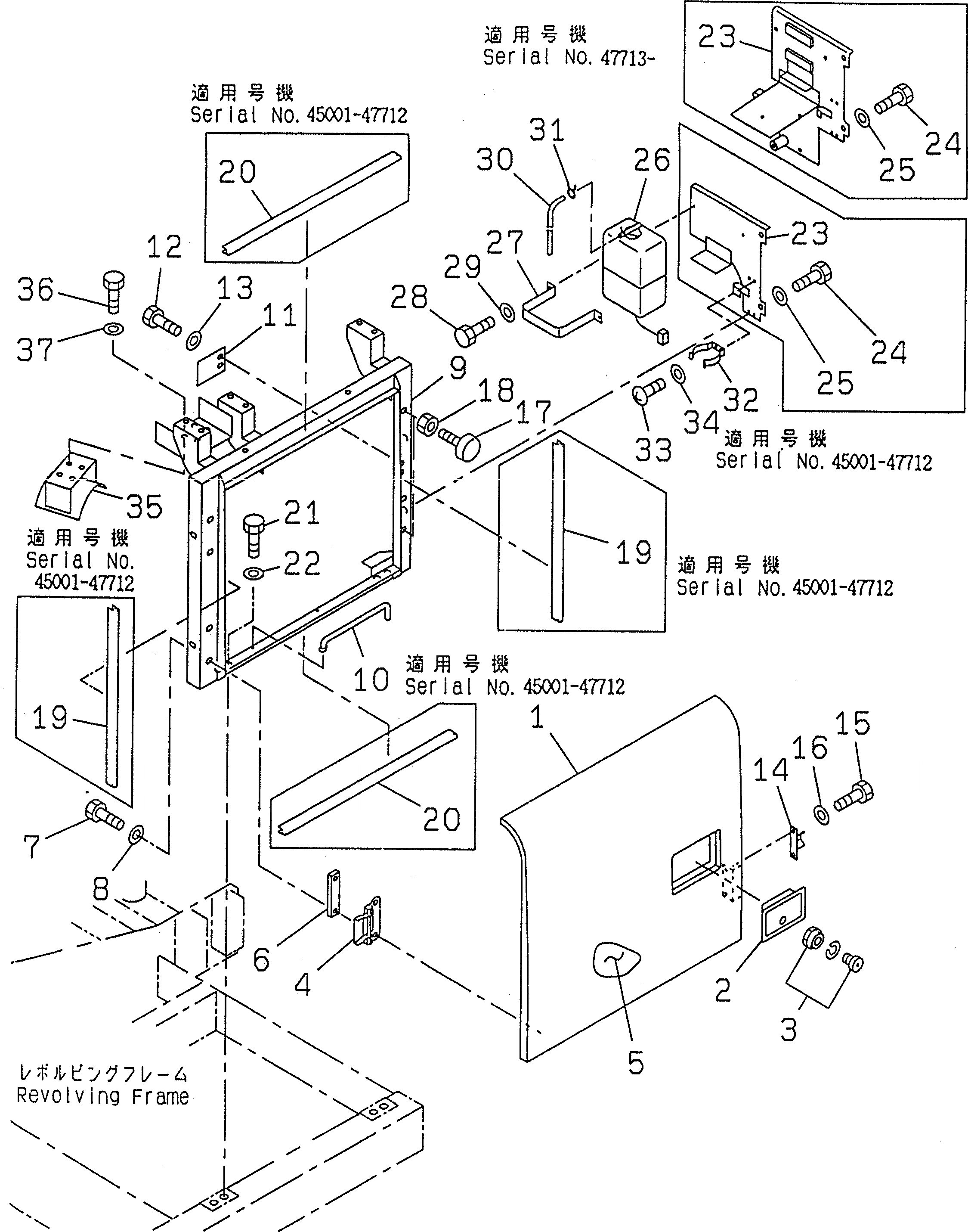

Запчасти Komatsu PC130-6 ДВЕРЬ ЛЕВ.(№9-8) ЧАСТИ КОРПУСА

1

203-54-63960

COVER,L.H.

2

421-54-11372

LOCK ASS'Y (WELDED)

3

421-54-11381

LOCK

4

203-54-62180

HINGE (WELDED)

5

203-54-62251

SHEET

6

203-54-63750

BRACKET

7

01010-50616

BOLT

8

01643-30623

WASHER

9

203-54-62190

PLATE

10

01010-51235

BOLT

11

01643-31232

WASHER

12

203-54-63730

FRAME

13

20Y-54-29232

BAR

14

20Y-54-28182

PLATE

14

20Y-54-28181

PLATE

15

01010-51220

BOLT

16

01643-31232

WASHER

17

203-54-63830

STOPPER

18

01580-11008

NUT

19

20Y-54-29261

SEAL

20

203-54-63251

SEAL

21

01010-51230

BOLT

22

01643-31232

WASHER

23

203-03-61630

BRACKET

23

203-03-61191

BRACKET

24

01010-51220

BOLT

25

01643-31232

WASHER

26

20Y-06-15240

TANK ASS'Y,RESERVE (FOR RADIATOR)

27

203-03-56650

BRACKET

28

01010-50820

BOLT

29

01643-30823

WASHER

30

20Y-03-21450

HOSE

31

206-03-43340

CLIP

32

203-54-63230

CLAMP

33

01220-40616

SCREW

34

01641-20608

WASHER

35

203-54-63191

BRACKET

36

01010-51230

BOLT

37

01643-31232

WASHER
