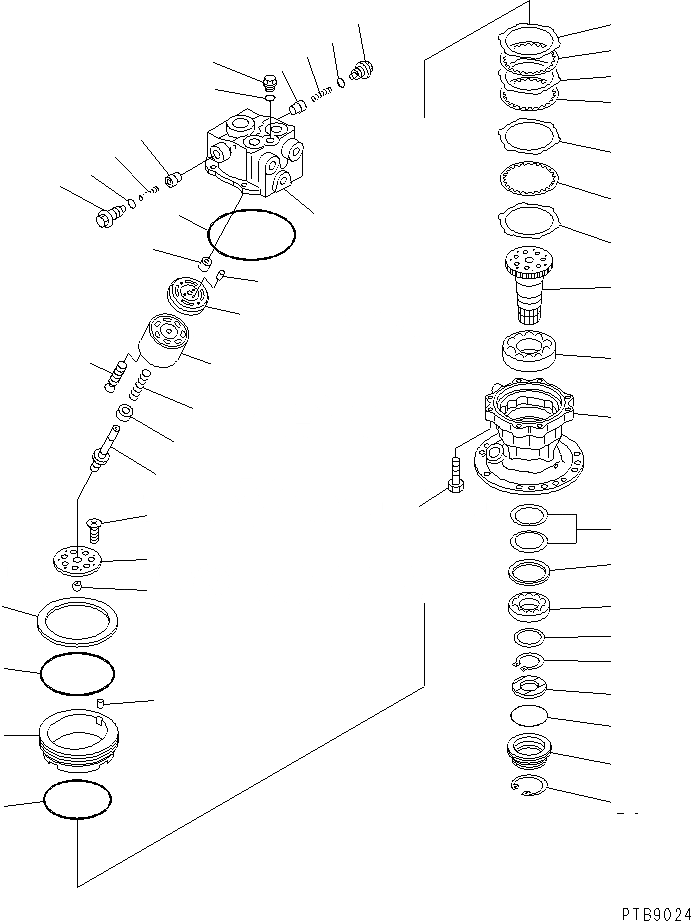

Запчасти Komatsu PC130-6 МОТОР ПОВОРОТА (/)(№-) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

706-73-01121

MOTOR ASS'Y

|1

706-73-03411

MOTOR SUB ASS'Y

1

706-73-43011

CASE

2

706-73-72560

HOUSING

3

706-73-40010

BEARING

4

706-73-42820

PIN

5

706-77-72280

PLUG

6

07002-12034

O-RING

7

706-73-72420

VALVE

8

706-73-72440

SPRING

9

706-73-72430

PLUG

10

07002-12434

O-RING

11

195-30-33190

O-RING

12

706-74-40320

BOLT

13

706-73-43860

SHAFT

14

706-74-41880

BEARING

15

706-75-40890

BEARING

16

706-73-42610

SPRING

17

706-73-42620

SEAT

18

706-73-05010

SPACER KIT

|18

SPACER¤ 3.0MM

|18

SPACER¤ 3.4MM

|18

SPACER¤ 3.8MM

19

04064-04018

RING

20

708-8D-12210

SEAL

21

706-73-42711

COVER

22

07000-02080

O-RING

23

04065-08530

RING

24

706-73-41091

BLOCK

25

706-73-42740

PLATE

26

04020-00616

PIN

27

706-73-42180

SHAFT

28

706-73-41130

RING

29

706-73-41220

BALL

30

706-73-41110

SPRING

|31

706-73-05020

RETAINER KIT

31

RETAINER

32

SCREW

33

706-73-41164

PISTON ASS'Y

34

706-73-92130

PLATE

35

706-73-92140

PLATE

36

706-75-90050

DISK

37

706-73-92180

PISTON,BRAKE

38

07000-12130

O-RING

39

07000-12145

O-RING

40

706-73-92160

SPRING
