Запчасти Komatsu PC130-6 ОСНОВН. КЛАПАН (-АКТУАТОР) (/)(№-8) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

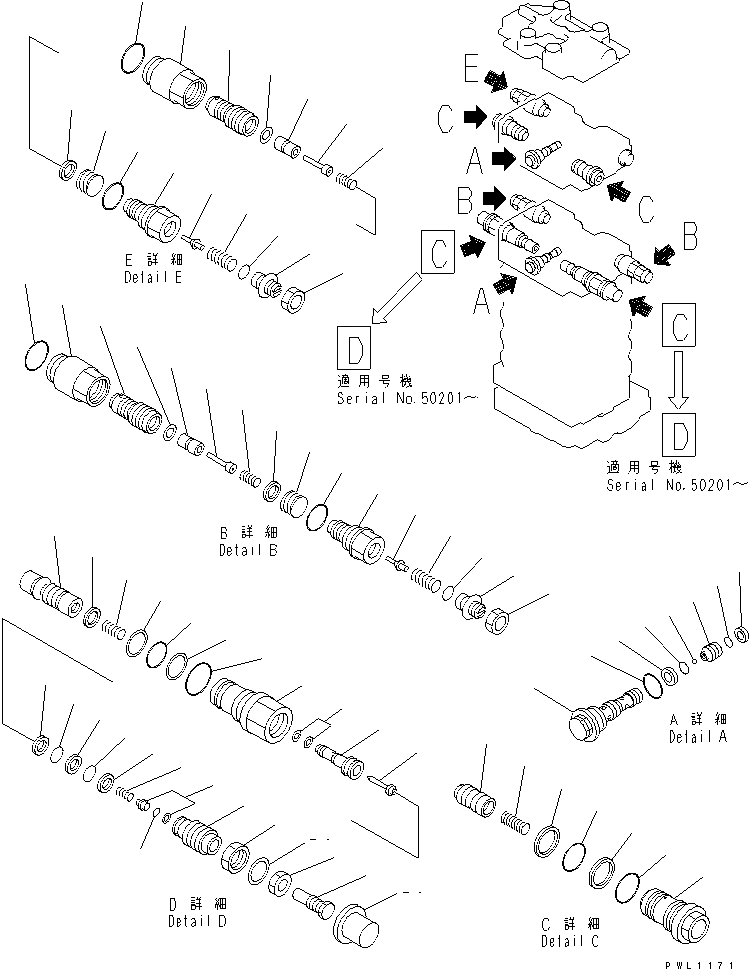

Схема запчастей Komatsu PC130-6 - ОСНОВН. КЛАПАН (-АКТУАТОР) (/)(№-8) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
30
31
32
32
33
33
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67

Артикул

Название

Примечание

Количество

|1

723-38-12105

CONTROL VALVE

|1

723-38-12104

CONTROL VALVE

|1

723-38-12102

CONTROL VALVE

|1

723-30-66200

VALVE ASS'Y

1

PLUG

2

SEAT

3

BALL

4

07002-12434

O-RING

5

07000-12012

O-RING

6

07001-02012

RING

7

07000-12010

O-RING

8

07001-02010

RING

|9

723-36-40100

VALVE ASS'Y

|9

723-36-40100

VALVE ASS'Y

9

PISTON SUB ASS'Y

10

SLEEVE

11

SPRING

12

700-80-61260

O-RING

13

700-80-61430

RING

14

07002-13034

O-RING

|15

723-36-48100

VALVE ASS'Y

15

SLEEVE

16

VALVE

17

SEAT

18

POPPET

19

PLUG

20

SCREW

21

NUT

22

NUT

23

SPRING

24

SPRING

25

PLATE

26

CAP

27

SEAL

28

SEAL

29

O-RING

30

RING

31

O-RING

32

O-RING

33

RING

34

O-RING

35

RING,BACK-UP

|36

709-70-74600

VALVE ASS'Y,SUCTION AND SAFETY

36

SLEEVE

37

SLEEVE

38

POPPET

39

PISTON

40

PLUG

41

POPPET

42

SCREW

43

SPRING

44

SPRING

45

SPRING

46

SEAL

47

SEAL

48

709-25-11390

O-RING

49

O-RING

50

O-RING

51

NUT

|52

709-70-75600

VALVE ASS'Y,SUCTION AND SAFETY

52

SLEEVE

53

SLEEVE

54

POPPET

55

PISTON

56

PLUG

57

POPPET

58

SCREW

59

SPRING

60

SPRING

61

SPRING

62

SEAL

63

SEAL

64

O-RING

65

O-RING

66

O-RING

67

NUT

Выбрано товаров: 76
