Запчасти Komatsu PC130-5S МОТОР ХОДА (/) (С HY-DASH MARK) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

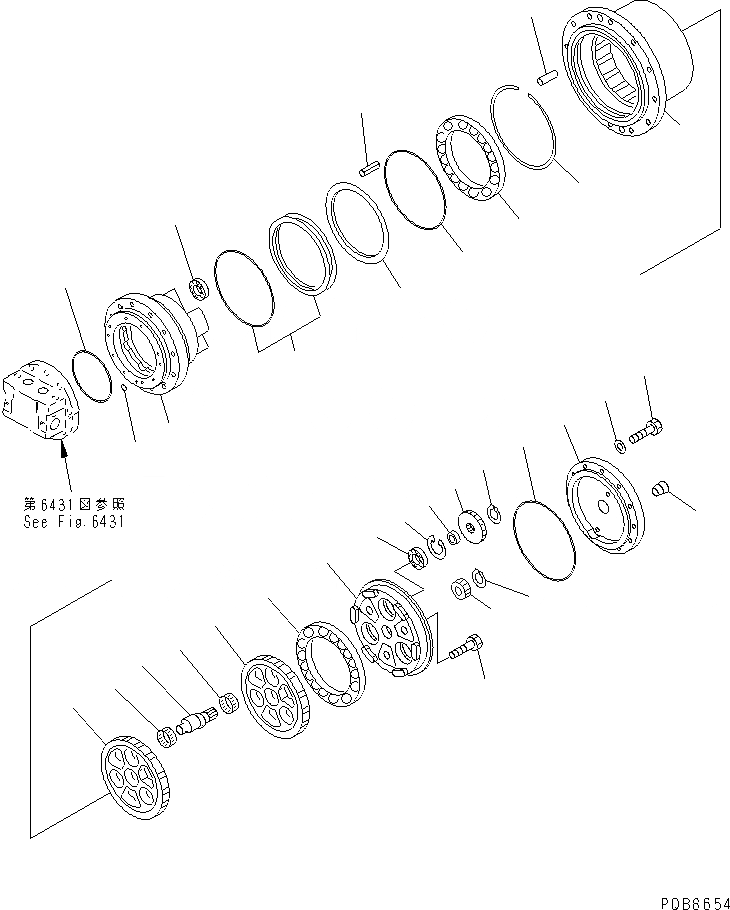

Схема запчастей Komatsu PC130-5S - МОТОР ХОДА (/) (С HY-DASH MARK) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ
1
1
2
2
3
4
5
6
7
8
8
9
10
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

Артикул

Название

Примечание

Количество

|1

203-60-56701

TRAVEL MOTOR ASS'Y

1

TZ240B1001-00

HUB

1

TZ200B1001-00

HUB

|2

TZ200B1102-03

SPINDLE KIT

2

TZ200B1132-03

SPINDLE ASS'Y

3

TZ200B1019-02

BOLT,REAMER

4

TZES100-250-A

SEAL,FLOATING (K1)

5

TZ200B1010-00

PIECE

|5

TZ150F1027-01

PIECE,DISTANCE

6

07000-15290

O-RING

|6

07000-15280

O-RING (K1)

7

TZ200B1021-00

BEARING

|8

TZ200B1104-02

RV GEAR ASS'Y

8

TZ200B1204-01

RV GEAR KIT

9

TZ200B1009-01

SHAFT,CRANK

10

TZ200B1022-00

BEARING

11

TZ200B1023-00

BEARING

12

TZ150A1020-00

SNAP RING KIT (12 KINDS)

13

TZ201B1107-01

SPUR GEAR KIT (3 PIECES)

14

TZ200B1014-01

PIECE,DISTANCE

15

04064-03515

RING,SNAP

16

TZ201B1006-00

GEAR,INPUT

17

04064-02815

RING,SNAP

18

TZ200B1017-00

PIN

19

TZ700C1016-00

RING

20

TZ200B1021-00

BEARING

21

TZ200B1008-00

COVER

22

TZGM1-2

PLUG

23

TZARP568-378-9

O-RING (K1)

24

01010-31245

BOLT

25

TZSW-M12

WASHER

26

07000-11008

O-RING (K1)

27

TZJW1516-G41-9

O-RING (K1)

28

TZJB2808-4-14

PIN

K1

TZ220B9000-00

SERVICE KIT

|K1

TZ205B9000-00

SERVICE KIT

|1

07000-15145

O-RING

|1

TZ231F2030-00

RING,BACK-UP

|1

07000-15170

O-RING

|1

TZSUN-2BG170

RING,BACK-UP

|1

TZTCN-32-52-11

SEAL,OIL

|1

07000-11009

O-RING

|1

07000-13032

O-RING

|1

07000-11006

O-RING

|1

07000-12020

O-RING

|1

07000-13032

O-RING

|1

07000-12020

O-RING

|1

07002-02034

O-RING

|1

TZES100-250-A

SEAL,FLOATING

|1

07000-15290

O-RING

|1

07000-15280

O-RING

|1

TZARP568-378-9

O-RING

|1

07000-11008

O-RING

|1

TZJW1516-G41-9

O-RING

Выбрано товаров: 54
