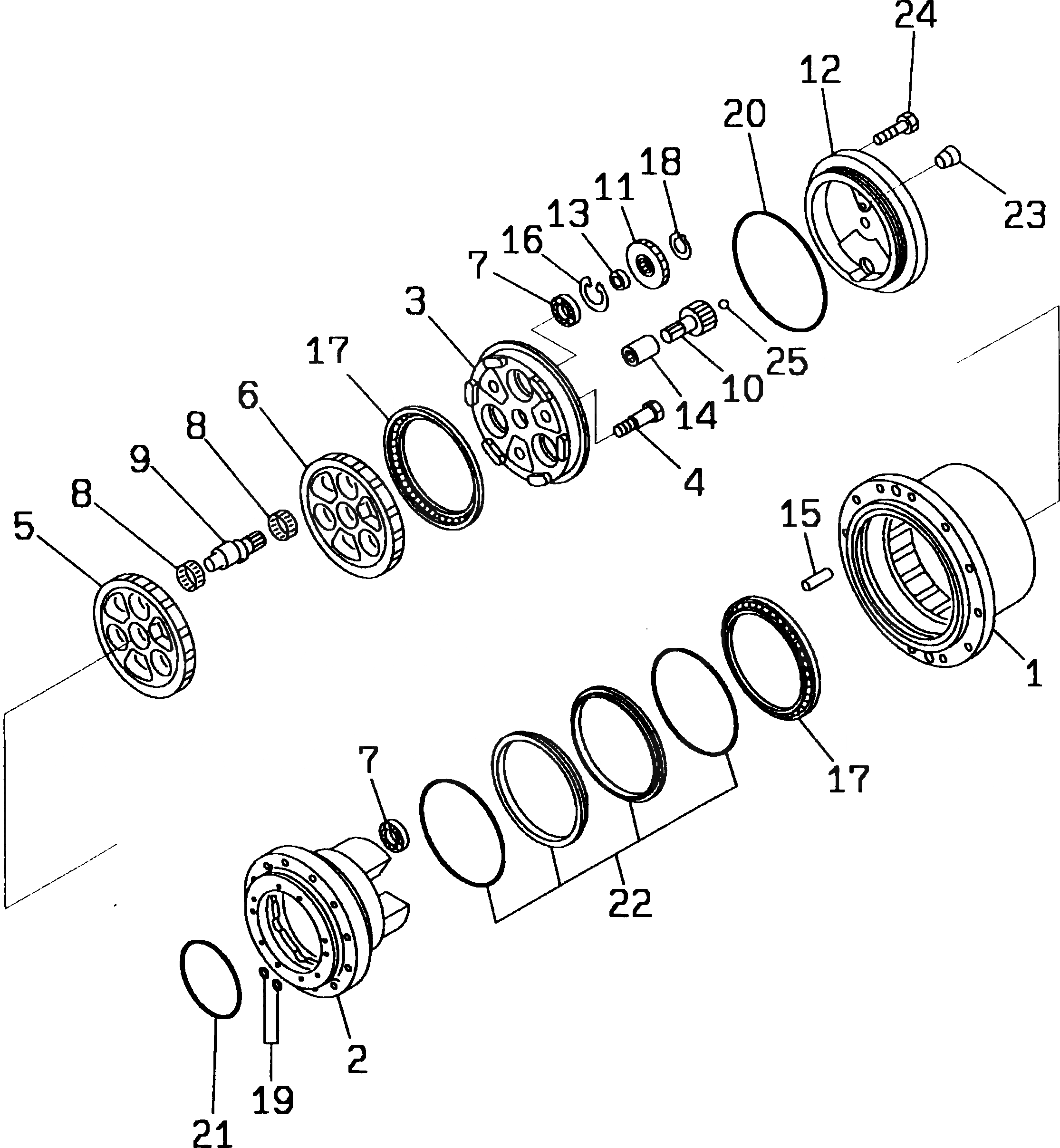

Запчасти Komatsu PC130-5K МОТОР ХОДА (/)(№K7-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

203-60-63110

TRAVEL MOTOR ASS'Y

1

TZ266B1001-00

HUB

|2

TZ263B1102-01

SPINDLE KIT

|2

TZ263B1132-05

SPINDLE ASS'Y

2

SPINDLE

3

FLANGE

4

TZ200B1019-03

BOLT,REAMER

|5

TZ263B1104-00

RV GEAR ASS'Y

|5

TZ263B1204-00

RV GEAR KIT

5

TZ263B1004-01

GEAR,(A)

6

TZ263B1005-01

GEAR,(B)

7

TZ200B1022-00

BEARING

8

TZ200B1023-00

BEARING

9

TZ200B1009-01

SHAFT,CRANK

10

TZ270B1006-00

GEAR,INPUT

|11

TZ264B1107-00

SPUR GEAR KIT,(3 SET)

11

SPUR GEAR

12

TZ266B1008-00

COVER

13

TZ200B1014-01

PIECE,DISTANCE

14

TZ269B1015-00

COUPLING

15

TZ225B1017-00

PIN

16

TZ150A1020-00

SNAP RING KIT,(12 SET)

17

TZ200B1021-01

BEARING

18

04064-03515

RING,SNAP

19

07000-11007

O-RING (K2)

20

TZARP568-378-7

O-RING (K2)

21

TZJW1516-G37-7

O-RING (K2)

22

TZES100-250-A

SEAL,FLOATING (K2)

23

TZGM1-2

PLUG

24

TZJB1176M12-32

BOLT

25

04260-00952

BALL

K2

TZ276B9000-00

SERVICE KIT

|1

07000-11007

O-RING

|1

TZARP568-378-7

O-RING

|1

TZJW1516-G37-7

O-RING

|1

TZES100-250-A

SEAL,FLOATING

|1

TZ15Z-25-42-10

SEAL,OIL

|1

TZ266B2035-00

O-RING

|1

TZJB2401-P26-9

O-RING

|1

07000-12016

O-RING

|1

07000-12018

O-RING

|1

TZ266B2039-00

O-RING

|1

07000-12010

O-RING

|1

07002-02034

O-RING

|1

07000-12011

O-RING

|1

07000-12014

O-RING

|1

07000-12020

O-RING

|1

TZJB2407T2-P14

RING,BACK-UP

|1

TZJB2407T3-P20

RING,BACK-UP
