Запчасти Komatsu PC130-5K МОТОР ХОДА (/)(№K7-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

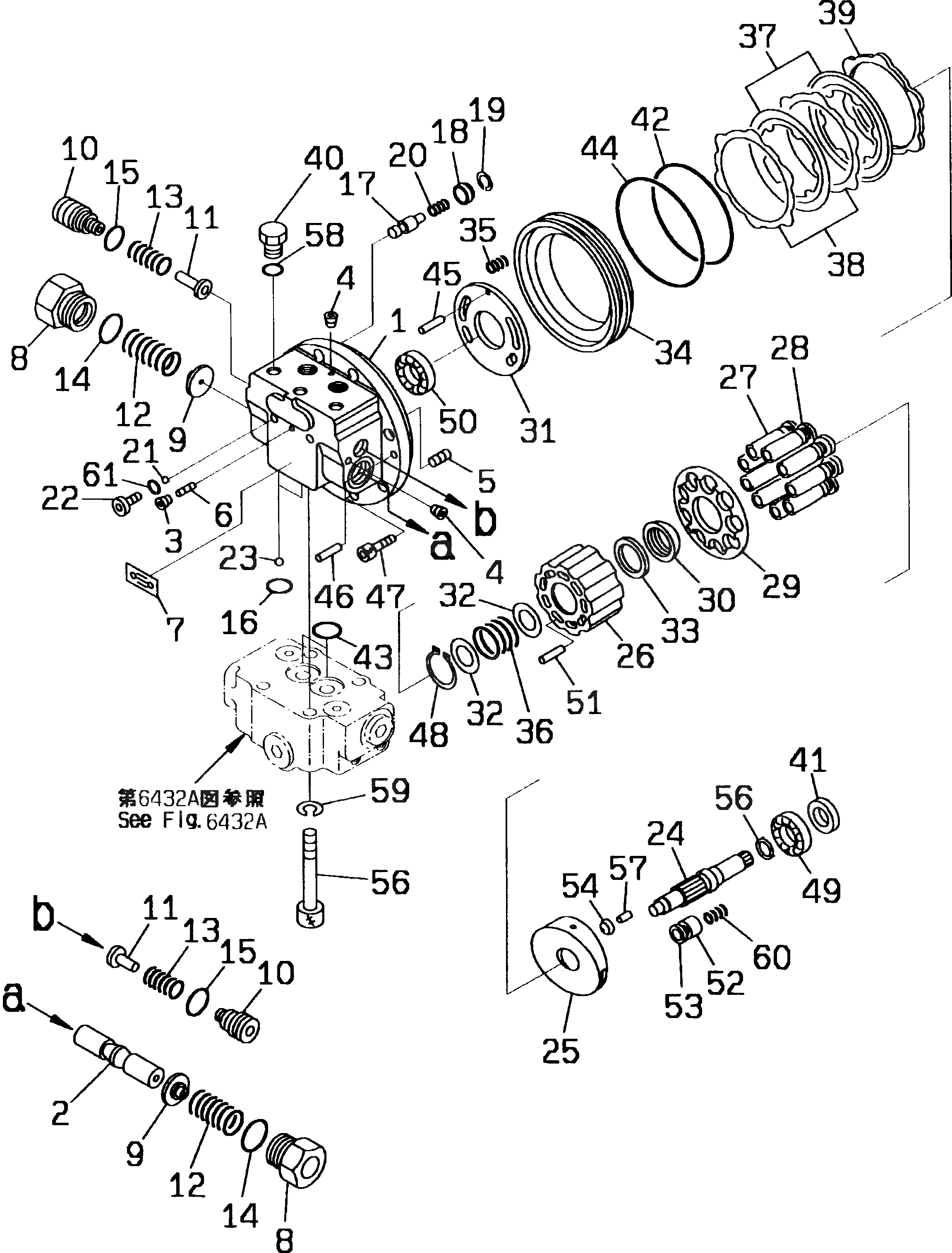

Схема запчастей Komatsu PC130-5K - МОТОР ХОДА (/)(№K7-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

Артикул

Название

Примечание

Количество

|1

203-60-63110

TRAVEL MOTOR ASS'Y

|1

TZ276B210000-J

FLANGE ASS'Y

|1

TZ276B210100-J

FLANGE KIT,REAR

1

FLANGE

2

SPOOL

3

TZGM1-8

PLUG

4

TZGDL1-16-S

PLUG

5

TZ263B2079-01

FILTER

6

TZ121F2070-00

ORIFICE

7

TZ850A0006-00

PLATE¤ NAME

8

TZ860A2051-00

PLUG

9

TZ869A2052-00

RETAINER

10

TZ860A2053-02

PLUG

11

TZ860A2054-01

VALVE

12

TZ860A2056-00

SPRING

13

TZ860A2055-01

SPRING

14

TZJB2401-P26-9

O-RING (K2)

15

07000-12016

O-RING (K2)

16

07000-12010

O-RING (K2)

17

TZ200B2073-00

VALVE

18

TZ300B2039-00

STOPPER

19

TZ300B2042-00

RING

20

TZ300B2043-01

SPRING

21

04260-00952

BALL

22

TZ512B2021-00

PLUG

23

04260-00793

BALL

24

TZ269B2002-00

SHAFT

25

TZ263B200301-J

PLATE,SWASH

26

TZ263B2004-04

BLOCK,CYLINDER

|27

TZ263B2105-00

PISTON KIT,(9 SET)

|27

PISTON ASS'Y

27

PISTON

28

SHOE

29

TZ263B2007-01

PLATE,RETAINER

30

TZ263B2008-00

BOWL,THRUST

31

TZ263B2009-01

PLATE,TIMING

32

TZ880A2010-00

WASHER

33

TZ263B2011-03

WASHER

34

TZ266B2012-00

PISTON

35

TZ800A2013-00

SPRING

36

TZ263B2093-01

SPRING

37

TZ800A2015-00

PLATE

38

TZ800A2016-00

PLATE

39

TZ263B2074-00

PLATE

40

TZ100A2021-00

PLUG

41

TZ15Z-25-42-10

SEAL,OIL (K2)

42

TZ266B2035-00

O-RING (K2)

43

07000-12018

O-RING (K2)

44

TZ266B2039-00

O-RING (K2)

45

TZJB1354-4-10

PIN

46

TZJB1354-10-25

PIN

47

01252-31030

BOLT

48

TZTH-R-42

RING,SNAP

49

TZ263B2048-00

BEARING

50

TZ263B2049-00

BEARING

51

TZ263B2098-00

PIN

|52

TZ263B2070-00

PISTON

52

PISTON

53

SHOE

54

TZ263B2076-02

PIVOT

55

TZ263B2014-00

COLLAR

56

01252-30865

BOLT

57

TZ263B2077-01

PIN

58

07002-02034

O-RING (K2)

59

TZSW-M8

WASHER

60

TZ263B2090-00

SPRING

61

07000-12011

O-RING (K2)

Выбрано товаров: 67
