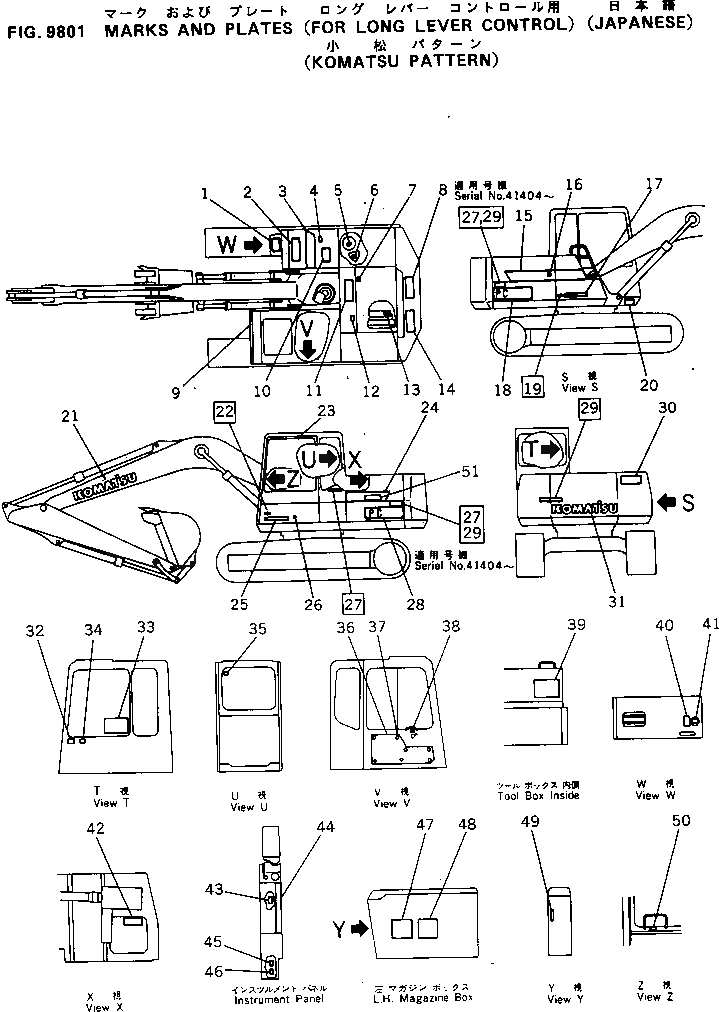

Запчасти Komatsu PC130-5 МАРКИРОВКА (ДЛЯ УДЛИНН. РЫЧАГ УПРАВЛ-Е) (ЯПОН.) (KOMATSU PATTERN №-) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

203-00-51170

SEAT,NONSKID

2

154-54-23260

SEAT,NONSKID

3

203-00-51280

PLATE¤ MARK,LINE

4

09652-01121

PLATE¤ CAUTION,FUEL

5

201-54-21940

PLATE¤ CAUTION,HYDRAULIC TANK CAP

6

09653-00100

PLATE¤ SAFETY,HYDRAULIC TANK CAP

7

09667-00100

PLATE¤ SAFETY,ENGINE COVER

8

154-54-23260

SEAT,NONSKID

9

20Y-00-11490

PLATE

10

203-00-51170

SEAT,NONSKID

11

154-54-23260

SEAT,NONSKID

12

09650-01104

PLATE¤ INSTRUCTION,RADIATOR

13

09668-00100

PLATE¤ SAFETY,RADIATOR CAP

14

154-54-23260

SEAT,NONSKID

15

203-00-51270

PLATE¤ MARK,LINE

16

203-00-31120

PLATE¤ INSTRUCTION,HYDRAULIC OIL LEVEL

17

09690-C0315

PLATE¤ MARK,KOMATSU

|17

09690-50400

PLATE¤ MARK,KOMATSU

18

203-00-51321

PLATE¤ MARK,PC130

|18

203-00-51320

PLATE¤ MARK,PC130

|18

203-00-51321

PLATE¤ MARK,PC130 (ESTRA)

|18

203-00-51330

PLATE¤ MARK,PC130 (ESTRA)

19

09694-50125

PLATE¤ MARK,SYMBOL

20

09602-01635

PLATE¤ NAME,(LIMITED SUPPLY)

|20

04418-13060

SCREW

21

09690-B0500

PLATE¤ MARK,KOMATSU

|21

203-00-51131

PLATE¤ MARK,KOMATSU

22

09694-50125

PLATE¤ MARK,SYMBOL

23

20Y-00-11350

PLATE

24

203-00-51260

PLATE¤ MARK,LINE

25

09690-C0315

PLATE¤ MARK,KOMATSU

|25

09690-50400

PLATE¤ MARK,KOMATSU

26

20Y-00-11350

PLATE

27

20Y-00-11481

PLATE¤ MARK,AVANCE

|27

201-00-61690

PLATE¤ MARK,AVANCE (ESTRA)

|27

201-00-61510

PLATE¤ MARK,AVANCE (ESTRA)

28

203-00-51321

PLATE¤ MARK,PC130

|28

203-00-51320

PLATE¤ MARK,PC130

|28

203-00-51321

PLATE¤ MARK,PC130 (ESTRA)

|28

203-00-51330

PLATE¤ MARK,PC130 (ESTRA)

29

20Y-00-11520

PLATE¤ MARK,AVANCE

|29

20Y-00-11520

PLATE¤ MARK,AVANCE

|29

201-00-61520

PLATE¤ MARK,AVANCE (ESTRA)

30

203-00-51210

PLATE¤ CAUTION,KEEP OUT OF TURNING AREA

31

09690-C0710

PLATE¤ MARK,KOMATSU

|31

203-00-41131

PLATE¤ MARK,KOMATSU

32

09699-00100

PLATE¤ CAUTION,WINDOW WASHER

33

203-00-52310

PLATE¤ OPERATING

34

203-916-5130

PLATE¤ OPERATING

|34

203-916-5730

PLATE¤ OPERATING,ISO PATTERN

|34

20Y-00-11310

PLATE¤ OPERATING,KOMATSU PATTERN

|34

203-916-5150

PLATE¤ OPERATING

|34

203-916-5130

PLATE¤ OPERATING,MITSUBISHI PATTERN

|34

203-916-5150

PLATE¤ OPERATING,SINKOU PATTERN

35

205-00-63230

PLATE¤ CAUTION,AUTO LOCK

36

20Y-54-13473

COVER

37

20Y-54-14560

CLIP ASS'Y

38

205-00-71340

PLATE¤ OPERATING,DOOR LOCK

39

203-00-56111

CHART¤ OIL

40

201-00-61340

PLATE¤ OPERATING,LOCK

41

201-00-61380

PLATE¤ OPERATING,LOCK

42

09637-01661

PLATE¤ INSTRUCTION,AIR CLEANER (SINGLE ELEMENT)

|42

09637-01161

PLATE¤ INSTRUCTION,AIR CLEANER (DOUBLE ELEMENT)

43

203-00-52260

PLATE¤ OPERATING,WINDOW WASHER

44

203-00-52220

PLATE

45

203-00-52230

PLATE¤ OPERATING,T.V.C. PROLIX

46

203-00-52240

PLATE¤ OPERATING,SWING PROLIX

47

203-00-56321

PLATE¤ DATA

|47

203-00-56320

PLATE¤ DATA

48

203-916-5720

PLATE¤ OPERATING,MULTI PATTERN

49

09685-00002

PLATE¤ OPERATING,LOCK LEVER

50

203-00-52190

PLATE¤ CAUTION,FRONT WINDOW

51

20Y-00-13190

PLATE¤ MARK,SUPER LOW-NOISE (ESTRA)
