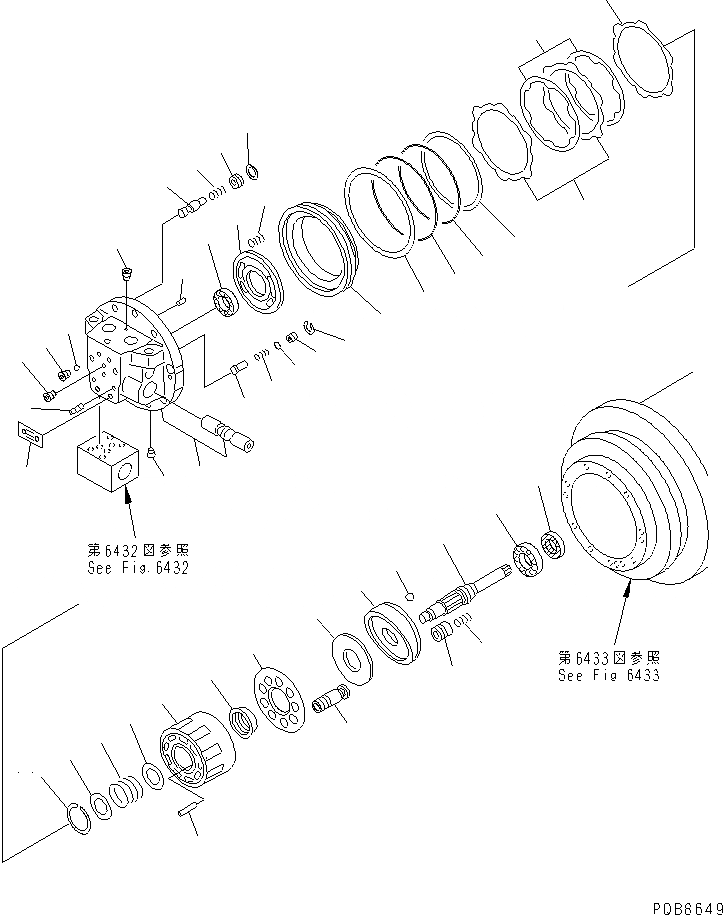

Запчасти Komatsu PC130-5 МОТОР ХОДА (/) (С HY-DASH MARK) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

203-60-56701

TRAVEL MOTOR ASS'Y

1

TZ203B210101-A

FLANGE KIT,REAR

2

TZMB700-070

PLUG

3

TZGM1-4

PLUG

4

TZGM1-8

PLUG

5

TZMB700-050

PLUG

6

TZ850A0006-00

PLATE¤ NAME

7

04260-00793

BALL

8

TZ210A7105-00

PISTON KIT (9 PIECES)

9

TZ200B2004-00

BLOCK,CYLINDER

10

TZ200B200301-C

PLATE,SWASH

11

TZ200B2032-01

PLATE

|11

TZ200B2032-00

PLATE,THRUST

12

TZ200B2007-01

PLATE

|12

TZ200B2007-00

PLATE,RETAINER

13

TZ200B2008-00

BOWL,THRUST

14

TZJB150635-328

PIN

15

TZ150A2010-00

WASHER

16

TZ430F2028-00

SPRING

17

TZIRTW-55

RING,SNAP

18

TZ200B2170-01

PISTON

19

TZ200B2074-00

PLATE

20

TZ200A2015-00

DISC

21

TZ100A2016-00

PLATE

22

TZ231F2012-00

PISTON

23

TZ100A2013-00

SPRING

24

07000-15145

O-RING (K1)

25

TZ231F2023-00

RING,BACK-UP (K1)

26

07000-15170

O-RING (K1)

27

TZSUN-2BG170

RING,BACK-UP (K1)

28

TZ200B2002-01

SHAFT

29

TZJB1501-26

BALL

30

06000-06207

BEARING

31

TZTCN-32-52-11

SEAL,OIL (K1)

32

TZ210A2009-00

PLATE,TIMING

33

TZJB1354-5-12

PIN

34

06000-06204

BEARING

35

TZ430F2019-00

VALVE

36

TZ100A2020-00

SPRING

37

07000-11009

O-RING (K1)

38

TZ100A2018-00

SEAT,VALVE

39

TZ100A2022-00

RING

40

TZ200B2073-00

VALVE

41

TZ300B2043-01

SPRING

42

TZ300B2039-00

STOPPER

43

TZ300B2042-00

RING

44

TZ200B2085-00

SPRING
